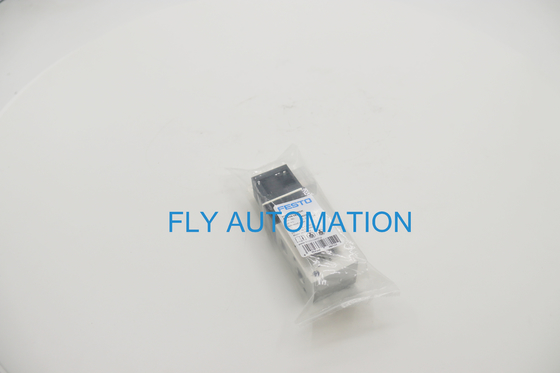

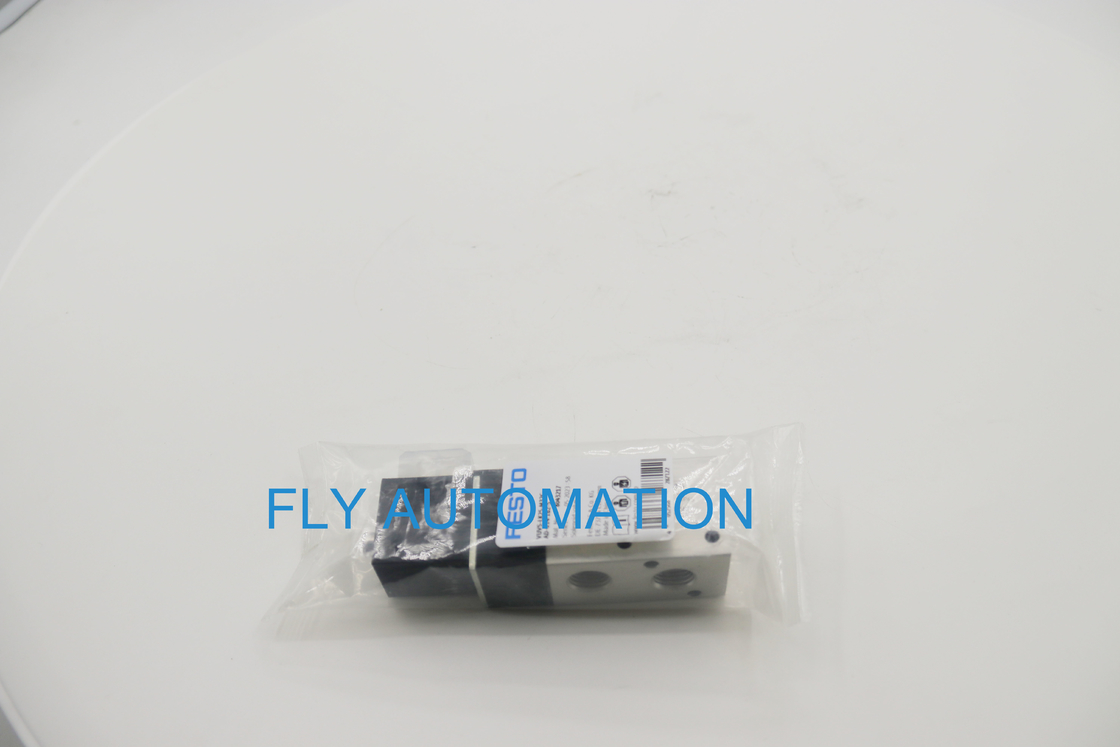

Festo Pneumatic Solenoid Valves VUVS-LK25-M32C-AD-G14-1B2-S 8043217

Festo Pneumatic Solenoid Valves VUVS-LK25-M32C-AD-G14-1B2-S 8043217

  • Festo Pneumatic Solenoid Valves VUVS-LK25-M32C-AD-G14-1B2-S 8043217
  • Festo Pneumatic Solenoid Valves VUVS-LK25-M32C-AD-G14-1B2-S 8043217
Festo Pneumatic Solenoid Valves VUVS-LK25-M32C-AD-G14-1B2-S 8043217
Product Details:
Brand Name: FESTO
Model Number: VUVS-LK25-M32C-AD-G14-1B2-S
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: USD30-50
Packaging Details: Box, Carton
Delivery Time: 7-10 working Days
Payment Terms: T/T, Western Union, MoneyGram Paypal
Supply Ability: 1000 PCS Per Week
Contact Now
Detailed Product Description
Model No: VUVS-LK25-M32C-AD-G14-1B2-S Part No: 8043217
Brand: FESTO Corrosion Resistance Class CRC: 1 - Low Corrosion Stress
Product Weight: 200 G Material Seals: HNBR NBR
Highlight:

8043217 Pneumatic Solenoid Valves

,

VUVS-LK25-M32C-AD-G14-1B2-S

,

HNBR Seals Pneumatic Solenoid Valves

Festo Solenoid valve VUVS-LK25-M32C-AD-G14-1B2-S 8043217





About product

In-line valves can be used as individual valves or manifold valves
Variable pressure zones
Wide range of mounting options



Technical data

Valve function 3/2-way, closed, monostable
Type of actuation Electric
Valve size 26.5 mm
Standard nominal flow rate 1000 l/min
pneumatic working port G1/4
Operating voltage 24V DC
Design Piston gate valve
Type of reset Pneumatic spring
Degree of protection IP65 With plug socket To IEC 60529
Nominal size 6.7 mm
Exhaust-air function With flow control option
Sealing principle Soft
Mounting position optional
Manual override Detenting Non-detenting
Type of piloting Pilot actuated
Pilot air supply Internal
Flow direction Non-reversible
Symbol 00991183
lap Positive overlap
Corrosion resistance class CRC 1 - Low corrosion stress
LABS (PWIS) conformity VDMA24364 zone III
Product weight 200 g
Pneumatic connection, port 1 G1/4
Pneumatic connection, port 2 G1/4
Pneumatic connection, port 3 G1/4
Note on materials RoHS-compliant
Material seals HNBR NBR
Material housing Wrought aluminium alloy
Material piston slide Wrought aluminium alloy



The Core Range off ers you the best value for your automation tasks.



There are so many models ,please contact with me.
