| Brand Name: | FESTO |

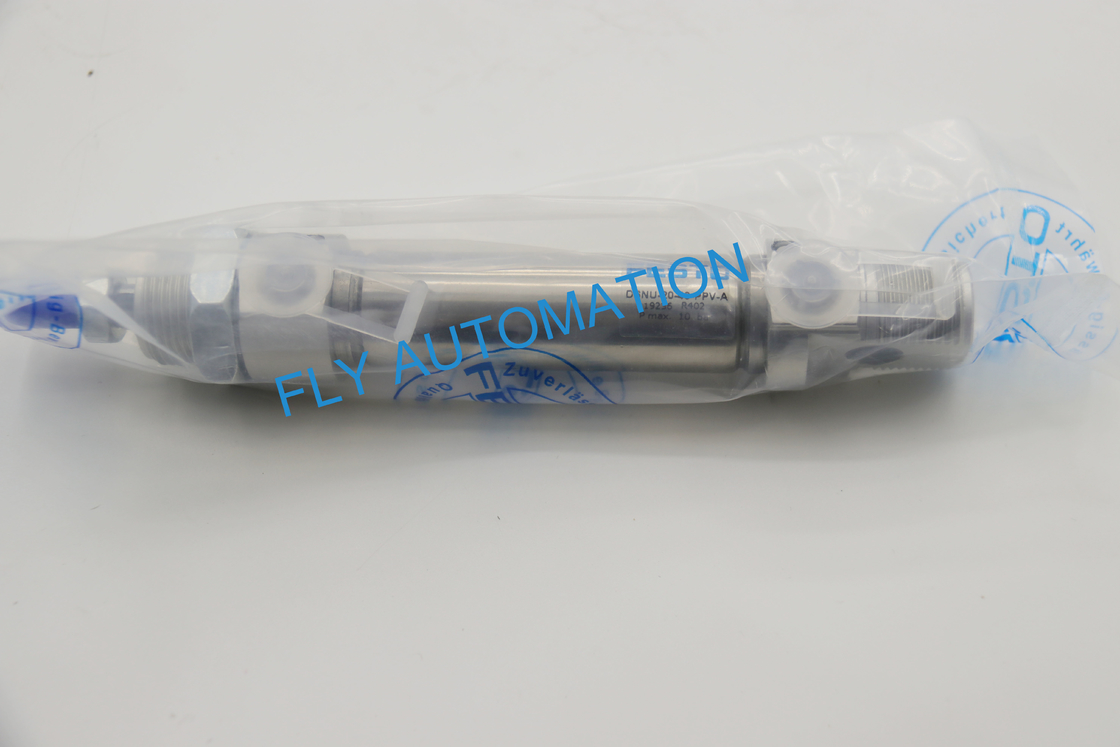

| Model Number: | DSNU-20-40-PPV-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD25-35 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 pcs per month |
| Part No: | 19236 | Brand: | FESTO |
|---|---|---|---|
| Type: | DSNU-20-40-PPV-A | Piston Rod Thread: | M8 |
| Cleanroom Class: | Class 6 According To ISO 14644-1 | Corrosion Resistance Class CRC: | 2 - Moderate Corrosion Stress |
| High Light: | Pneumatic ISO Cylinder Corrosion Resistant,Pneumatic Air Cylinders 19236,DSNU-20-40-PPV-A |
||
About product
Technical Data
| Stroke | 40 mm |
| Piston diameter | 20 mm |
| Piston rod thread | M8 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Cylinder barrel |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 15 mm |
| Basic weight for 0 mm stroke | 186.8 g |
| Additional weight per 10 mm stroke | 7.2 g |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy Colourless anodised |
| Material seals | NBR TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | High-alloy stainless steel |
Delivery
If the products we have in store, we will send it out ASAP after payment.
If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
Also we can send by your delivery acount if you want.
We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.
There are so many types ,please contact with me!
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
