| Place of Origin: | China |
| Brand Name: | FESTO |

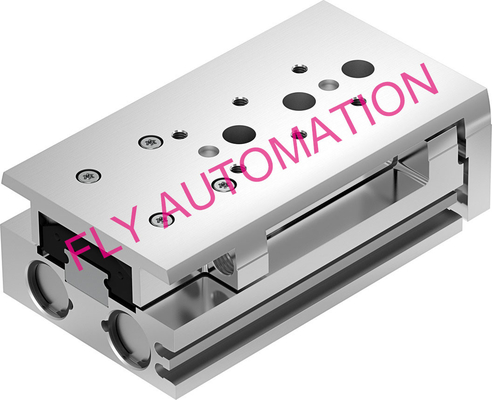

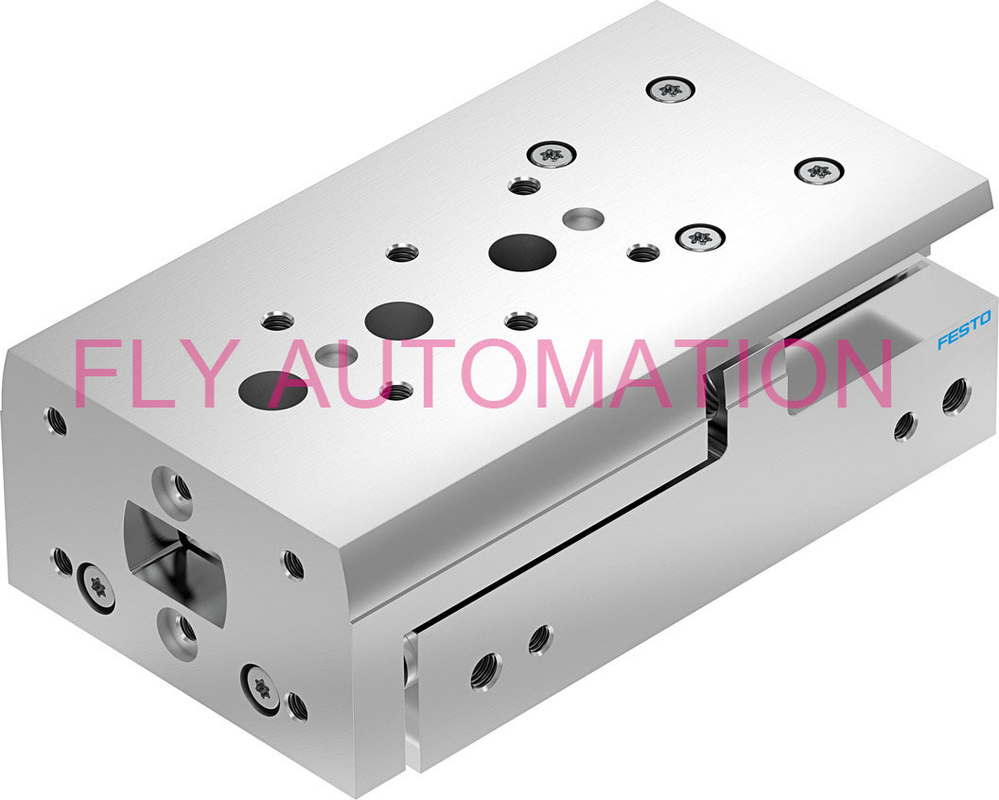

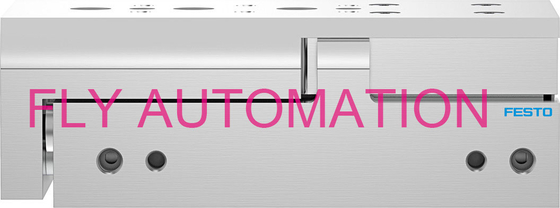

| Model Number: | DGST-12-50-E1A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD400-450 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 10-15working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 20 pcs per month |
| Type: | DGST-12-50-E1A | Part No: | 8078850 |
|---|---|---|---|
| Brand: | FESTO | GTIN: | 4052568446819 |
| Ambient Temperature: | -10°C-60°C | Cushioning Length: | 1.1 Mm |
| High Light: | Mini Slide Pneumatic Cylinder Festo,8078850 Pneumatic Air Cylinders,1.1mm Mini Pneumatic Cylinder |
||
About Product
1.Slide and yoke plate as a single component, ensuring very high rigidity, precision and alignment.
2.All connections on one side.
3.Proximity switches can be integrated, so there are no projecting parts.
4.Both end positions can be sensed from one side.
5.Two sensor slots for sensing.
Technical Data
| Stroke | 50 mm |
| Piston diameter | 12 mm |
| Operating mode, drive unit | Yoke |
| Cushioning | Elastomer cushioning, double-sided, stroke not adjustable |
| Mounting position | optional |
| Guide | Recirculating ball bearing guide |
| Design | Twin piston Yoke Piston rod Slide |
| Position detection | Via proximity switch |
| Symbol | 00991249 |
| Max. speed | 0.5 m/s |
| Repetition accuracy | <= 0.3 mm |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C-60°C |
| Cushioning length | 1.1 mm |
| Product weight | 611 g |
| Type of mounting | With through-hole |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | HNBR |
| Material guide | POM TPE-E High-alloy steel |
| Material housing | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
Other size as follow
| Type | Order no | Weight(g) | Price |
| DGST-12-10-E1A | 8078846 | 391 | USD400-450 |
| DGST-12-20-E1A | 8078847 | 456 | USD400-450 |
| DGST-12-30-E1A | 8078848 | 501 | USD400-450 |
| DGST-12-40-E1A | 8078849 | 563 | USD400-450 |
| DGST-12-50-E1A | 8078850 | 611 | USD400-450 |
| DGST-12-80-E1A | 8078851 | 776 | USD400-450 |
| DGST-12-100-E1A | 8078852 | 988 | USD400-450 |
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.
Sectional view
