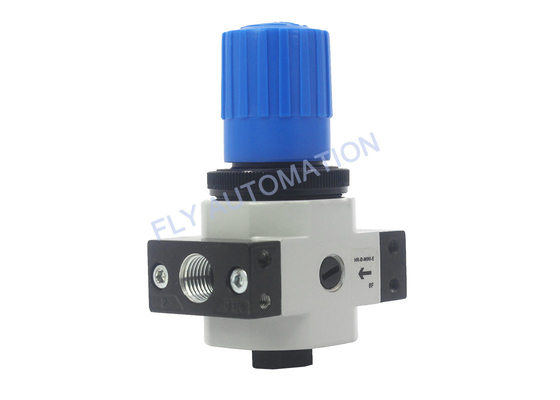

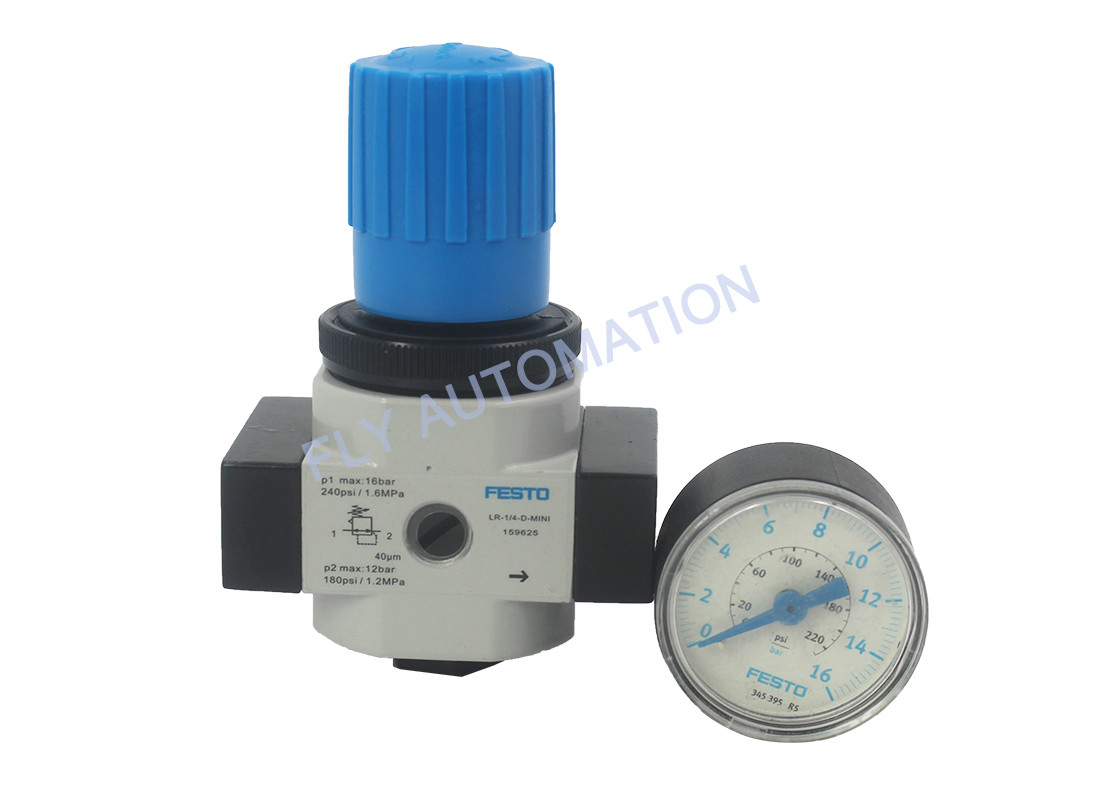

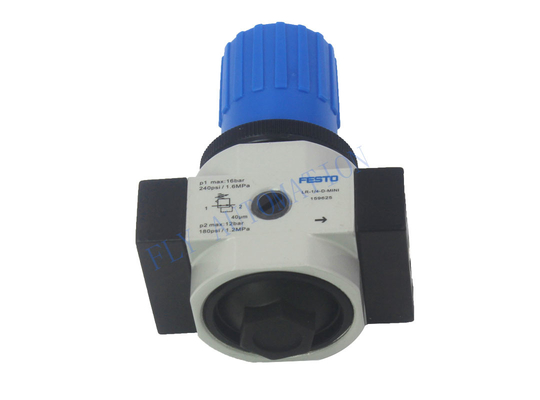

FESTO LR-1/4-D-MINI Pressure Reducing Valve Air Source Treatment

FESTO LR-1/4-D-MINI Pressure Reducing Valve Air Source Treatment

  • FESTO LR-1/4-D-MINI Pressure Reducing Valve Air Source Treatment
  • FESTO LR-1/4-D-MINI Pressure Reducing Valve Air Source Treatment
  • FESTO LR-1/4-D-MINI Pressure Reducing Valve Air Source Treatment
  • FESTO LR-1/4-D-MINI Pressure Reducing Valve Air Source Treatment
FESTO LR-1/4-D-MINI Pressure Reducing Valve Air Source Treatment
Product Details:
Place of Origin: EU
Brand Name: FESTO
Certification: ISO Standand
Model Number: LR-1/4-D-MINI
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time: 7-10 working Days
Payment Terms: T/T, Western Union, MoneyGram Paypal
Supply Ability: 1000 PCS Per Week
Contact Now
Detailed Product Description
Size: Mini Series: D
Actuator Lock: Rotary Knob With Detent Mounting Position: Optional
Product Weight: 350 G Pneumatic Connection, Port 1/2: G1/4
High Light:

FESTO MINI Pressure Reducing Valve

,

LR-1/4-D-MINI Pressure Reducing Valve

,

G1/4 Mini Pressure Reducing Valve

FESTO LR-1/4-D-MINI Pressure Reducing Valve Air Source Treatment

Feature Value
Size Mini
Series D
Actuator lock Rotary knob with detent
Mounting position optional
Design Directly actuated diaphragm regulator
Controller function Output pressure constant
Via primary pressure compensation
With secondary venting
Symbol 00991538
Pressure gauge (ANALOG) or Pressure display (DIGITAL) With pressure gauge
Operating pressure 1 bar ... 16 bar
Pressure regulation range 0.5 bar ... 12 bar
Max. pressure hysteresis 0.2 bar
Standard nominal flow rate 1500 l/min
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC 2 - Moderate corrosion stress
Air purity class at output Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Media temperature -10 °C ... 60 °C
Ambient temperature -10 °C ... 60 °C
Product weight 350 g
Type of mounting Front panel mounting In-line installation With accessories
Pneumatic connection, port 1 G1/4
Pneumatic connection, port 2 G1/4
Note on materials RoHS-compliant
Material sub-base Die-cast zinc
Material seals NBR
Material housing Die-cast zinc

FESTO LR-1/4-D-MINI Pressure Reducing Valve Air Source Treatment

FESTO LR-1/4-D-MINI Pressure Reducing Valve Air Source TreatmentFESTO LR-1/4-D-MINI Pressure Reducing Valve Air Source Treatment



After-sales clause:
One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems
happen, we hope to solve the problems with buyer through friendly in the following ways:
1, If it is quality problem, buyer can submit argue within 15days after receiving the goods,
buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one year (not included those
damages coursed by shipping or Man-made damaged ). A 15% restocking fee is
assessed for any products returned in "used" condition. And then we will send a new
product to buyer and pay for the resend shipping cost.
2) If the goods (total price including shipping is less than 10USD) has quality problems, we
will resend a new product in buyer next order; if buyer don't plan to make a new order in
the near term, buyer can pay the resend shipping cost and ask to resend a new product. If
there is an issue with the products, please contact us– we will solve it as soon as we get
your email.
