| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |

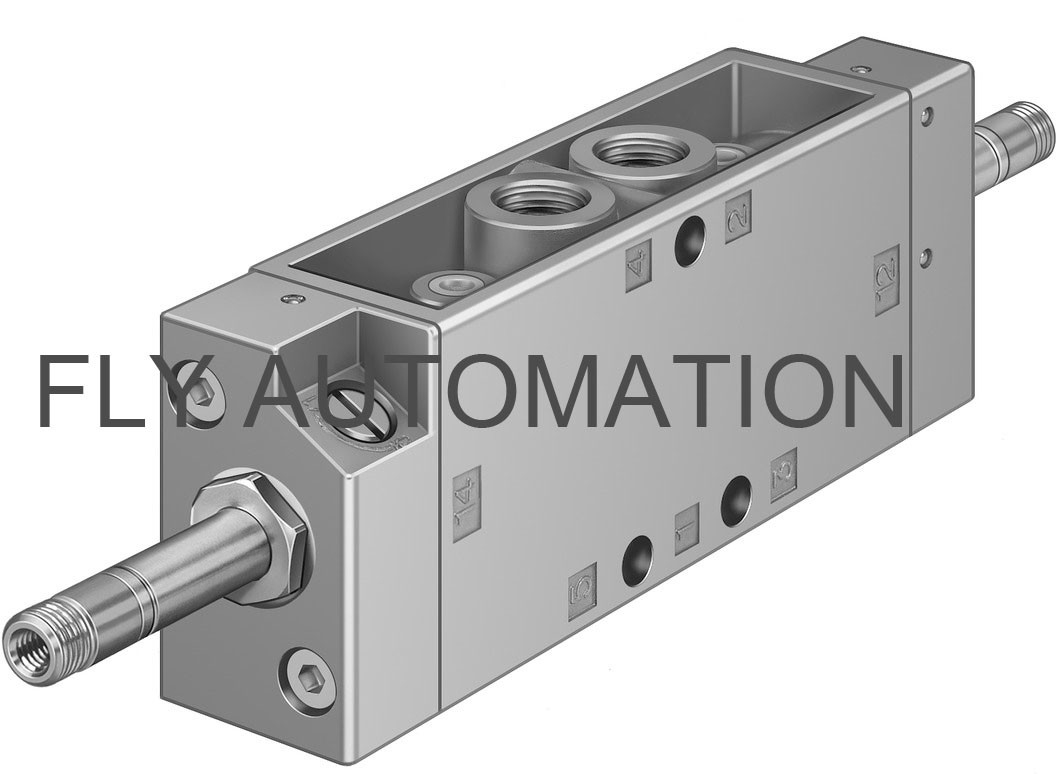

| Model Number: | JMFH-5-1/8 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD100-120 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100 pcs per month |
| Model: | JMFH-5-1/8 | Order No: | 8820 |
|---|---|---|---|
| Brand: | FESTO | Product Weight: | 260 G |
| High Light: | JMFH-5-1/8 8820 GTIN4052568001667 Pneumatic Solenoid Valves,Metal Pneumatic Solenoid Valves,26mm Air Operated Solenoid Valve |
||
About product
1.Sturdy and reliable.
2.Poppet valve.
3.All-metal version.
4.Very sturdy poppet valve concept for all 3/2 and 5/2-way valves.
5.Pneumatic or electrical actuation with F solenoid coil.
6.With flow rates of up to 7500 l/min.
Technical Data
| Valve function | 5/2 double solenoid |
| Type of actuation | Electric |
| Construction width | 26 mm |
| Standard nominal flow rate | 600 l/min |
| pneumatic working port | G1/8 |
| Operating voltage | Via solenoid coil, must be ordered separately |
| Design | Poppet seat |
| Approval | c UL us - Recognized (OL) |
| Degree of protection | IP65 |
| Nominal size | 5 mm |
| Grid dimension | 27 mm |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | Detenting |
| Type of piloting | Pilot actuated |
| Flow direction | Non-reversible |

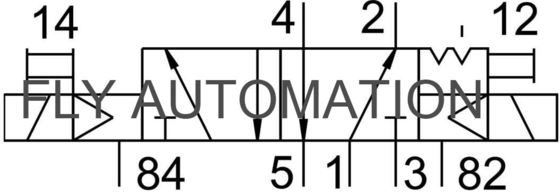

| Symbol | 00995754 |
| lap | Underlap |
| Max. switching frequency | 25 Hz |
| Switching time reversal | 10 ms |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20°C-60°C |
| Media temperature | -10°C-60°C |
| Ambient temperature | -5°C-40°C |
| Product weight | 260 g |
| Electrical connection | Via F coil, to be ordered separately |
| Type of mounting | Either: On manifold rail With through-hole |
| Pilot exhaust port 82 | M5 |
| Pilot exhaust port 84 | M5 |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 2 | G1/8 |
| Pneumatic connection, port 3 | G1/8 |
| Pneumatic connection, port 4 | G1/8 |
| Pneumatic connection, port 5 | G1/8 |
| Note on materials | RoHS-compliant |
| Material seals | NBR TPE-U(PU) |
| Material housing | Die-cast aluminium |
Other size as follow
| Type | Order no | Price |
| JMFH-5-1/8 | 8820 | USD100-120 |
| JMFH-5-1/4 | 10410 | USD100-120 |
| JMFH-5-1/2 | 10166 | USD100-120 |
| JMFH-5-1/8-S | 14 008 | USD100-120 |
| JMFH-5-1/4-S | 14 009 | USD100-120 |
| JMFH-5-1/2-S | 35 548 | USD100-120 |
Sectional view
There are so many products, welcome to enquire!
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
