| Place of Origin: | China |
| Brand Name: | FESTO |

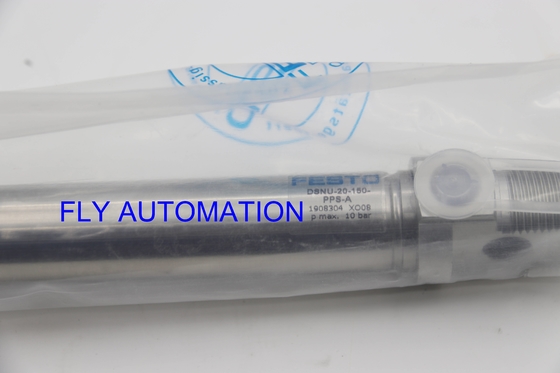

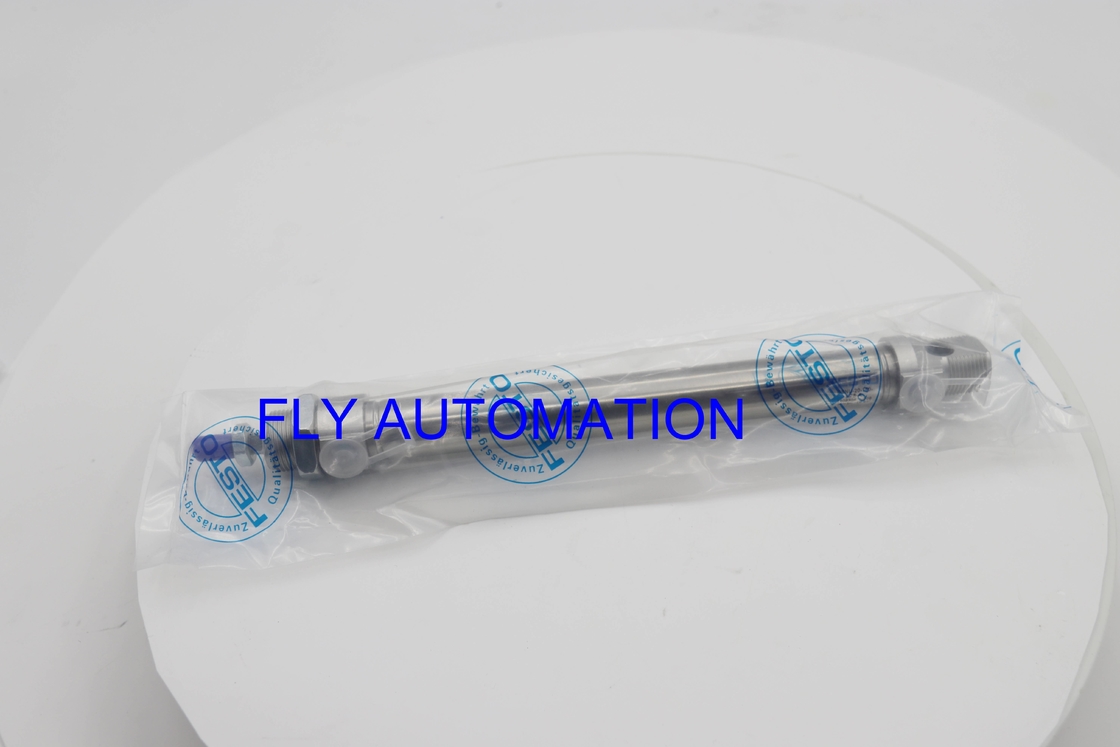

| Model Number: | DSNU-20-150-PPS-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD30-50 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500 pcs per month |
| Part No: | 1908304 | Type: | DSNU-20-150-PPS-A |
|---|---|---|---|
| Brand: | FESTO | Piston Diameter: | 20mm |
| Stroke: | 150 Mm | Color: | Silver |
| High Light: | 1908304 Pneumatic Air Cylinders,ISO Pneumatic Cylinder,20mm Pneumatic Piston Cylinder |
||
About product
1.Good running performance and long service life.
2.The basic versions conform to ISO 6432, variants are based on these standards.
3.The drive has self-adjusting end-position cushioning.
4.Small to medium loads.
5.Low to medium speeds.
6.Medium impact energies.
7.No adjustment required.
8.Saves time.
9.Powerful.
Technical Data
| Stroke | 150 mm |
| Piston diameter | 20 mm |
| Piston rod thread | M8 |
| Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | optional |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Cylinder barrel |
| Variants | Piston rod at one end |
| Operating pressure | 0.1 MPa ... 1 MPa |
| Operating pressure | 1 bar ... 10 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 15 mm |
| Basic weight for 0 mm stroke | 186.8 g |
| Additional weight per 10 mm stroke | 7.2 g |
| Type of mounting | With accessories |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy Colourless anodised |
| Material seals | NBR TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | High-alloy stainless steel |
Operating and environmental conditions
