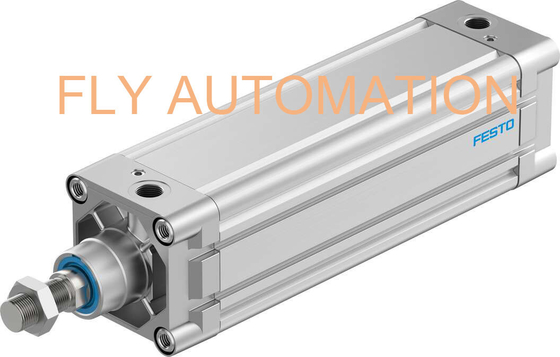

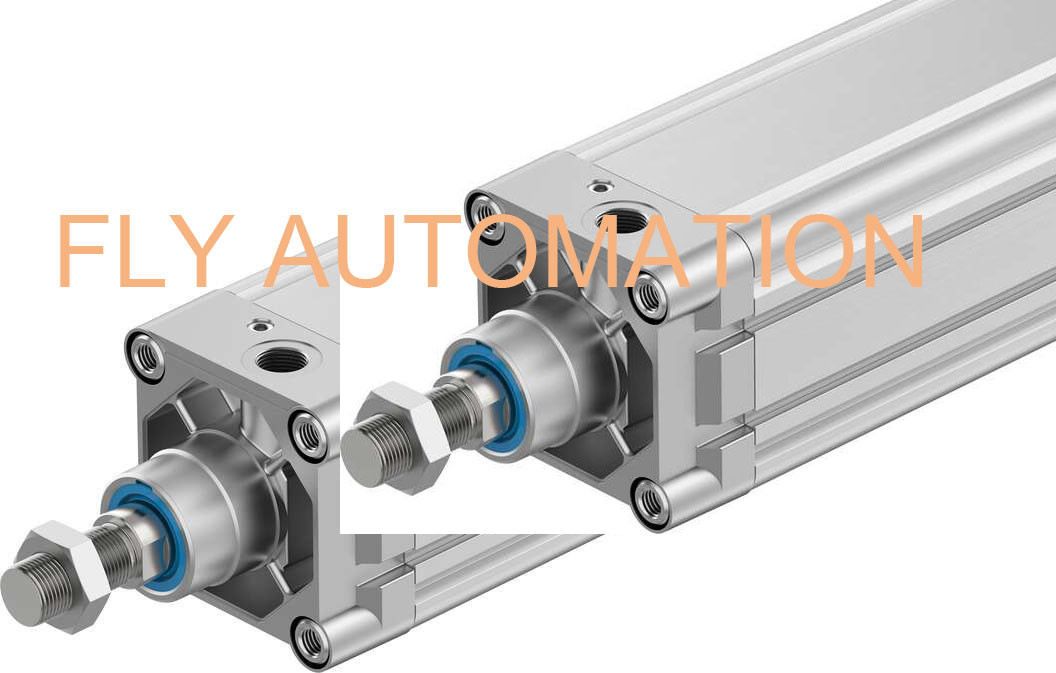

FESTO ISO Pneumatic Air Cylinders DNC-80-100-PPV-A 163437 GTIN4052568134495

Product Details:

Place of Origin:	China
Brand Name:	FESTO
Model Number:	DNC-80-100-PPV-A

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	EXW USD80-100
Packaging Details:	plastic bag, carton，OPP bag
Delivery Time:	10-15working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	50 pcs per month

Contact Now

Detailed Product Description

Type:

DNC-80-100-PPV-A

Part No:

163437

Brand:

FESTO

GTIN:

4052568134495

High Light:

163437 Pneumatic Air Cylinders

Pneumatic Air Cylinders DNC-80-100-PPV-A

Pneumatic Cushioning Compact Cylinder

FESTO ISO cylinder DNC-80-100-PPV-A 163437 GTIN4052568134495 Pneumatic Air Cylinders

Name: FESTO ISO Pneumatic Air Cylinders DNC-80-100-PPV-A 163437 GTIN4052568134495
Brand: FESTO
SKU: DNC-80-100-PPV-A
Price: 80 USD
Availability: InStock
Rating: 4.9 (178 reviews)

About product

1.The widest range of variants on the market offers the ideal cylinder DNC for any application.

2.An extensive range of accessories enables the cylinder to be installed virtually anywhere.

3.The modern, consistent design saves up to 11% more space compared to ordinary standards-based cylinders, providing a significantly more compact system structure.

Technical Data

Stroke	100 mm
Piston diameter	80 mm
Piston rod thread	M20x1.5
Cushioning	Pneumatic cushioning, adjustable at both ends
Mounting position	optional
Conforms to standard	ISO 15552
Piston-rod end	Male thread
Design	Piston Piston rod Profile barrel
Position detection	Via proximity switch
Symbol	00991235
Variants	Piston rod at one end
Mode of operation	Double-acting
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C-80°C
Cushioning length	32 mm
Basic weight for 0 mm stroke	2790 g
Additional weight per 10 mm stroke	106 g
Type of mounting	Via female thread With accessories
Pneumatic connection	G3/8
Note on materials	RoHS-compliant
Material cover	Die-cast aluminium Coated
Material seals	TPE-U(PU)
Material piston rod	High-alloy steel
Material cylinder barre	lWrought aluminium alloy Smooth anodised

Other size as below

Type	Order no	Weight(g)	Price
DNC-80-25-PPV-A	163433	3055	USD80-100
DNC-80-40-PPV-A	163434	3214	USD80-100
DNC-80-50-PPV-A	163435	3320	USD80-100
DNC-80-80-PPV-A	163436	3638	USD80-100
DNC-80-100-PPV-A	163437	3850	USD80-100
DNC-80-125-PPV-A	163438	4115	USD80-100
DNC-80-160-PPV-A	163439	4486	USD80-100
DNC-80-200-PPV-A	163440	4910	USD80-100
DNC-80-250-PPV-A	163441	5440	USD80-100
DNC-80-320-PPV-A	163442	6182	USD80-100
DNC-80-400-PPV-A	163443	7030	USD80-100
DNC-80-500-PPV-A	163444	8090	USD80-100

The standards-based cylinder DNC can be ordered either using a fixed part number and order reference or using the modular product system. The type codes listed above represent the standards-based cylinders DNC with fixed part number and order reference only. Variants can only be ordered using the modular product system.

There are so many kinds. Hurry to call me!
