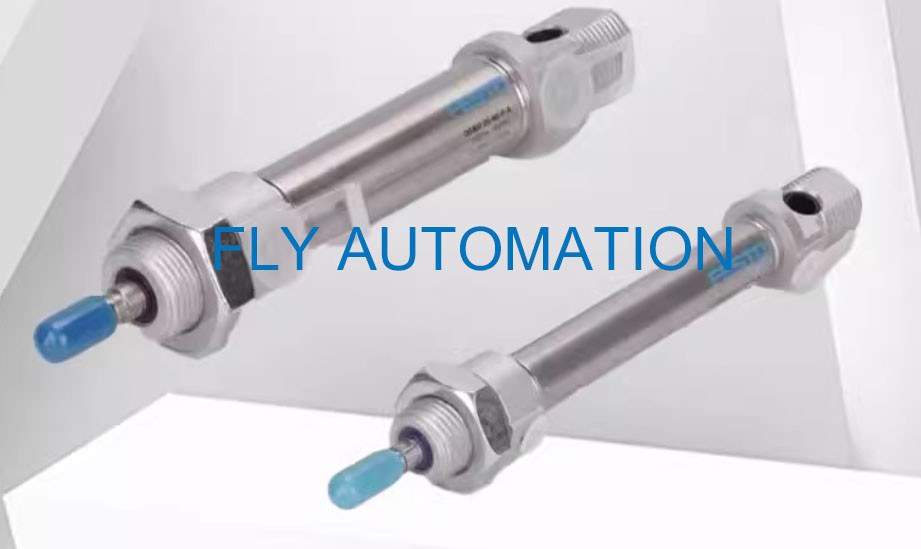

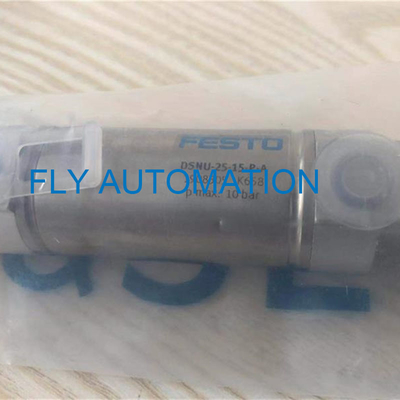

FESTO ISO Cylinder Pneumatic Air Cylinders DSNU-25-15-P-A 1908305

FESTO ISO Cylinder Pneumatic Air Cylinders DSNU-25-15-P-A 1908305

  • FESTO ISO Cylinder Pneumatic Air Cylinders DSNU-25-15-P-A 1908305
  • FESTO ISO Cylinder Pneumatic Air Cylinders DSNU-25-15-P-A 1908305
FESTO ISO Cylinder Pneumatic Air Cylinders DSNU-25-15-P-A 1908305
Product Details:
Brand Name: FESTO
Model Number: DSNU-25-15-P-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD40-50
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 pcs per month
Contact Now
Detailed Product Description
Type: DSNU-25-15-P-A Brand: FESTO
Part No: 1908305 Piston Diameter: 25mm
Piston Rod Thread: M10x1.25 Corrosion Resistance Class CRC: 2 - Moderate Corrosion Stress
Highlight:

1908305 Pneumatic Air Cylinders

,

ISO Festo Air Cylinders

FESTO ISO cylinder DSNU-25-15-P-A 1908305 Pneumatic Air Cylinders

About product

Extensive range of accessories makes it possible to install the cylinder virtually anywhere

Cylinder barrel made of stainless steel

Bearing and end caps made of wrought aluminium alloy

Color:Silver

Cleanroom class:Class 6 according to ISO 14644-1



Technical Data

Stroke 15 mm
Piston diameter 25 mm
Piston rod thread M10x1.25
Cushioning Elastic cushioning rings/plates at both ends
Piston-rod end Male thread
Design Piston Piston rod Cylinder barrel
Symbol 00991217
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cleanroom class Class 6 according to ISO 14644-1
Ambient temperature -20°C-80°C
Basic weight for 0 mm stroke 238 g
Additional weight per 10 mm stroke 11 g
Pneumatic connection G1/8
Note on materials RoHS-compliant
Material seals NBR TPE-U(PU)
Material piston rod High-alloy stainless steel
Material cylinder barrel High-alloy stainless steel



There are so many models ,please contact with me.



General technical data

FESTO ISO Cylinder Pneumatic Air Cylinders DSNU-25-15-P-A 1908305
