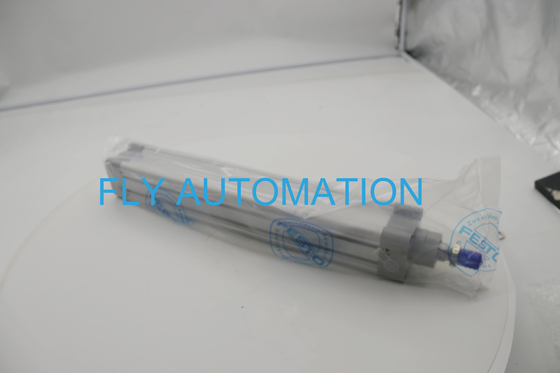

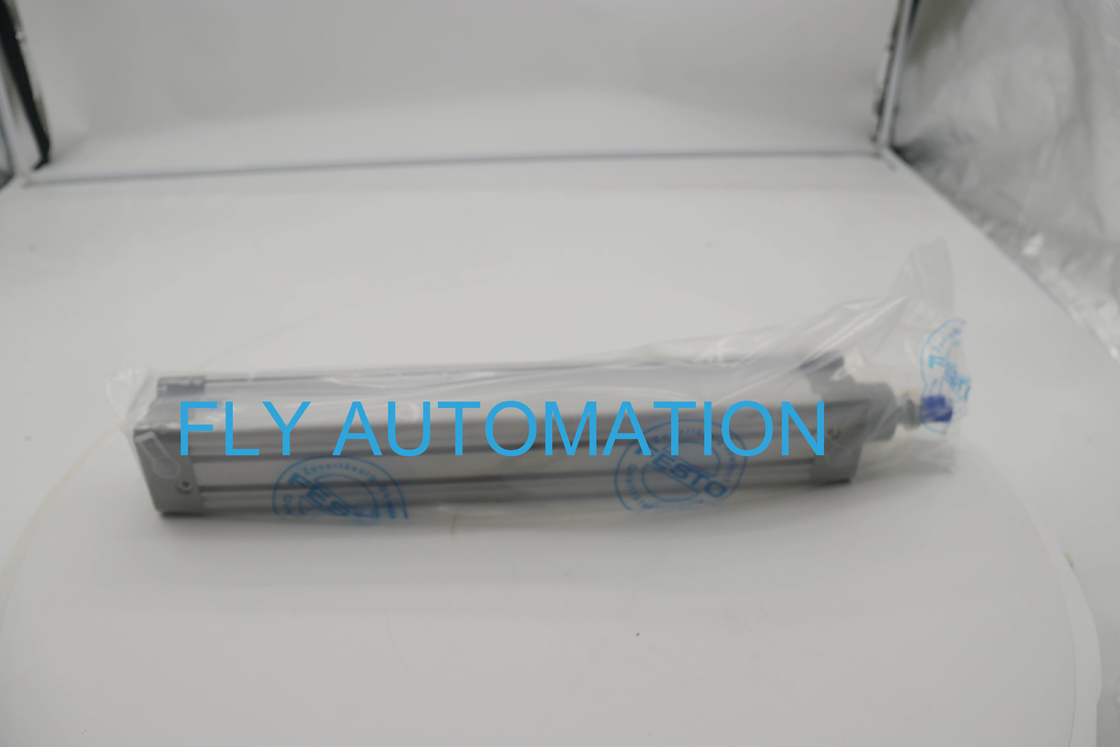

FESTO ISO Cylinder Pneumatic Air Cylinders DSBC-50-500-PPVA-N3 1366959

FESTO ISO Cylinder Pneumatic Air Cylinders DSBC-50-500-PPVA-N3 1366959

  • FESTO ISO Cylinder Pneumatic Air Cylinders DSBC-50-500-PPVA-N3 1366959
  • FESTO ISO Cylinder Pneumatic Air Cylinders DSBC-50-500-PPVA-N3 1366959
FESTO ISO Cylinder Pneumatic Air Cylinders DSBC-50-500-PPVA-N3 1366959
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DSBC-50-500-PPVA-N3
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD50-60
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 900pcs per month
Contact Now
Detailed Product Description
Brand: FESTO Part No: 1366959
Type: DSBC-50-500-PPVA-N3 Stroke: 500 Mm
Piston Diameter: 50 Mm Material Collar Screws: Galvanised Steel
Highlight:

1366959 Pneumatic Air Cylinders

,

Pneumatic Air ISO Cylinder

FESTO ISO cylinder DSBC-50-500-PPVA-N3 1366959 Pneumatic Air Cylinders

About product

Cushioning piston material:POM

Mounting position:optional

Piston rod thread:M16x1.5

Wide range of variants provides high level of flexibility

The variants can be configured according to individual needs using a modular product system



Technical Data

Stroke 500mm
Piston diameter 50 mm
Piston rod thread M16x1.5
Cushioning Pneumatic cushioning, adjustable at both ends
Mounting position optional
Conforms to standard ISO 15552
Piston-rod end Male thread
Design Piston Piston rod Profile barrel
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cleanroom class Class 6 according to ISO 14644-1
Ambient temperature -20°C-80°C
Cushioning length 22 mm
Basic weight for 0 mm stroke 1190 g
Additional weight per 10 mm stroke 56 g
Pneumatic connection G1/4
Note on materials RoHS-compliant
Material cover Die-cast aluminium, coated
Material piston seal TPE-U(PU)
Material piston Wrought aluminium alloy
Material piston rod High-alloy steel
Material piston rod wiper TPE-U(PU)
Buffer seal material TPE-U(PU)
Cushioning piston material POM
Material cylinder barrel Smooth-anodised wrought aluminium alloy
Material nut Galvanised steel
Material bearing POM
Material collar screws Galvanised steel



Variants from the modular product system

FESTO ISO Cylinder Pneumatic Air Cylinders DSBC-50-500-PPVA-N3 1366959



There are so many models ,please contact with me !
