| Brand Name: | FESTO |
| Model Number: | DSBG-200-200-PPVA-N3 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD400-500 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 300 pcs per month |

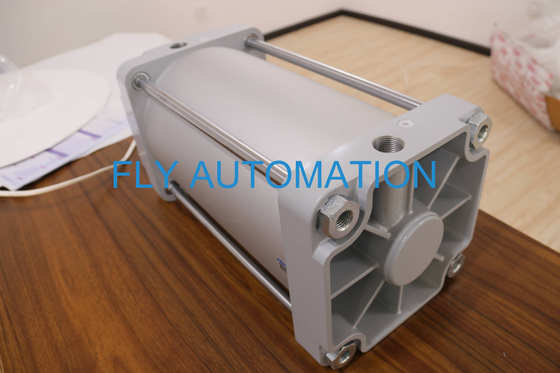

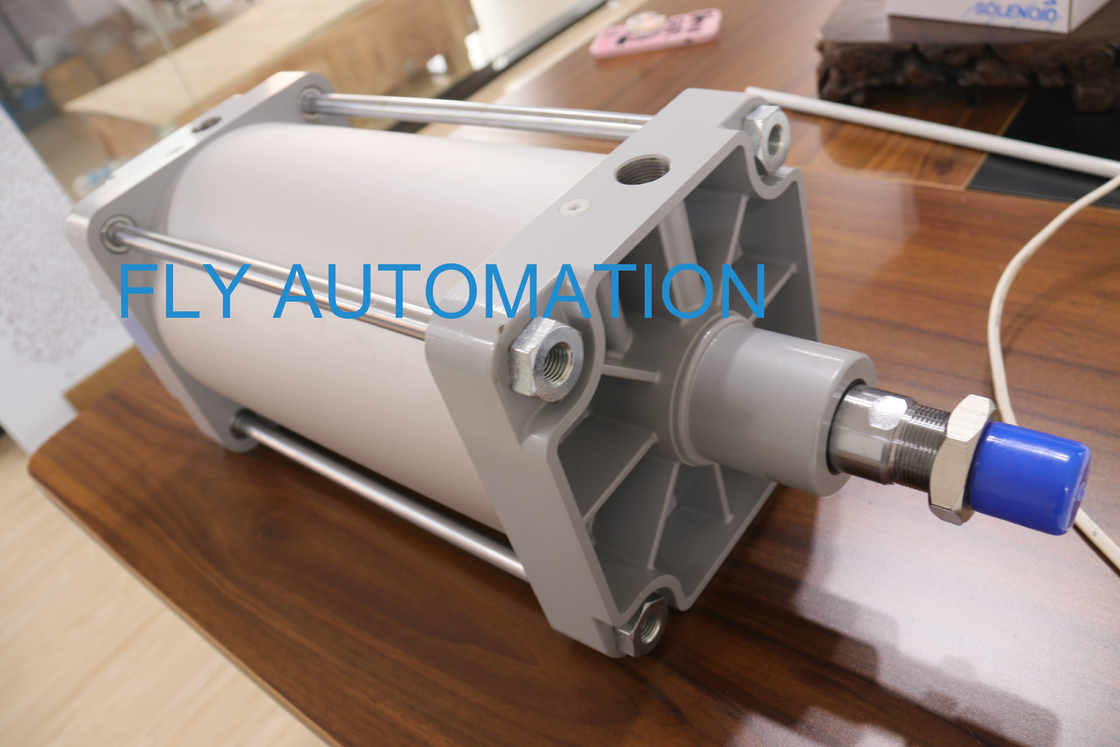

| Type: | DSBG-200-200-PPVA-N3 | Brand: | FESTO |
|---|---|---|---|
| Part No: | 2390146 | Piston Diameter: | 200 Mm |
| Piston Rod Thread: | M36x2 | Symbol: | '00991235 |
| High Light: | 2390146 Pneumatic Air Cylinders,Piston Rod ISO Cylinder,200mm Pneumatic Air Cylinders |
||
About product
Excellent flexibility thanks to the wide range of variants
Conforms to standard:ISO 15552
The variants can be configured according to individual needs using a modular product system
Technical data
| Stroke | 200mm |
| Piston diameter | 200 mm |
| Piston rod thread | M36x2 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Tie rod Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 00991235 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 48 mm |
| Cushioning length, return stroke | 48 mm |
| Product weight | 20413 g |
| Type of mounting | Either: Via female thread With accessories |
| Pneumatic connection | G3/4 |
| Note on materials | RoHS-compliant |
| Material cover | Cast aluminium, coated |
| Material piston seal | NBR |
| Material piston | Cast aluminium |
| Material piston rod | High-alloy steel |
| Material piston rod wiper | NBR |
| Buffer seal material | TPE-U(PU) |
| Cushioning piston material | POM |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Material nut | Galvanised steel |
| Material bearing | Metal polymer compound |
| Material collar nut | Galvanised steel |
| Material tie rod | High-alloy steel |
Operating and environmental conditions
There are so many models ,please contact with me.
