| Place of Origin: | China |
| Brand Name: | FESTO |

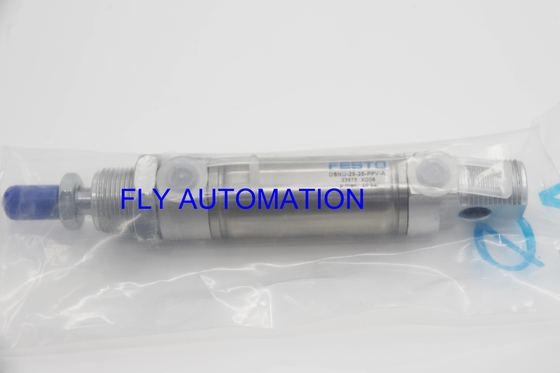

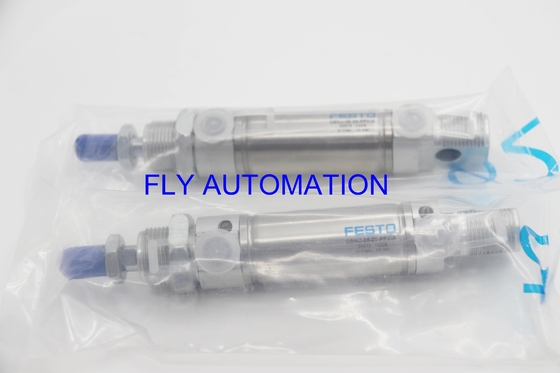

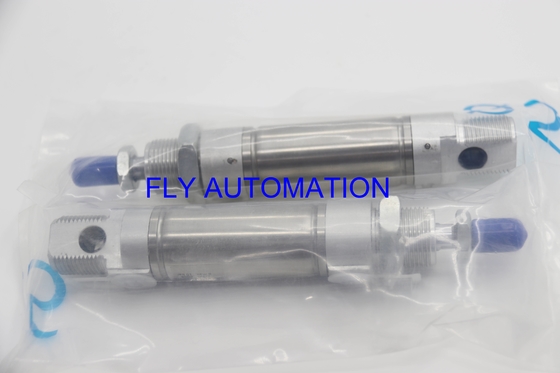

| Model Number: | DSNU-25-25-PPV-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD20-30 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 pcs per month |
| Part No: | 33975 | Brand: | FESTO |
|---|---|---|---|
| Type: | DSNU-25-25-PPV-A | Piston Diameter: | 25mm |
| Stroke: | 25 Mm | Color: | Silver |
| High Light: | Pneumatic Festo ISO Cylinder,33975 Festo ISO Cylinder,DSNU-25-25-PPV-A |
||
About product
1.Good running performance and long service life.
2.Extensive range of accessories makes it possible to install the cylinder virtually anywhere.
3.The basic versions conform to ISO 6432, variants are based on these standards.
Technical Data
| Stroke | 25 mm |
| Piston diameter | 25 mm |
| Piston rod thread | M10x1.25 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | CETOP RP 52 P ISO 6432 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 00991235 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Ambient temperature | -20 °C ... 80 °C |
| Cushioning length | 17 mm |
| Basic weight for 0 mm stroke | 238 g |
| Additional weight per 10 mm stroke | 11 g |
| Type of mounting | With accessories |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy Colourless anodised |
| Material seals | NBR TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | High-alloy stainless steel |
General technical data
A wide range of products with excellent prices. Please contact me!
