Name: FESTO ISO Cylinder DSNU-25-250-PPV-A 19252 Pneumatic Air Cylinders
Brand: FESTO
SKU: DSNU-25-250-PPV-A
Price: 25 USD
Availability: InStock
Rating: 4.8 (113 reviews)

Home Products Pneumatic Air Cylinders

FESTO ISO Cylinder DSNU-25-250-PPV-A 19252 Pneumatic Air Cylinders

Product Details:

Brand Name:	FESTO
Model Number:	DSNU-25-250-PPV-A

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	EXW USD25-35
Packaging Details:	plastic bag, carton，OPP bag
Delivery Time:	10-12 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1200 pcs per month

Contact Now

Detailed Product Description

Type:	DSNU-25-250-PPV-A	Part No:	19252
Brand:	FESTO	Conforms To Standard:	CETOP RP 52 P ISO 6432
Design:	Piston Piston Rod Cylinder Barrel	Symbol:	'00991235
High Light:	19252 Pneumatic Air Cylinders , DSNU-25-250-PPV-A , Stainless Steel Piston Rod ISO Cylinder

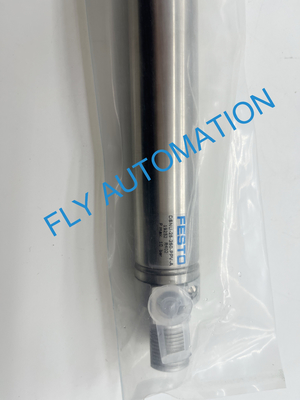

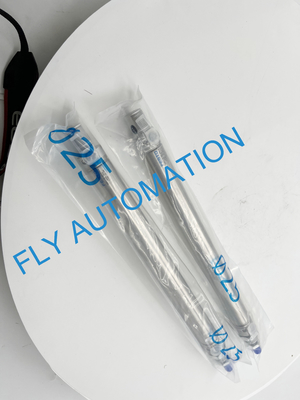

FESTO ISO cylinder DSNU-25-250-PPV-A 19252 Pneumatic Air Cylinders

About product

Stroke:250 mm

Piston diameter:25 mm

Stainless steel piston rod

Good running performance and long service life

Piston rod with male and female thread

Technical Data

Stroke	250 mm
Piston diameter	25 mm
Piston rod thread	M10x1.25
Cushioning	Pneumatic cushioning, adjustable at both ends
Mounting position	optional
Conforms to standard	CETOP RP 52 P ISO 6432
Piston-rod end	Male thread
Design	Piston Piston rod Cylinder barrel
Position detection	Via proximity switch
Symbol	00991235
Variants	Piston rod at one end
Mode of operation	Double-acting
Corrosion resistance class CRC	2 - Moderate corrosion stress
Cleanroom class	Class 6 according to ISO 14644-1
Ambient temperature	-20°C-80°C
Cushioning length	17 mm
Basic weight for 0 mm stroke	238 g
Additional weight per 10 mm stroke	11 g
Type of mounting	With accessories
Pneumatic connection	G1/8
Note on materials	RoHS-compliant
Material cover	Wrought aluminium alloy Colourless anodised
Material seals	NBR TPE-U(PU)
Material piston rod	High-alloy stainless steel
Material cylinder barrel	High-alloy stainless steel

With the Festo Core Range, we have selected the most important products and functions from our broad product catalogue, and added the quickest delivery.

Competitive Advantage

Our product features: Our Services Guarantee:

1) Competitive price 1) Prompt respond (Reply with 24 hours)

2) Good quality 2) Free Samples (Customer pay for the delivery cost)

3) Professional Packaging, 3) Registration support.

4) Produce according to Customers’ instruction 4) Photos/videos are available during production.

5) None delay shipment

5) Loading inspection, and send loading photos before shipment.

There are so many models,please contact with me.
