| Brand Name: | FESTO |
| Model Number: | DSNU-25-200-PPV-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD20-30 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 10-12 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1500 pcs per month |
| Brand: | FESTO | Type: | DSNU-25-200-PPV-A |
|---|---|---|---|
| Part No: | 19251 | Ambient Temperature: | -20°C-80°C |
| Weight: | 458 G | Color: | Silver |
| High Light: | 19251 Pneumatic Air Cylinders,DSNU-25-200-PPV-A,Male Thread FESTO ISO Cylinder |
||

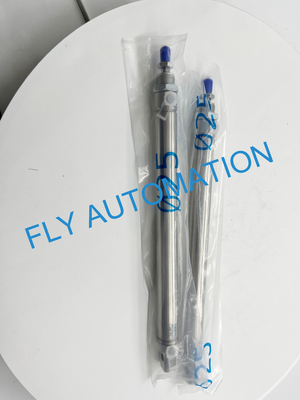

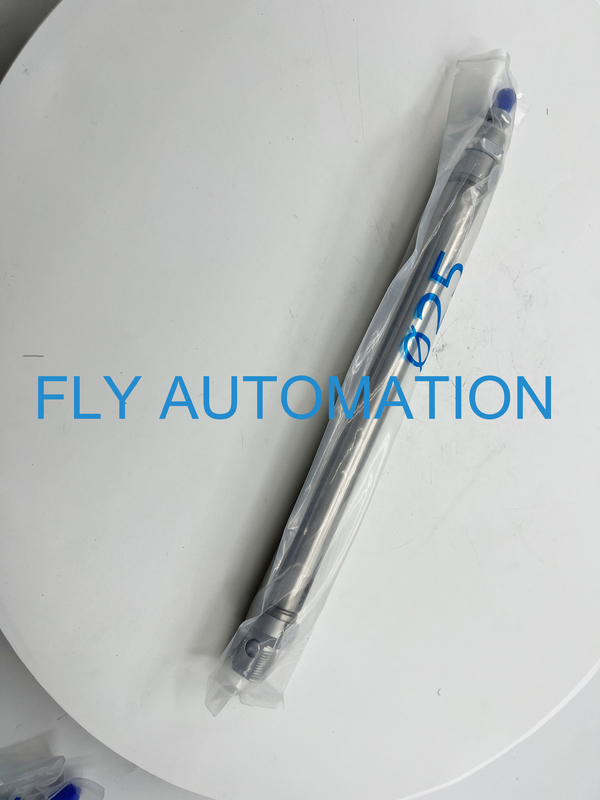

FESTO ISO cylinder DSNU-25-200-PPV-A 19251 Pneumatic Air Cylinders
About product
Technical Data
| Stroke | 200 mm |
| Piston diameter | 25 mm |
| Piston rod thread | M10x1.25 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | CETOP RP 52 P ISO 6432 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 00991235 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 17 mm |
| Basic weight for 0 mm stroke | 238 g |
| Additional weight per 10 mm stroke | 11 g |
| Type of mounting | With accessories |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy Colourless anodised |
| Material seals | NBR TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | High-alloy stainless steel |
There are so many models,please contact with me.
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
