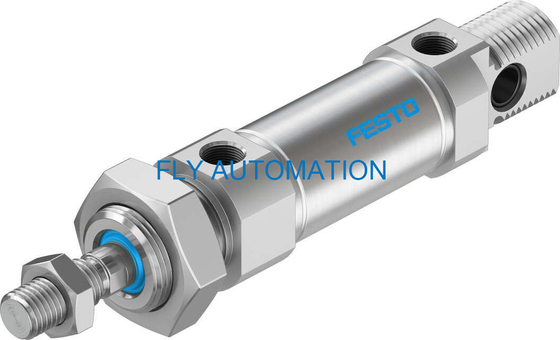

FESTO ISO Cylinder DSNU-25-10-P-A 19218 Pneumatic Air Cylinders

FESTO ISO Cylinder DSNU-25-10-P-A 19218 Pneumatic Air Cylinders

  • FESTO ISO Cylinder DSNU-25-10-P-A 19218 Pneumatic Air Cylinders
  • FESTO ISO Cylinder DSNU-25-10-P-A 19218 Pneumatic Air Cylinders
FESTO ISO Cylinder DSNU-25-10-P-A 19218 Pneumatic Air Cylinders
Product Details:
Brand Name: FESTO
Model Number: DSNU-25-10-P-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD40-50
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 pcs per month
Contact Now
Detailed Product Description
Type: DSNU-25-10-P-A Brand: FESTO
Part No: 19218 Mode Of Operation: Double-acting
Ambient Temperature: -20°C-80°C Weight: 250 G
Highlight:

19218 Pneumatic Air Cylinders

,

DSNU-25-10-P-A

,

FESTO ISO Compact Air Cylinders

FESTO ISO cylinder DSNU-25-10-P-A 19218 Pneumatic Air Cylinders

About product

Stainless steel piston rod

Good running performance and long service life

Piston rod with male and female thread

Mode of operation:Double-acting

Note on materials: RoHS-compliant



Technical Data

Stroke 10 mm
Piston diameter 25 mm
Piston rod thread M10x1.25
Piston-rod end Male thread
Symbol 00991217
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Basic weight for 0 mm stroke 238 g
Additional weight per 10 mm stroke 11 g
Pneumatic connection G1/8
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy Colourless anodised
Material seals NBR TPE-U(PU)
Material piston rod High-alloy stainless steel
Material cylinder barrel High-alloy stainless steel



With the Festo Core Range, we have selected the most important products and functions from our broad product catalogue, and added the quickest delivery.

The Core Range offers you the best value for your automation tasks.

There are so many type ,please call me immediately!





Attention

1.Before you endorse the parcel, please do open the package, and check out whether the items are damaged during the shipping process.
If so, please do refuse to sign for the parcel, the courier will send back the package to our company. Otherwise we are not responsible for this...
2.Any order is welcome. we will give discounts and combined shipping costs for you if you order more or mix order. If you have any questions.
please feel free to contact us.
