| Brand Name: | FESTO |
| Model Number: | DSBC-63-70-PPVA-N3 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD100-120 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1500pcs per month |
| Type: | DSBC-63-70-PPVA-N3 | Brand: | FESTO |
|---|---|---|---|
| Part No: | 2125493 | Piston Rod Thread: | M16x1.5 |
| Position Detection: | Via Proximity Switch | LABS (PWIS) Conformity: | VDMA24364-B1/B2-L |
| High Light: | Alloy Steel FESTO ISO Cylinder,2125493 Pneumatic Air Cylinders |
||

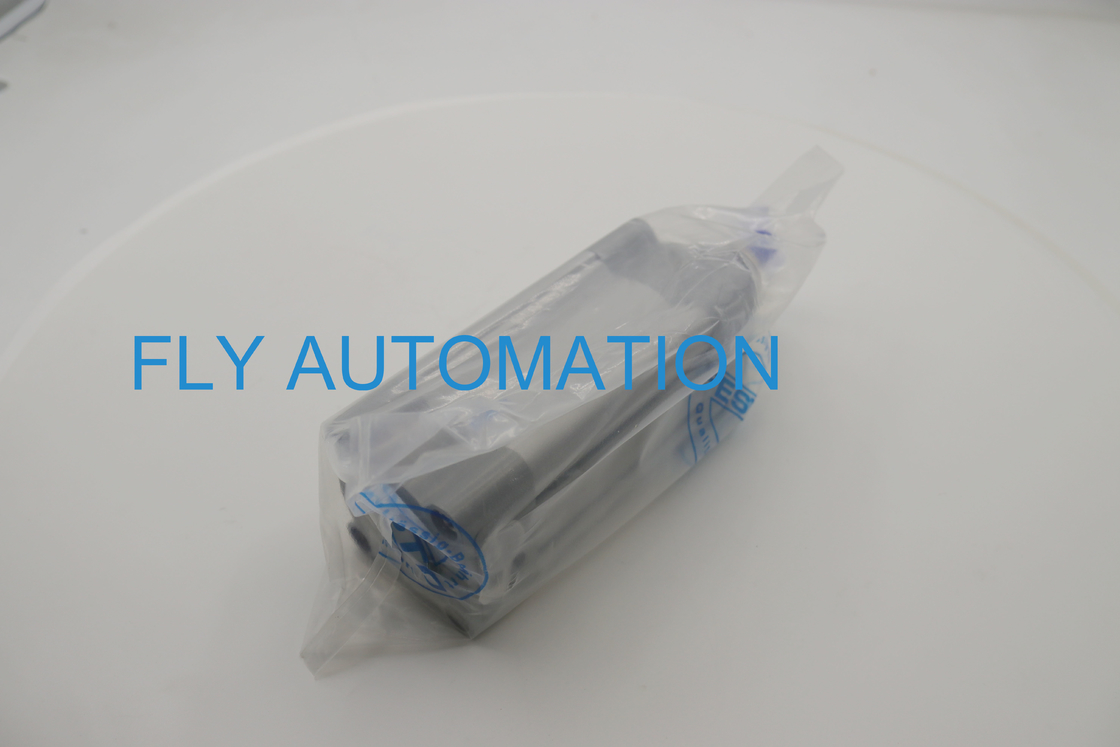

About product
Extensive range of accessories makes it possible to install the cylinder virtually anywhere
The variants can be configured according to individual needs using a modular product system
Material piston:Wrought aluminium alloy
Material piston rod:High-alloy steel
Color:silver
Technical Data
| Stroke | 70mm |
| Piston diameter | 63 mm |
| Piston rod thread | M16x1.5 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Profile barrel |
| Position detection | Via proximity switch |
| Symbol | 00991235 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 22 mm |
| Basic weight for 0 mm stroke | 1740 g |
| Additional weight per 10 mm stroke | 62 g |
| Type of mounting | Either: Via female thread With accessories |
| Pneumatic connection | G3/8 |
| Note on materials | RoHS-compliant |
| Material cover | Die-cast aluminium, coated |
| Material piston seal | TPE-U(PU) |
| Material piston | Wrought aluminium alloy |
| Material piston rod | High-alloy steel |
| Material piston rod wiper | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) |
| Cushioning piston material | POM |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Material nut | Galvanised steel |
| Material bearing | POM |
| Material collar screws | Galvanised steel |
Variants from the modular product system
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
There are so many kinds. Please contact with me.
