FESTO ISO Cylinder DSBC-63-160-PPVA-N3 1383584 Pneumatic Air Cylinders

Product Details:

Brand Name:	FESTO
Model Number:	DSBC-63-160-PPVA-N3

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	EXW USD100-120
Packaging Details:	plastic bag, carton，OPP bag
Delivery Time:	7-12 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	500 pcs per month

Contact Now

Detailed Product Description

Brand:	FESTO	Part No:	1383584
Type:	DSBC-63-160-PPVA-N3	Pneumatic Connection:	G3/8
Note On Materials:	RoHS-compliant	Cushioning Piston Material:	POM
High Light:	POM Cushioning Piston ISO Cylinder , 1383584 Pneumatic Air Cylinders

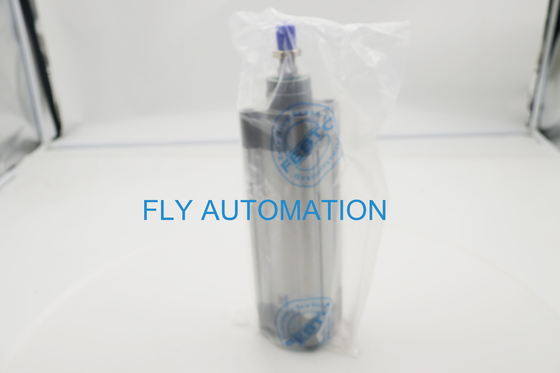

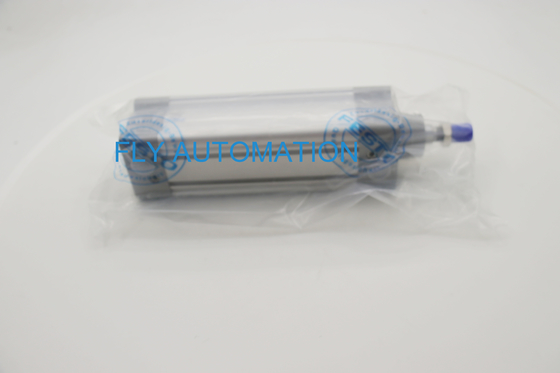

FESTO ISO cylinder DSBC-63-160-PPVA-N3 1383584 Pneumatic Air Cylinders

Name: FESTO ISO Cylinder DSBC-63-160-PPVA-N3 1383584 Pneumatic Air Cylinders
Brand: FESTO
SKU: DSBC-63-160-PPVA-N3
Price: 100 USD
Availability: InStock
Rating: 4.8 (183 reviews)

About product

Cushioning length:22 mm

Pneumatic connection:G3/8

Note on materials: RoHS-compliant

Material cylinder barrel:Smooth-anodised wrought aluminium alloy

Material collar screws:Galvanised steel

Technical Data

Stroke	160 mm
Piston diameter	63 mm
Piston rod thread	M16x1.5
Cushioning	Pneumatic cushioning, adjustable at both ends
Mounting position	optional
Conforms to standard	ISO 15552
Piston-rod end	Male thread
Design	Piston Piston rod Profile barrel
Position detection	Via proximity switch
Symbol	00991235
Variants	Piston rod at one end
Mode of operation	Double-acting
Corrosion resistance class CRC	2 - Moderate corrosion stress
Ambient temperature	-20°C-80°C
Cushioning length	22 mm
Basic weight for 0 mm stroke	1740 g
Additional weight per 10 mm stroke	62 g
Type of mounting	Either: Via female thread With accessories
Pneumatic connection	G3/8
Note on materials	RoHS-compliant
Material cover	Die-cast aluminium, coated
Material piston seal	TPE-U(PU)
Material piston	Wrought aluminium alloy
Material piston rod	High-alloy steel
Material piston rod wiper	TPE-U(PU)
Buffer seal material	TPE-U(PU)
Cushioning piston material	POM
Material cylinder barrel	Smooth-anodised wrought aluminium alloy
Material nut	Galvanised steel
Material bearing	POM
Material collar screws	Galvanised steel

Dimensions

With the Festo Core Range, we have selected the most important products and functions from our broad product catalogue, and added the quickest delivery.

There are so many models ,please contact with me.

Attention

1.Before you endorse the parcel, please do open the package, and check out whether the items are damaged during the shipping process.

If so, please do refuse to sign for the parcel, the courier will send back the package to our company. Otherwise we are not responsible for this...

2.Any order is welcome. we will give discounts and combined shipping costs for you if you order more or mix order. If you have any questions.

please feel free to contact us.
