| Place of Origin: | China |
| Brand Name: | FESTO |

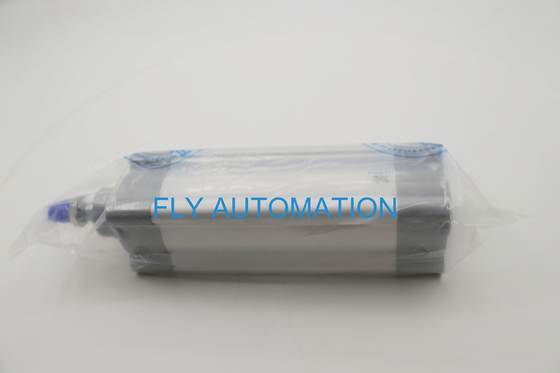

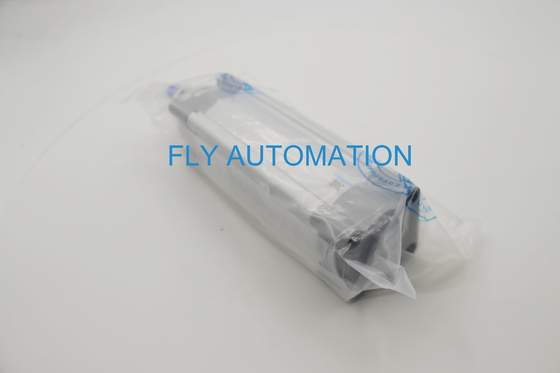

| Model Number: | DSBC-63-125-PPVA-N3 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD100-120 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 7-12 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500 pcs per month |
| Type: | DSBC-63-125-PPVA-N3 | Part No: | 1383583 |
|---|---|---|---|
| Brand: | FESTO | Mode Of Operation: | Double-acting |
| Piston Rod Thread: | M16x1.5 | Piston Diameter: | 63 Mm |
| High Light: | 1383583 Pneumatic Air Cylinders,DSBC-63-125-PPVA-N3,FESTO Double Acting ISO Cylinder |
||
About product
Technical Data
| Stroke | 125 mm |
| Piston diameter | 63 mm |
| Piston rod thread | M16x1.5 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Profile barrel |
| Position detection | Via proximity switch |
| Symbol | 00991235 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 22 mm |
| Basic weight for 0 mm stroke | 1740 g |
| Additional weight per 10 mm stroke | 62 g |
| Type of mounting | Either: Via female thread With accessories |
| Pneumatic connection | G3/8 |
| Note on materials | RoHS-compliant |
| Material cover | Die-cast aluminium, coated |
| Material piston seal | TPE-U(PU) |
| Material piston | Wrought aluminium alloy |
| Material piston rod | High-alloy steel |
| Material piston rod wiper | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) |
| Cushioning piston material | POM |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Material nut | Galvanised steel |
| Material bearing | POM |
| Material collar screws | Galvanised steel |
There are so many models ,please contact with me.
With the Festo Core Range, we have selected the most important products and functions from our broad product catalogue, and added the quickest delivery.
The Core Range off ers you the best value for your automation tasks.
Mounting components and accessories
