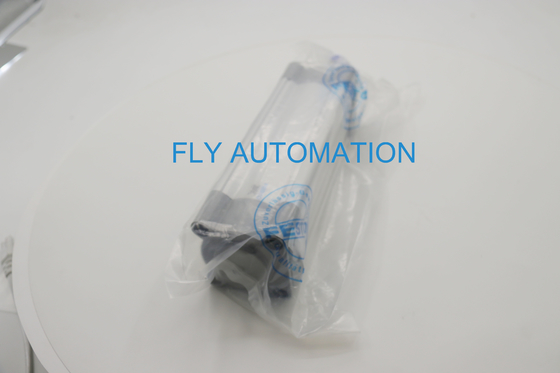

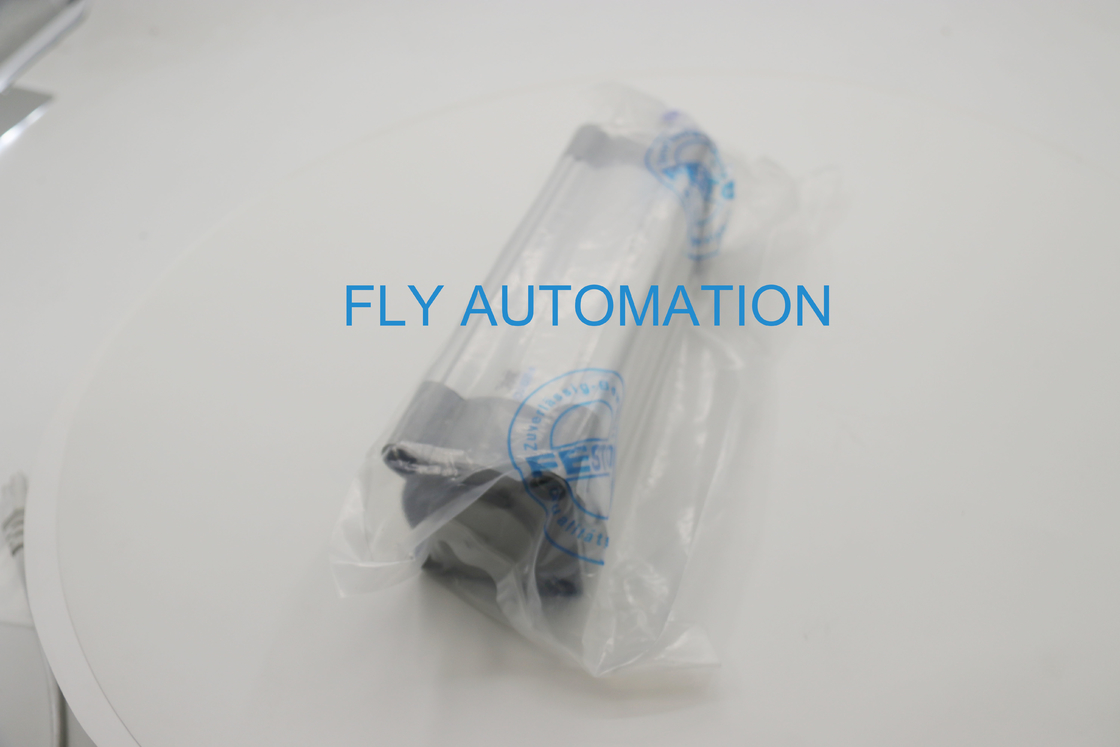

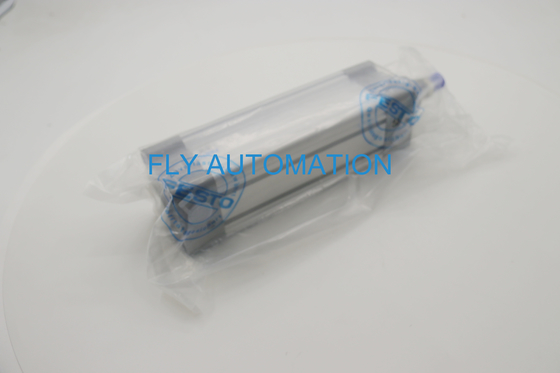

FESTO ISO Cylinder DSBC-63-100-PPVA-N3 1383582 Pneumatic Air Cylinders

Product Details:

Place of Origin:	China
Brand Name:	FESTO
Model Number:	DSBC-63-100-PPVA-N3

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	EXW USD100-120
Packaging Details:	plastic bag, carton，OPP bag
Delivery Time:	8-12 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	800 pcs per month

Contact Now

Detailed Product Description

Type:	DSBC-63-100-PPVA-N3	Part No:	1383582
Brand:	FESTO	Piston Rod Thread:	M16x1.5
Symbol:	'00991235	Mode Of Operation:	Double-acting
High Light:	1383582 Pneumatic Air Cylinders , DSBC-63-100-PPVA-N3 , ISO Double Acting Air Cylinder

FESTO ISO cylinder DSBC-63-100-PPVA-N3 1383582 Pneumatic Air Cylinders

Name: FESTO ISO Cylinder DSBC-63-100-PPVA-N3 1383582 Pneumatic Air Cylinders
Brand: FESTO
SKU: DSBC-63-100-PPVA-N3
Price: 100 USD
Availability: InStock
Rating: 4.7 (129 reviews)

About product

Cushioning:Pneumatic cushioning, adjustable at both ends

Position detection:Via proximity switch

Symbol:00991235

Mode of operation:Double-acting

Ambient temperature: -20°C-80°C

Technical Data

Stroke	100 mm
Piston diameter	63 mm
Piston rod thread	M16x1.5
Cushioning	Pneumatic cushioning, adjustable at both ends
Mounting position	optional
Conforms to standard	ISO 15552
Piston-rod end	Male thread
Design	Piston Piston rod Profile barrel
Position detection	Via proximity switch
Symbol	00991235
Variants	Piston rod at one end
Mode of operation	Double-acting
Corrosion resistance class CRC	2 - Moderate corrosion stress
Ambient temperature	-20°C-80°C
Cushioning length	22 mm
Basic weight for 0 mm stroke	1740 g
Additional weight per 10 mm stroke	62 g
Type of mounting	Either: Via female thread With accessories
Pneumatic connection	G3/8
Note on materials	RoHS-compliant
Material cover	Die-cast aluminium, coated
Material piston seal	TPE-U(PU)
Material piston	Wrought aluminium alloy
Material piston rod	High-alloy steel
Material piston rod wiper	TPE-U(PU)
Buffer seal material	TPE-U(PU)
Cushioning piston material	POM
Material cylinder barrel	Smooth-anodised wrought aluminium alloy
Material nut	Galvanised steel
Material bearing	POM
Material collar screws	Galvanised steel

The Core Range off ers you the best value for your automation tasks.

Characteristics

Delivery

1. If the products we have in store, we will send it out ASAP after payment.

2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.

3. Also we can send by your delivery acount if you want.

4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.
