| Brand Name: | FESTO |
| Model Number: | DSBC-63-100-PPVA-N3 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD60-80 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 8-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1200 pcs per month |
| Type: | DSBC-63-100-PPVA-N3 | Stroke: | 100 Mm |
|---|---|---|---|
| Part No: | 1383582 | Brand: | FESTO |
| Piston Diameter: | 63 Mm | Ambient Temperature: | -20°C-80°C |

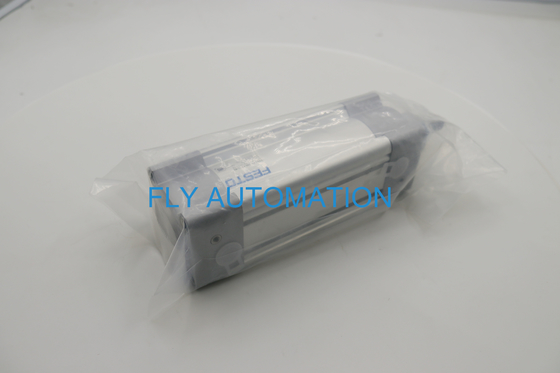

FESTO ISO cylinder DSBC-63-100-PPVA-N3 1383582 Pneumatic Air Cylinders
About product
Technical Data
| Stroke | 100 mm |
| Piston diameter | 63 mm |
| Piston rod thread | M16x1.5 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Profile barrel |
| Symbol | 00991235 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 22 mm |
| Pneumatic connection | G3/8 |
| Note on materials | RoHS-compliant |
| Material cover | Die-cast aluminium, coated |
There are so many kinds. Please contact with me!
