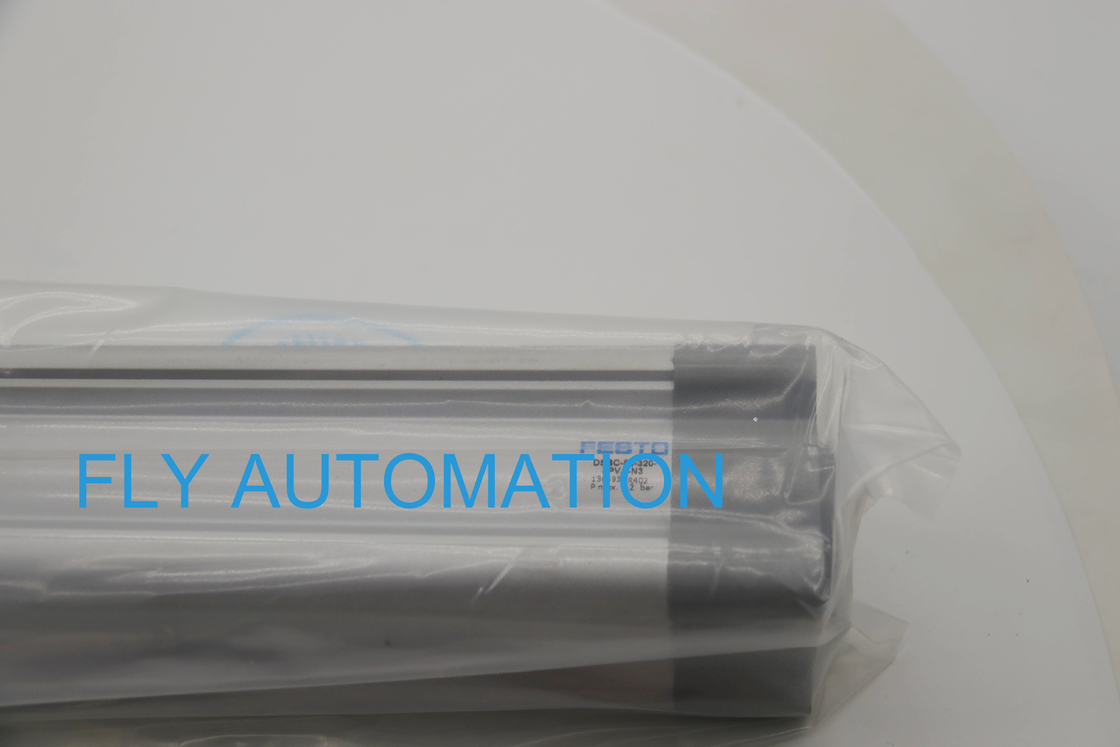

FESTO ISO Cylinder DSBC-50-320-PPVA-N3 1366957 Pneumatic Air Cylinders

FESTO ISO Cylinder DSBC-50-320-PPVA-N3 1366957 Pneumatic Air Cylinders

  • FESTO ISO Cylinder DSBC-50-320-PPVA-N3 1366957 Pneumatic Air Cylinders
  • FESTO ISO Cylinder DSBC-50-320-PPVA-N3 1366957 Pneumatic Air Cylinders
FESTO ISO Cylinder DSBC-50-320-PPVA-N3 1366957 Pneumatic Air Cylinders
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DSBC-50-320-PPVA-N3
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD50-60
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 10-12 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 600pcs per month
Contact Now
Detailed Product Description
Part No: 1366957 Brand: FESTO
Type: DSBC-50-320-PPVA-N3 Design: Piston Piston Rod Profile Barrel
Cleanroom Class: Class 6 According To ISO 14644-1 Pneumatic Connection: G1/4
Highlight:

1366957 Pneumatic Air Cylinders

,

Pneumatic Air FESTO ISO Cylinder

,

Piston Rod FESTO ISO Cylinder

FESTO ISO cylinder DSBC-50-320-PPVA-N3 1366957 Pneumatic Air Cylinders

About product

Stroke:320 mm

Piston diameter:50 mm

Double-acting

For contactless position sensing

Optionally with protection against rotation



Technical Data

Stroke 320 mm
Piston diameter 50 mm
Piston rod thread M16x1.5
Cushioning Pneumatic cushioning, adjustable at both ends
Mounting position optional
Conforms to standard ISO 15552
Piston-rod end Male thread
Design Piston Piston rod Profile barrel
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cleanroom class Class 6 according to ISO 14644-1
Ambient temperature -20°C-80°C
Cushioning length 22 mm
Basic weight for 0 mm stroke 1190 g
Additional weight per 10 mm stroke 56 g
Pneumatic connection G1/4
Note on materials RoHS-compliant
Material cover Die-cast aluminium, coated
Material piston seal TPE-U(PU)
Material piston Wrought aluminium alloy
Material piston rod High-alloy steel
Material piston rod wiper TPE-U(PU)
Buffer seal material TPE-U(PU)
Cushioning piston material POM
Material cylinder barrel Smooth-anodised wrought aluminium alloy
Material nut Galvanised steel
Material bearing POM
Material collar screws Galvanised steel



Festo continuously improves the manufacturing level through innovative and optimized motion control solutions, and provides automated manufacturing and processing equipment with higher performance and higher profits.

There are so many kinds. Hurry to call me!
