Place of Origin: | China |
Brand Name: | FESTO |

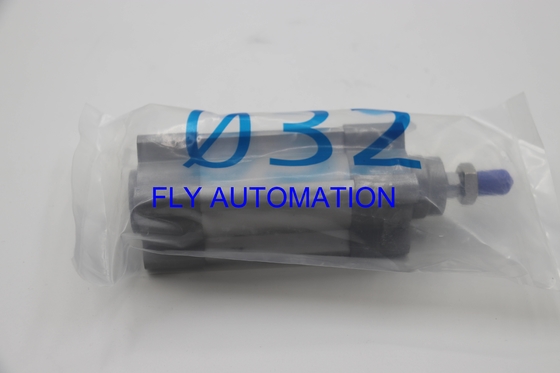

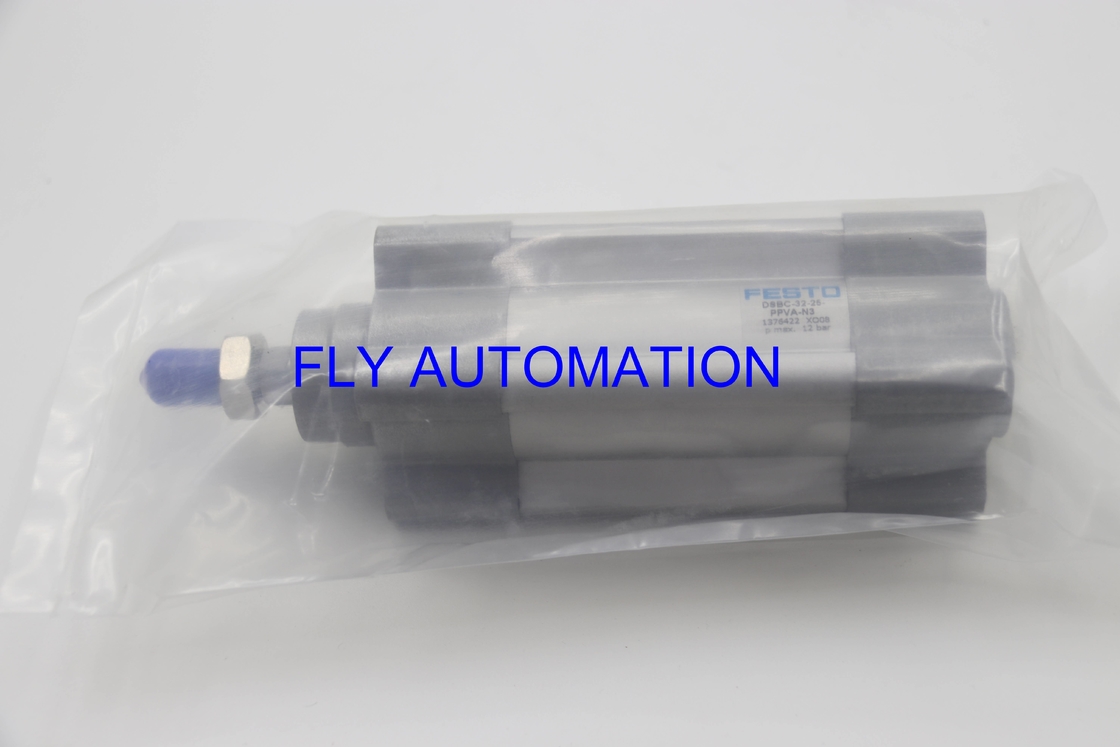

Model Number: | DSBC-32-25-PPVA-N3 |
Minimum Order Quantity: | 1pc |
---|---|
Price: | EXW USD40-50 |
Packaging Details: | plastic bag, carton,OPP bag |
Delivery Time: | 10-15 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 50 pcs per month |
Type: | DSBC-32-25-PPVA-N3 | Brand: | FESTO |
---|---|---|---|
Part No: | 1376422 | Stroke: | 25 Mm |
Piston Diameter: | 32 Mm | Piston Rod Thread: | M10x1.25 |
High Light: | 1376422 Pneumatic ISO Cylinder,DSBC-32-25-PPVA-N3,Double Acting ISO Pneumatic Air Cylinders |
About product
1.Double-acting.
2.For contactless position sensing.
3.Optionally with protection against rotation.
4.Extensive range of accessories makes it possible to install the cylinder virtually anywhere.
5.The variants can be configured according to individual needs using a modular product system.
6.Wide range of variants provides high level of flexibility.
Technical Data
Stroke | 25 mm |
Piston diameter | 32 mm |
Piston rod thread | M10x1.25 |
Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | optional |
Conforms to standard | ISO 15552 |
Piston-rod end | Male thread |
Design | Piston Piston rod Profile barrel |
Position detection | Via proximity switch |
Symbol | 00991235 |
Variants | Piston rod at one end |
Mode of operation | Double-acting |
LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20 °C ... 80 °C |
Cushioning length | 17 mm |
Basic weight for 0 mm stroke | 465 g |
Additional weight per 10 mm stroke | 27 g |
Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant |
Material cover | Die-cast aluminium, coated |
Material piston seal | TPE-U(PU) |
Material piston | Wrought aluminium alloy |
Material piston rod | High-alloy steel |
Material piston rod wiper | TPE-U(PU) |
Buffer seal material | TPE-U(PU) |
Cushioning piston material | POM |
Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
Material nut | Galvanised steel |
Material bearing | POM |
Material collar screws | Galvanised steel |
Variants from the modular product system
There are so many kinds. Hurry to call me!
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
