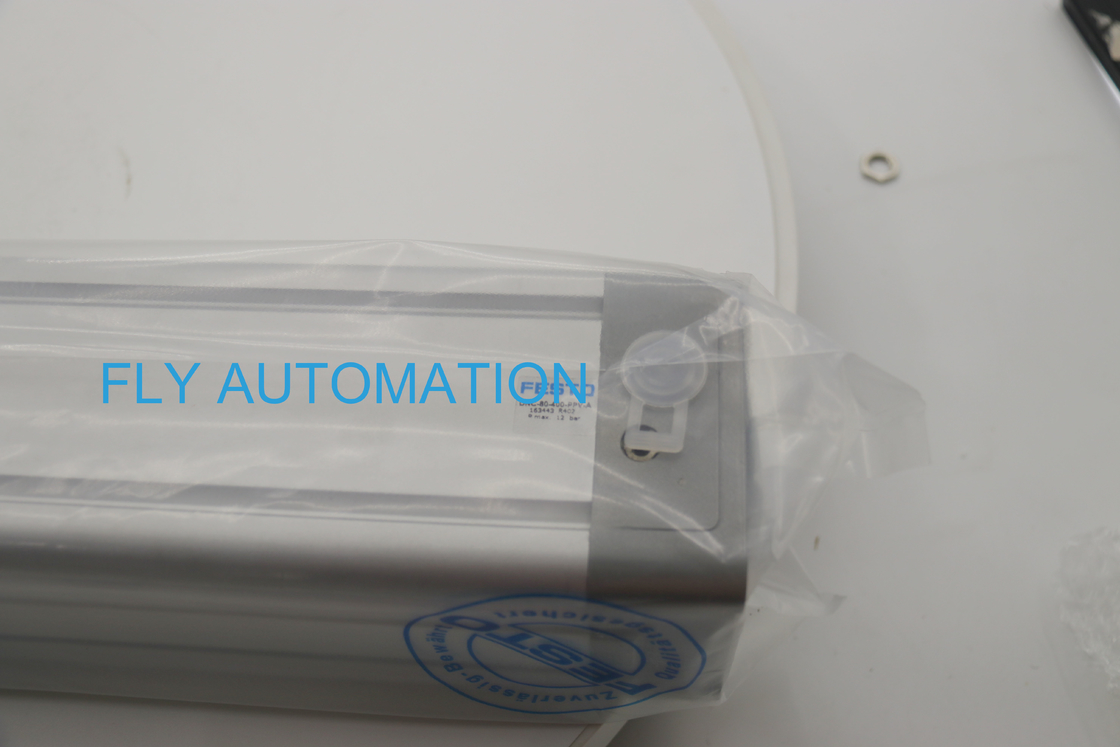

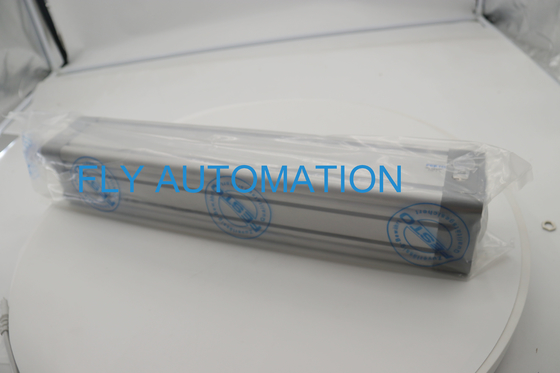

FESTO ISO Cylinder DNC-80-400-PPV-A 163443 Pneumatic Air Cylinders

FESTO ISO Cylinder DNC-80-400-PPV-A 163443 Pneumatic Air Cylinders

  • FESTO ISO Cylinder DNC-80-400-PPV-A 163443 Pneumatic Air Cylinders
  • FESTO ISO Cylinder DNC-80-400-PPV-A 163443 Pneumatic Air Cylinders
FESTO ISO Cylinder DNC-80-400-PPV-A 163443 Pneumatic Air Cylinders
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DNC-80-400-PPV-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD80-100
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 10-15working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Type: DNC-80-400-PPV-A Part No: 163443
Brand: FESTO Piston Diameter: 80 Mm
Stroke: 400 Mm Conforms To Standard: ISO 15552
Highlight:

163443 Pneumatic Air Cylinders

,

80mm FESTO ISO Cylinder

,

Aluminium Alloy Smooth Anodised ISO Cylinder

FESTO ISO cylinder DNC-80-400-PPV-A 163443 Pneumatic Air Cylinders

About product

Stroke:400 mm

Piston diameter:80 mm

Cushioning:Pneumatic cushioning, adjustable at both ends

Material cylinder barrel:Wrought aluminium alloy Smooth anodised



Technical Data

Stroke 400 mm
Piston diameter 80 mm
Piston rod thread M20x1.5
Cushioning Pneumatic cushioning, adjustable at both ends
Mounting position optional
Conforms to standard ISO 15552
Piston-rod end Male thread
Design Piston Piston rod Profile barrel
Position detection Via proximity switch
Symbol 00991235
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Cushioning length 32 mm
Basic weight for 0 mm stroke 2790 g
Additional weight per 10 mm stroke 106 g
Pneumatic connection G3/8
Note on materials RoHS-compliant
Material cove rDie-cast aluminium Coated
Material seals TPE-U(PU)
Material piston rod High-alloy steel
Material cylinder barrel Wrought aluminium alloy Smooth anodised









There are so many kinds. Please contact with me!
