| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | DNC-63-80-PPV-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD40-50 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 5-7working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 pcs per month |

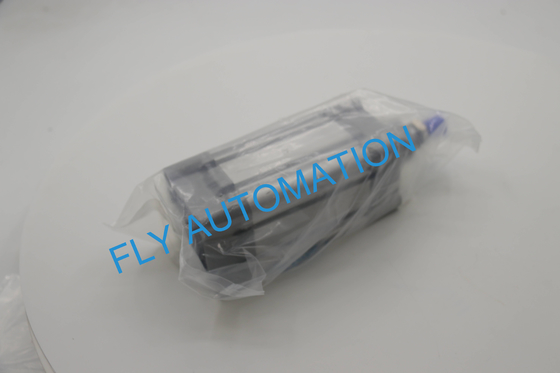

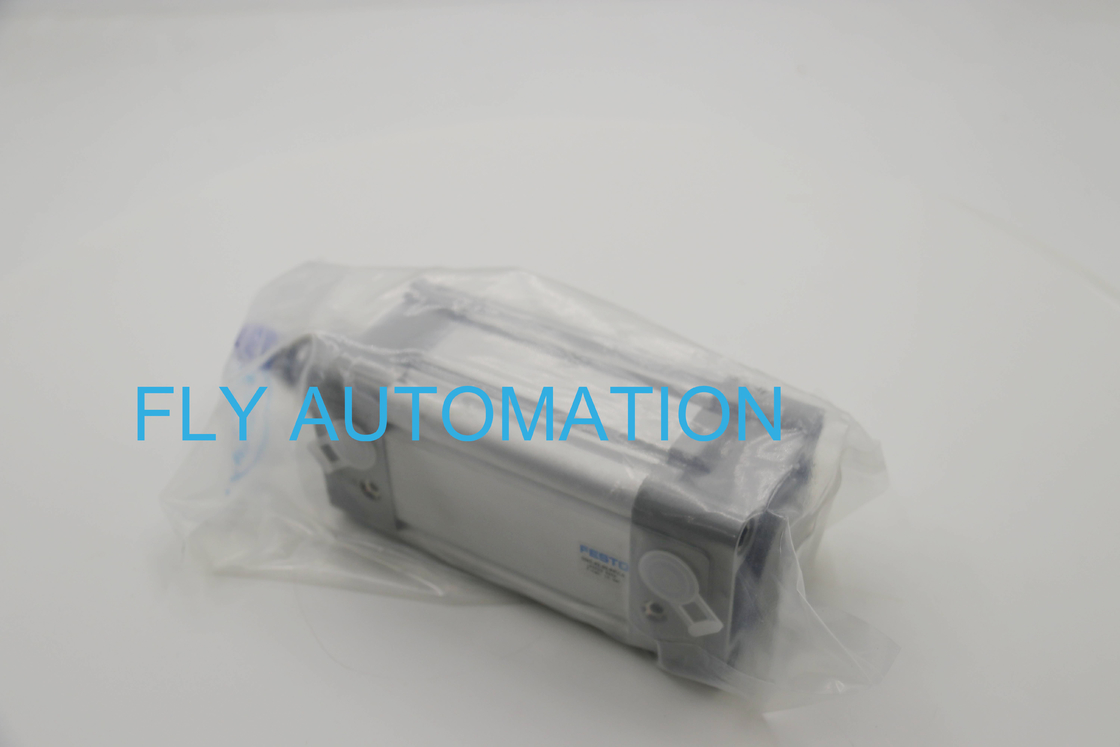

| Brand: | FESTO | Type: | DNC-63-80-PPV-A |
|---|---|---|---|
| Part No: | 163404 | Stroke: | 80 Mm |
| Mode Of Operation: | Double-acting | Corrosion Resistance Class CRC: | 2 - Moderate Corrosion Stress |
| High Light: | 163404 Pneumatic Air Cylinders,DNC-63-80-PPV-A,FESTO ISO Cylinder 80mm |
||
About product
Pneumatic connection:G3/8
LABS (PWIS) conformity:VDMA24364-B1/B2-L
Mode of operation:Double-acting
The widest range of variants on the market offers the ideal cylinder DNC for any application
An extensive range of accessories enables the cylinder to be installed virtually anywhere
Technical Data
| Stroke | 80 mm |
| Piston diameter | 63 mm |
| Piston rod thread | M16x1.5 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Profile barrel |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 22 mm |
| Basic weight for 0 mm stroke | 1709 g |
| Additional weight per 10 mm stroke | 73 g |
| Pneumatic connection | G3/8 |
| Note on materials | RoHS-compliant |
| Material cover | Die-cast aluminium Coated |
| Material seals | TPE-U(PU) |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | Wrought aluminium alloy Smooth anodised |
Data sheet
There are so many models. Hurry to call me!
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
