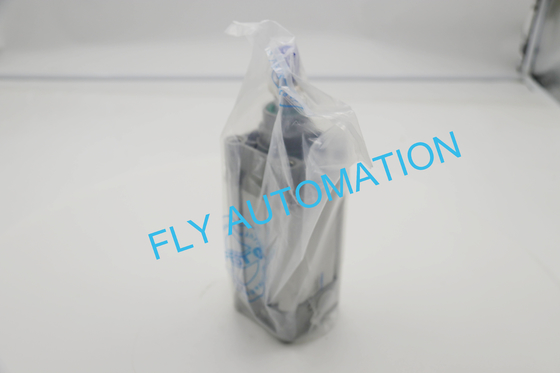

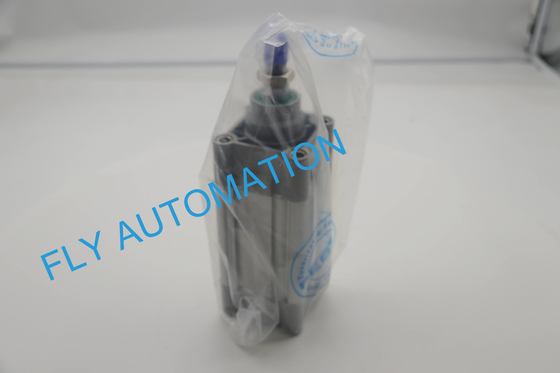

FESTO ISO Cylinder DNC-63-100-PPV-A 163405 Pneumatic Air Cylinders

FESTO ISO Cylinder DNC-63-100-PPV-A 163405 Pneumatic Air Cylinders

  • FESTO ISO Cylinder DNC-63-100-PPV-A 163405 Pneumatic Air Cylinders
  • FESTO ISO Cylinder DNC-63-100-PPV-A 163405 Pneumatic Air Cylinders
FESTO ISO Cylinder DNC-63-100-PPV-A 163405 Pneumatic Air Cylinders
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DNC-63-100-PPV-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD40-50
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 5-7working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 800 pcs per month
Contact Now
Detailed Product Description
Brand: FESTO Type: DNC-63-100-PPV-A
Part No: 163405 Corrosion Resistance Class CRC: 2 - Moderate Corrosion Stress
Ambient Temperature: -20°C-80°C Material Piston Rod: High-alloy Steel
Highlight:

163405 Pneumatic Air Cylinders

,

FESTO Pneumatic ISO Cylinder

,

DNC-63-100-PPV-A Air Cylinder

FESTO ISO cylinder DNC-63-100-PPV-A 163405 Pneumatic Air Cylinders

About product

Stroke:100 mm

Piston diameter:63 mm

Standards-based cylinders to ISO 15552 (corresponds to the withdrawn standards ISO 6431, DIN ISO 6431, VDMA 24562, NF E49003.1 and UNI 10290



Technical Data

Stroke 100 mm
Piston diameter 63 mm
Piston rod thread M16x1.5
Cushioning Pneumatic cushioning, adjustable at both ends
Mounting position optional
Conforms to standard ISO 15552
Piston-rod end Male thread
Design Piston Piston rod Profile barrel
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Cushioning length 22 mm
Basic weight for 0 mm stroke 1709 g
Additional weight per 10 mm stroke 73 g
Pneumatic connection G3/8
Note on materials RoHS-compliant
Material cover Die-cast aluminium Coated
Material seals TPE-U(PU)
Material piston rod High-alloy steel
Material cylinder barrel Wrought aluminium alloy Smooth anodised



After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.



There are so many models. Please  call me !
