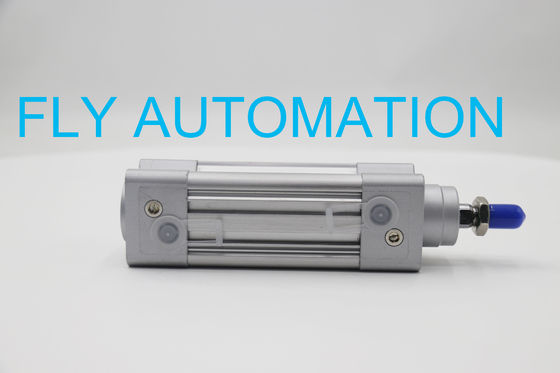

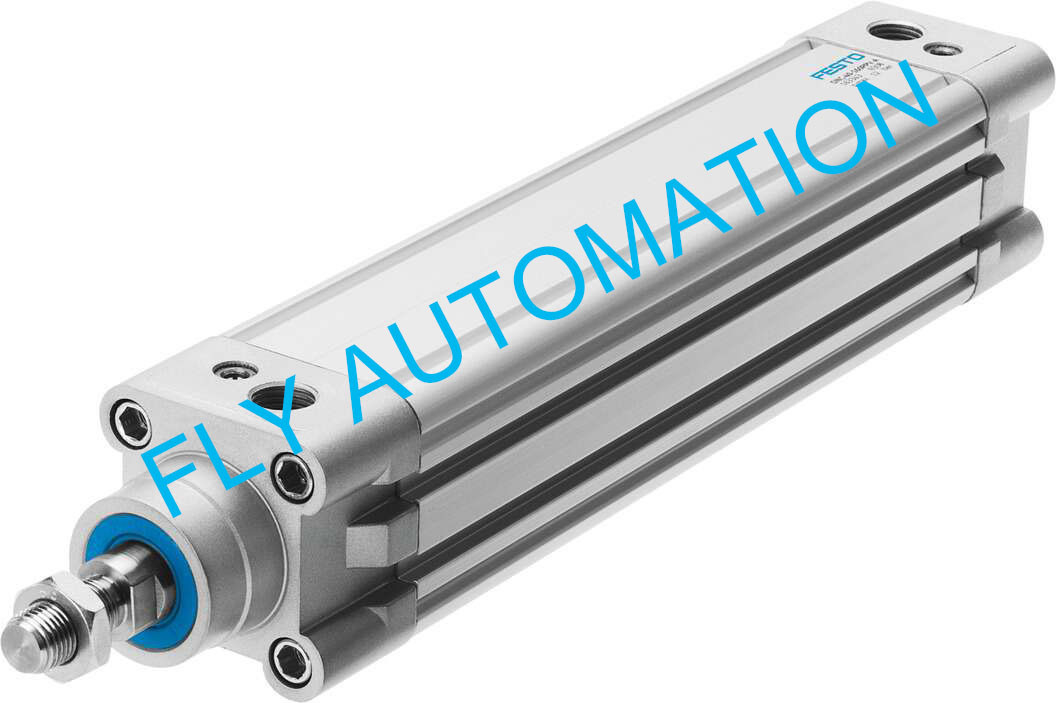

FESTO ISO cylinder DNC-40-30-PPV-A 1922624 GTIN4052568249939 Pneumatic Air Cylinders

FESTO ISO cylinder DNC-40-30-PPV-A 1922624 GTIN4052568249939 Pneumatic Air Cylinders

  • FESTO ISO cylinder DNC-40-30-PPV-A 1922624 GTIN4052568249939 Pneumatic Air Cylinders
  • FESTO ISO cylinder DNC-40-30-PPV-A 1922624 GTIN4052568249939 Pneumatic Air Cylinders
FESTO ISO cylinder DNC-40-30-PPV-A 1922624 GTIN4052568249939 Pneumatic Air Cylinders
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DNC-40-30-PPV-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD30-40
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 7-10working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50 pcs per month
Contact Now
Detailed Product Description
Type: DNC-40-30-PPV-A Part No: 1922624
Brand: FESTO GTIN: 4052568249939
Pneumatic Connection: G1/4 Note On Materials: RoHS-compliant
Highlight:

GTIN4052568249939 Pneumatic Air Cylinders

,

1922624 Pneumatic Air Cylinders

FESTO ISO cylinder DNC-40-30-PPV-A 1922624 GTIN4052568249939 Pneumatic Air Cylinders

About product

1.The modern, consistent design saves up to 11% more space compared to ordinary standards-based cylinders, providing a significantly more compact system structure.

2.An extensive range of accessories enables the cylinder to be installed virtually anywhere.

3.The widest range of variants on the market offers the ideal cylinder DNC for any application.



Technical Data

Stroke 30 mm
Piston diameter 40 mm
Piston rod thread M12x1.25
Cushioning Pneumatic cushioning, adjustable at both ends
Mounting position optional
Conforms to standard ISO 15552
Piston-rod end Male thread
Design Piston Piston rod Profile barrel
Position detection Via proximity switch
Symbol 00991235
Variants Piston rod at one end
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Cushioning length 20 mm
Basic weight for 0 mm stroke 800 g
Additional weight per 10 mm stroke 45 g
Type of mounting Via female thread With accessories Either:
Pneumatic connection G1/4
Note on materials RoHS-compliant
Material cover Die-cast aluminium Coated
Material seals TPE-U(PU)
Material piston rod High-alloy steel
Material cylinder barrel

Wrought aluminium alloy Smooth anodised



Other size as below

Type Order no Weight(g) Price
DNC-40-20-PPV-A 1922623 890 USD30-40
DNC-40-25-PPV-A 163337 913 USD30-40
DNC-40-30-PPV-A 1922624 935 USD30-40
DNC-40-40-PPV-A 163338 980 USD30-40
DNC-40-50-PPV-A 163339 1025 USD30-40
DNC-40-60-PPV-A 1922625 1070 USD30-40
DNC-40-70-PPV-A 1922626 1115 USD30-40
DNC-40-80-PPV-A 163340 1160 USD30-40
DNC-40-100-PPV-A 163341 1250 USD30-40
DNC-40-125-PPV-A 163342 1363 USD30-40
DNC-40-150-PPV-A 1922627 1475 USD30-40
DNC-40-160-PPV-A 163343 1520 USD30-40
DNC-40-200-PPV-A 163344 1700 USD30-40
DNC-40-250-PPV-A 163345 1925 USD30-40
DNC-40-300-PPV-A 1922628 2150 USD30-40
DNC-40-320-PPV-A 163346 2240 USD30-40
DNC-40-400-PPV-A 163347 2600 USD30-40
DNC-40-500-PPV-A 163348 3050 USD30-40



Festo's experts know your industry and all of its standards and regulations - no matter where you are in the world. You will get the best automation solution for your application.



There are so many kinds. Hurry to call me!
