| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |

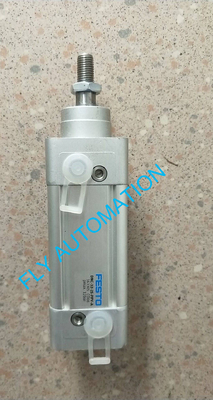

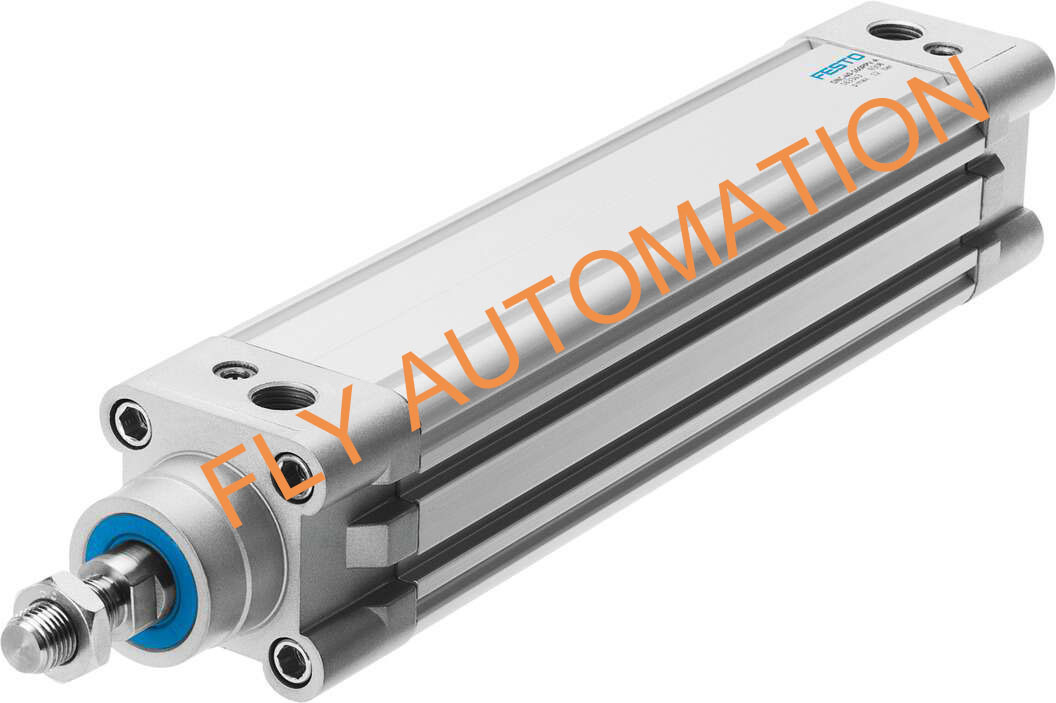

| Model Number: | DNC-32-25-PPV-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD25-35 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 50 pcs per month |
| Part No: | 163305 | Type: | DNC-32-25-PPV-A |
|---|---|---|---|
| Brand: | FESTO | GTIN: | 4052568252076 |
| Cushioning Length: | 20 Mm | Material Piston Rod: | High-alloy Steel |
About product
1.ISO 15552 (ISO 6431, VDMA 24562).
2.Wide range of variants for customised applications.
3.Comprehensive range of mounting accessories for just about every type of installation.
Technical Data
| Stroke | 25 mm |
| Piston diameter | 32 mm |
| Piston rod thread | M10x1.25 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Profile barrel |
| Position detection | Via proximity switch |
| Symbol | 00991235 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 20 mm |
| Basic weight for 0 mm stroke | 517 g |
| Additional weight per 10 mm stroke | 30 g |
| Type of mounting | Via female thread With accessories Either: |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Die-cast aluminium Coated |
| Material seals | TPE-U(PU) |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | Wrought aluminium alloy Smooth anodised |
Other size as below
| Type | Order no | Weight(g) | Price |
| DNC-32-20-PPV-A | 1922617 | 577 | USD25-35 |
| DNC-32-25-PPV-A | 163305 | 592 | USD25-35 |
| DNC-32-30-PPV-A | 1922618 | 607 | USD25-35 |
| DNC-32-40-PPV-A | 163306 | 637 | USD25-35 |
| DNC-32-50-PPV-A | 163307 | 667 | USD25-35 |
| DNC-32-60-PPV-A | 1922619 | 697 | USD25-35 |
| DNC-32-70-PPV-A | 1922620 | 727 | USD25-35 |
| DNC-32-80-PPV-A | 163308 | 757 | USD25-35 |
| DNC-32-100-PPV-A | 163309 | 817 | USD25-35 |
| DNC-32-125-PPV-A | 163310 | 892 | USD25-35 |
| DNC-32-150-PPV-A | 1922621 | 967 | USD25-35 |
| DNC-32-160-PPV-A | 163311 | 997 | USD25-35 |
| DNC-32-200-PPV-A | 163312 | 1117 | USD25-35 |
| DNC-32-250-PPV-A | 163313 | 1267 | USD25-35 |
| DNC-32-300-PPV-A | 1922622 | 1417 | USD25-35 |
| DNC-32-320-PPV-A | 163314 | 1477 | USD25-35 |
| DNC-32-400-PPV-A | 163315 | 1717 | USD25-35 |
| DNC-32-500-PPV-A | 163316 | 2017 | USD25-35 |
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.
There are so many kinds. Hurry to call me!
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
