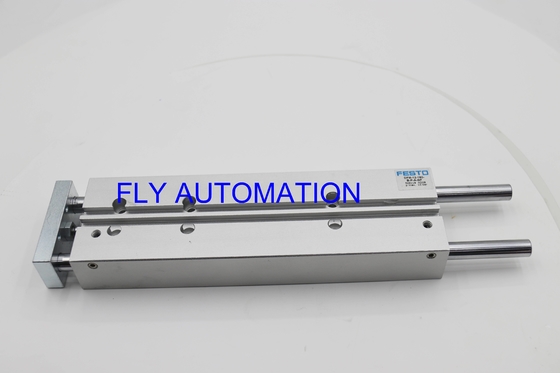

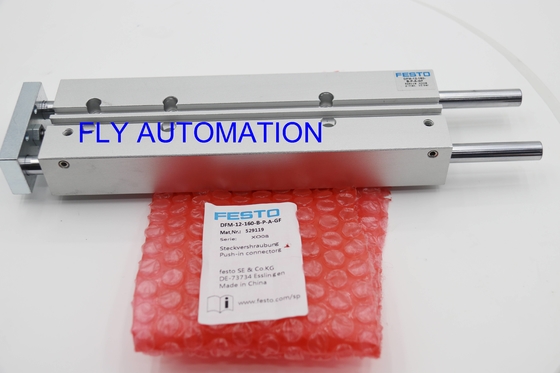

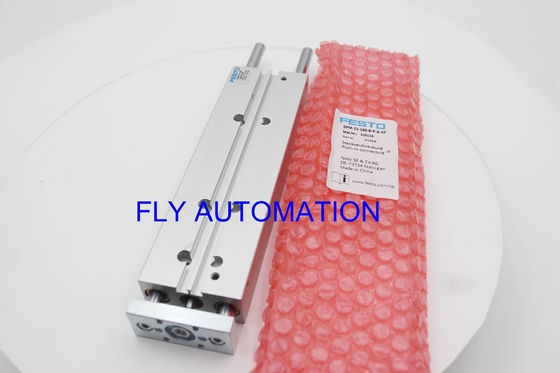

FESTO Guided Drive Pneumatic Air Cylinders DFM-12- 160-B -P-A-GF 529119

FESTO Guided Drive Pneumatic Air Cylinders DFM-12- 160-B -P-A-GF 529119

  • FESTO Guided Drive Pneumatic Air Cylinders DFM-12- 160-B -P-A-GF 529119
  • FESTO Guided Drive Pneumatic Air Cylinders DFM-12- 160-B -P-A-GF 529119
  • FESTO Guided Drive Pneumatic Air Cylinders DFM-12- 160-B -P-A-GF 529119
FESTO Guided Drive Pneumatic Air Cylinders DFM-12- 160-B -P-A-GF 529119
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DFM-12- 160-B -P-A-GF
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD100-120
Packaging Details: Plastic bag, Carton
Delivery Time: 7-10working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Type: DFM-12- 160-B -P-A-GF Part No: 529119
Brand: FESTO Stroke: 160mm
Piston Diameter: 12 Mm Color: Silver
Highlight:

Guided Drive Pneumatic Cylinders

,

Guided Drive Double Acting Air Cylinder

,

Pneumatic Double Action Air Cylinder

FESTO Guided drive DFM-12- 160-B -P-A-GF 529119

About product

1.Good protection against torsion.

2.High rigidity.

3.Maintenance-free.

4.Wide range of mounting options.

5.Arge-diameter guide rods and four plain-bearing bushes.



Technical Data

Stroke 160mm
Piston diameter 12 mm
Operating mode, drive unit Yoke
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Guide Plain-bearing guide Recirculating ball bearing guide
Design Guidance
Position detection Via proximity switch
Operating pressure 0.2 MPa ... 1 MPa
Operating pressure 2 bar ... 10 bar
Mode of operation Double-acting
ATEX category gas II 2G
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC 0 - No corrosion stress 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Pneumatic connection M5
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy
Material seals NBR
Material housing Wrought aluminium alloy
Material piston rod High-alloy stainless steel



Mounting options

FESTO Guided Drive Pneumatic Air Cylinders DFM-12- 160-B -P-A-GF 529119

A wide range of products with excellent prices. Please contact me!
