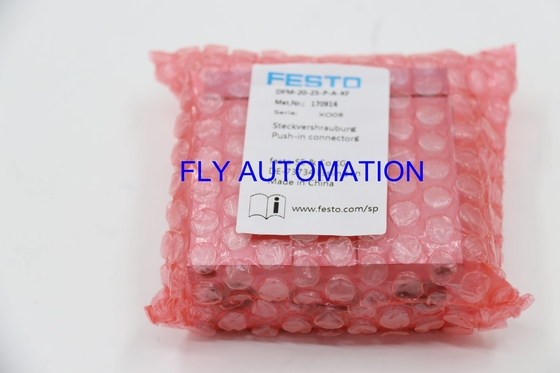

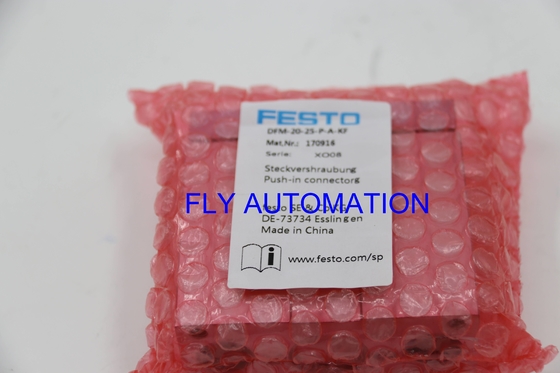

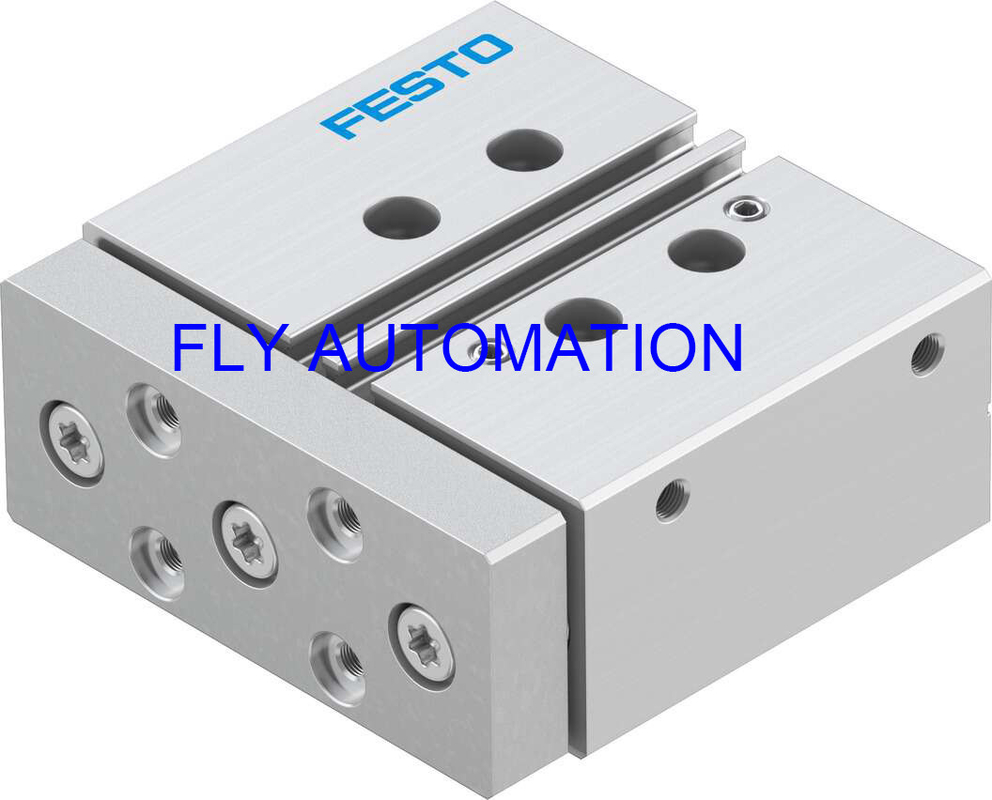

Festo Guided Drive DFM-20-25-P-A-KF 170916 GTIN4052568140069

Festo Guided Drive DFM-20-25-P-A-KF 170916 GTIN4052568140069

  • Festo Guided Drive DFM-20-25-P-A-KF 170916 GTIN4052568140069
  • Festo Guided Drive DFM-20-25-P-A-KF 170916 GTIN4052568140069
  • Festo Guided Drive DFM-20-25-P-A-KF 170916 GTIN4052568140069
Festo Guided Drive DFM-20-25-P-A-KF 170916 GTIN4052568140069
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DFM-20-25-P-A-KF
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD80-100
Packaging Details: Plastic bag, Carton
Delivery Time: 7-10working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Type: DFM-20-25-P-A-KF Part No: 170916
Brand: FESTO Color: Silver
Stroke: 25 Mm Piston Diameter: 20 Mm
High Light:

Festo Guided Drive 170916

,

Guided Drive DFM-20-25-P-A-KF

FESTO Guided drive DFM-20-25-P-A-KF 170916 GTIN4052568140069

About product

1.Good protection against torsion.

2.High rigidity.

3.Maintenance-free.

4.High rigidity thanks to large-diameter guide rods and four plain-bearing bushes.

5.Wide range of mounting options.



Data

Stroke 25 mm
Piston diameter 20 mm
Operating mode, drive unit Yoke
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Guide Recirculating ball bearing guide
Design Guidance
Position detection Via proximity switch
Symbol 00991737
Operating pressure 0.2 MPa ... 1 MPa
Operating pressure 2 bar ... 10 bar
Max. speed 0.8 m/s
Mode of operation Double-acting
Corrosion resistance class CRC 0 - No corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -5 °C ... 60 °C
Impact energy in end positions 0.2 J
Pneumatic connection M5
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy
Material seals NBR
Material housing Wrought aluminium alloy
Material piston rod High-alloy stainless steel





Attention

1.Before you endorse the parcel, please do open the package, and check out whether the items are damaged during the shipping process.
If so, please do refuse to sign for the parcel, the courier will send back the package to our company. Otherwise we are not responsible for this...
2.Any order is welcome. we will give discounts and combined shipping costs for you if you order more or mix order. If you have any questions.
please feel free to contact us.



Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.



A wide range of products with excellent prices. Please hurry to me!
