| Place of Origin: | China |
| Brand Name: | FESTO |

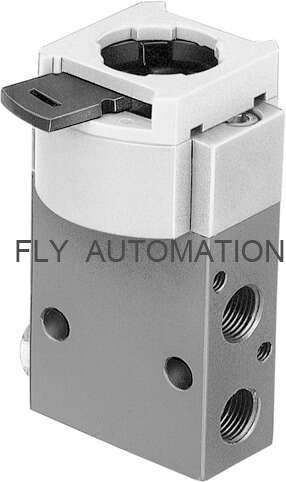

| Model Number: | SVOS-3-1/8 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD60-80 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 200 pcs per month |
| Model: | SVOS-3-1/8 | Order No: | 10191 |
|---|---|---|---|
| Brand: | FESTO | Valve Function: | 3/2 Open, Single Solenoid |
| Type Of Actuation: | Mechanical | Design: | Piston Seat |
| High Light: | Front Pneumatic Solenoid Valves,Mechanical Pneumatic Solenoid Valves,3/2 Open Solenoid Air Valve |
||
About product
1.Switches have several switching positions that can be alternated between as required.
2.Pushbuttons return to their initial switching position after they are actuated.
3.For actuator attachments such as pushbutton actuators, mushroom pushbuttons, selector switches, toggle switches, key actuators.
4.Reliable coupling system for quick mounting and dismounting.
5.Key actuators can only be actuated using the key. The key can be removed in any switching position.
Technical Data
| Valve function | 3/2 open, single solenoid |
| Type of actuation | Mechanical |
| Standard nominal flow rate | 120 l/min |
| pneumatic working port | G1/8 |
| Design | Piston seat |
| Type of reset | Mechanical spring |
| Sealing principle | Soft |
| Mounting position | optional |
| Type of piloting | Direct |
| Flow direction | Non-reversible |

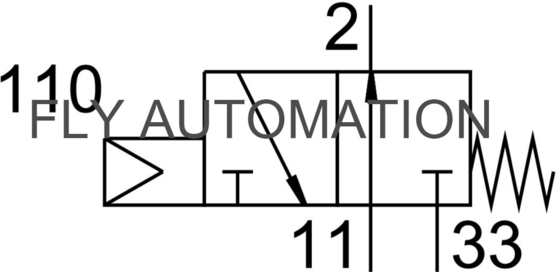

| Symbol | 00991107 |
| lap | Positive overlap |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:-:-] |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C-60°C |
| Actuating force | 8 N |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 2 | G1/8 |
| Pneumatic connection, port 3 | G1/8 |
| Material cover | POM |
| Material seals | NBR TPE-U(PU) |
| Material housing | Aluminium |
Another size as below
| Type | Order no | Price |
| SV-3-M5 | 6817 | USD60-80 |
| SVS-3-1/8 | 10190 | USD60-80 |
| SVOS-3-1/8 | 10191 | USD60-80 |
| SV-5-M5-B | 11914 | USD60-80 |
| SV/O-3-PK-3X2 | 184135 | USD60-80 |
Date
P
There are so many products, welcome to enquire!
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
