| Place of Origin: | China |
| Brand Name: | FESTO |

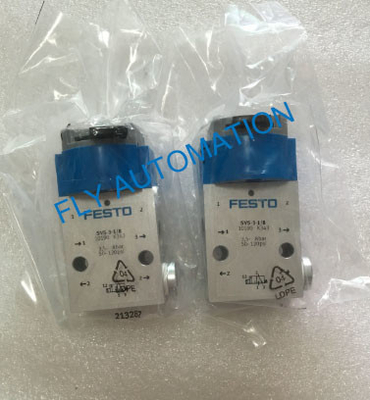

| Model Number: | SVS-3-1/8 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD20-30 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 pcs per month |
| Brand: | FESTO | Part No: | 10190 |
|---|---|---|---|
| Type: | SVS-3-1/8 | Type Of Actuation: | Mechanical |
| Pneumatic Working Port: | G1/8 | Symbol: | '00991106 |
| High Light: | Mechanical Pneumatic Valve,10190 Pneumatic System Components,Front Panel Valve SVS-3-1/8 |
||
About product
1.Reliable coupling system for quick mounting and dismounting.
2.For actuator attachments such as pushbutton actuators, mushroom pushbuttons, selector switches, toggle switches, key actuators.
3.Valve function:3/2-way, closed, monostable.
Technical Data
| Valve function | 3/2-way, closed, monostable |
| Type of actuation | Mechanical |
| Standard nominal flow rate | 120 l/min |
| pneumatic working port | G1/8 |
| Design | Piston seat |
| Type of reset | Mechanical spring |
| Sealing principle | Soft |
| Mounting position | optional |
| Type of piloting | Pilot actuated |
| Flow direction | Non-reversible |
| Symbol | 00991106 |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -10°C-60°C |
| Ambient temperature | -10°C-60°C |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 2 | G1/8 |
| Pneumatic connection, port 3 | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | POM |
| Material seals | NBR TPE-U(PU) |
| Material housing | Aluminium |
General technical data – Basic valves
There are many models . Please contact me!
