| Place of Origin: | China |
| Brand Name: | FESTO |

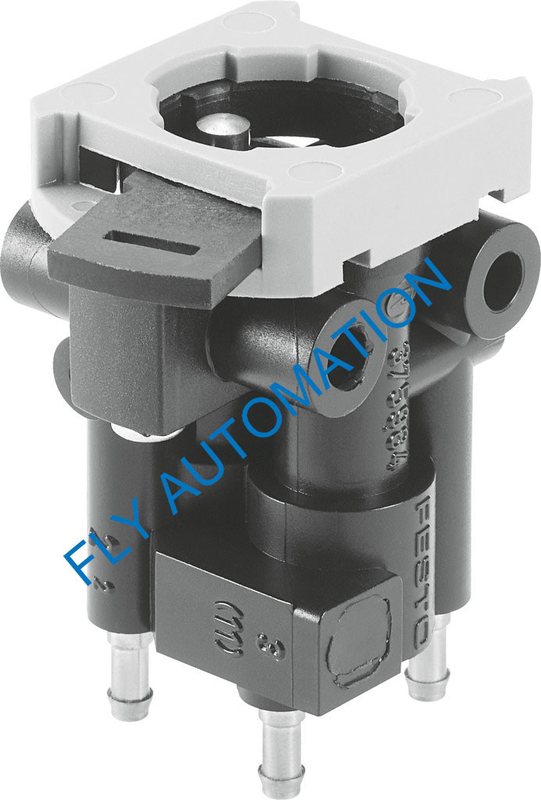

| Model Number: | SV/O-3-PK-3X2 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD20-40 |

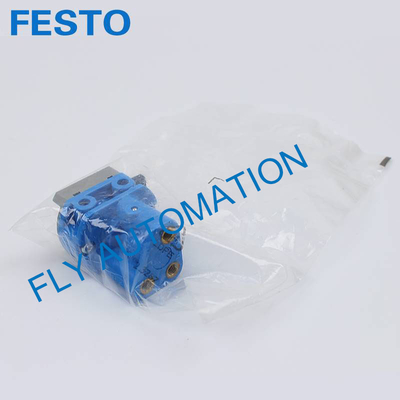

| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 pcs per month |
| Brand: | FESTO | Part No: | 184135 |
|---|---|---|---|
| Type: | SV/O-3-PK-3X2 | Pneumatic Connection, Port 1: | PK-3 |
| Pneumatic Connection, Port 2: | PK-3 | Type Of Mounting: | With Through-hole |
| High Light: | Festo Front Panel Valve,SV/O-3-PK-3X2 Pneumatic System Components,Pneumatic Front Panel Valve |
||
About product
1.Pushbuttons return to their initial switching position after they are actuated.
2.The basic valves are poppet valves that have no overlap:1. No overflow between the ducts during switching, 2.Limited self-cleaning by air flow during operation.
Technical Data
| Valve function | 2x3/2-way, monostable, closed |
| Standard nominal flow rate | 70 l/min |
| pneumatic working port | PK-3 |
| Type of reset | Mechanical spring |
| Nominal size | 2.5 mm |
| Sealing principle | Soft |
| Mounting position | optional |
| Type of piloting | Direct |
| Flow direction | Non-reversible |
| Symbol | 00997337 |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C-60°C |
| Product weight | 34 g |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | PK-3 |
| Pneumatic connection, port 2 | PK-3 |
| Material seals | NBR |
Dimensions – Basic valves
There are many models . Please contact me!
