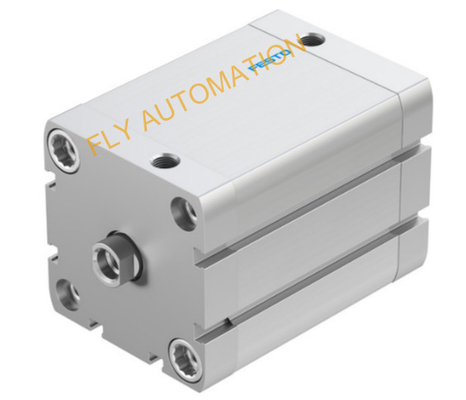

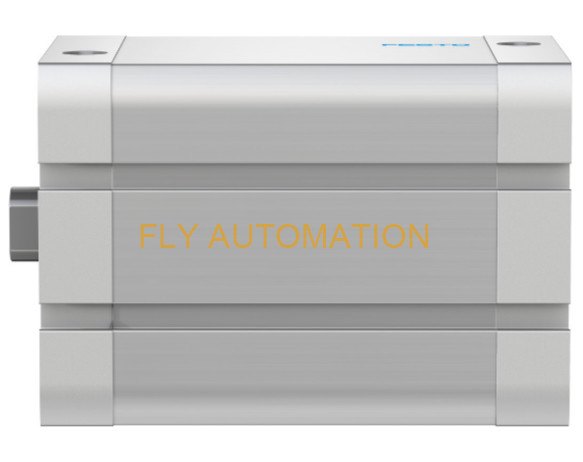

FESTO Compact Pneumatic Air Cylinders ADN-63-60-I-P-A 536349 GTIN4052568171452

Product Details:

Place of Origin:	China
Brand Name:	FESTO
Model Number:	ADN-63-60-I-P-A

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	EXW USD70-80
Packaging Details:	plastic bag, carton，OPP bag
Delivery Time:	7-10 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	100 pcs per month

Contact Now

Detailed Product Description

Brand:

FESTO

Part No:

536349

GTIN:

4052568171452

Type:

ADN-63-60-I-P-A

High Light:

Festo Compact Cylinder 536349

M10 Compact Pneumatic Air Cylinders

Female Thread Compact Air Cylinder

FESTO Compact cylinder ADN-63-60-I-P-A 536349 GTIN4052568171452 Pneumatic Air Cylinders

Name: FESTO Compact Pneumatic Air Cylinders ADN-63-60-I-P-A 536349 GTIN4052568171452
Brand: FESTO
SKU: ADN-63-60-I-P-A
Price: 70 USD
Availability: InStock
Rating: 4.7 (111 reviews)

About product

1.ISO cylinder according to ISO 21287 standard, with fixed or self-adjusting cushion, derivative multi.

2.Recommend a variety of derivative production systems for lithium ion battery manufacturing.

3.For position detection.

4.A wide variety of derivative types meet the requirements of personalized applications.

Technical Data

Stroke	60mm
Piston diameter	63mm
Piston rod thread	M10
Cushioning	Elastic cushioning rings/plates at both ends
Mounting position	optional
Conforms to standard	ISO 21287
Piston-rod end	Female thread
Position detection	Via proximity switch
Symbol	00991217
Variants	Piston rod at one end
Mode of operation	Double-acting
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C-80°C
Basic weight for 0 mm stroke	722 g
Additional weight per 10 mm stroke	59 g
Pneumatic connection	G1/8
Note on materials	RoHS-compliant
Material cover	Aluminium Anodised
Material seals	TPE-U(PUR)
Material piston rod	High-alloy steel
Material cylinder barrel	Wrought aluminium alloy Smooth anodised

Another stroke as below

Type	Order no	GTIN	Price
ADN-63-10-I-P-A	536342	4052568171391	USD70-80
ADN-63-15-I-P-A	536343	4052568171407	USD70-80
ADN-63-20-I-P-A	536344	4052568005597	USD70-80
ADN-63-25-I-P-A	536345	4052568171414	USD70-80
ADN-63-30-I-P-A	536346	4052568171421	USD70-80
ADN-63-40-I-P-A	536347	4052568171438	USD70-80
ADN-63-50-I-P-A	536348	4052568171445	USD70-80
ADN-63-60-I-P-A	536349	4052568171452	USD70-80
ADN-63-80-I-P-A	536350	4052568171469	USD70-80

Sectional view

FESTO Compact Pneumatic Air Cylinders ADN-63-60-I-P-A 536349 GTIN4052568171452

There are so many kinds. Hurry to call me!
