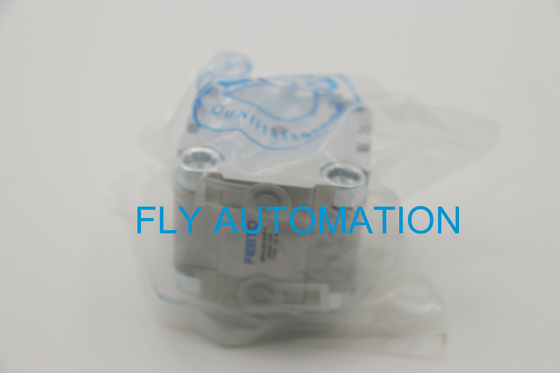

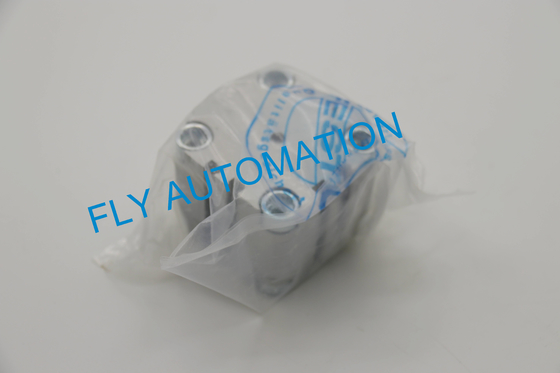

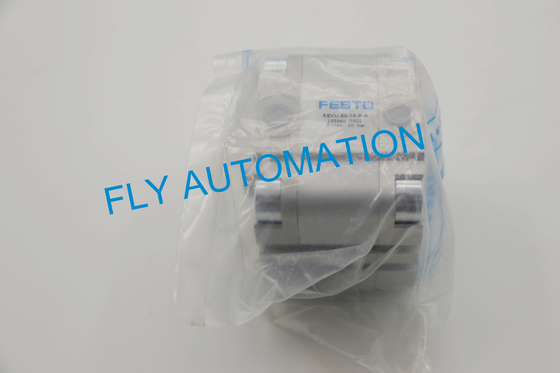

FESTO Compact Cylinder Pneumatic Air Cylinders AEVU-50-10-P-A 156960

FESTO Compact Cylinder Pneumatic Air Cylinders AEVU-50-10-P-A 156960

  • FESTO Compact Cylinder Pneumatic Air Cylinders AEVU-50-10-P-A 156960
  • FESTO Compact Cylinder Pneumatic Air Cylinders AEVU-50-10-P-A 156960
  • FESTO Compact Cylinder Pneumatic Air Cylinders AEVU-50-10-P-A 156960
FESTO Compact Cylinder Pneumatic Air Cylinders AEVU-50-10-P-A 156960
Product Details:
Brand Name: FESTO
Model Number: AEVU-50-10-P-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 80-100
Packaging Details: Plastic bags,Boxes, Cartons
Delivery Time: 7-10 working days
Payment Terms: T/T , Western Union
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
Model Code: AEVU-50-10-P-A Color: Silvery
Name: Cylinder Brand: FESTO
Ambient Temperature: -20°C-80°C Pneumatic Connection: G1/8
Highlight:

156960 Pneumatic Air Cylinders

,

AEVU-50-10-P-A Compact Cylinder

,

Pneumatic Compact FESTO Cylinder

FESTO Compact cylinder AEVU-50-10-P-A 156960 Pneumatic Air Cylinders



About Product

Foot mounting HUA For piston @ 12 ... 100 mm Foot mounting HNC For piston @ 125 mm (not illustrated) Material: HUA/HNC: Galvanised steel HUA-...-R3: Steel, silver protective coating CRHNC: High-alloy stainless steel

Mode of operation:Single-acting Pushing

Pneumatic connection:G1/8

weight:632g

Material collar screws:Galvanised steel



Technical data



Stroke 10 mm
Piston diameter 50 mm
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Mode of operation Single-acting Pushing
Piston-rod end Female thread
Variants Piston rod at one end
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Basic weight for 0 mm stroke 560 g
Additional weight per 10 mm stroke 72 g
Pneumatic connection G1/8
Material collar screws Galvanised steel
Material cover Wrought aluminium alloy
Material dynamic seals NBR TPE-U(PU)
Material piston rod High-alloy steel
Material cylinder barrel Wrought aluminium alloy





There are so many models,please contact with me.
