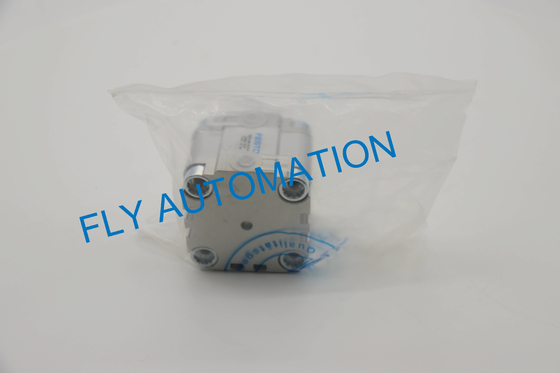

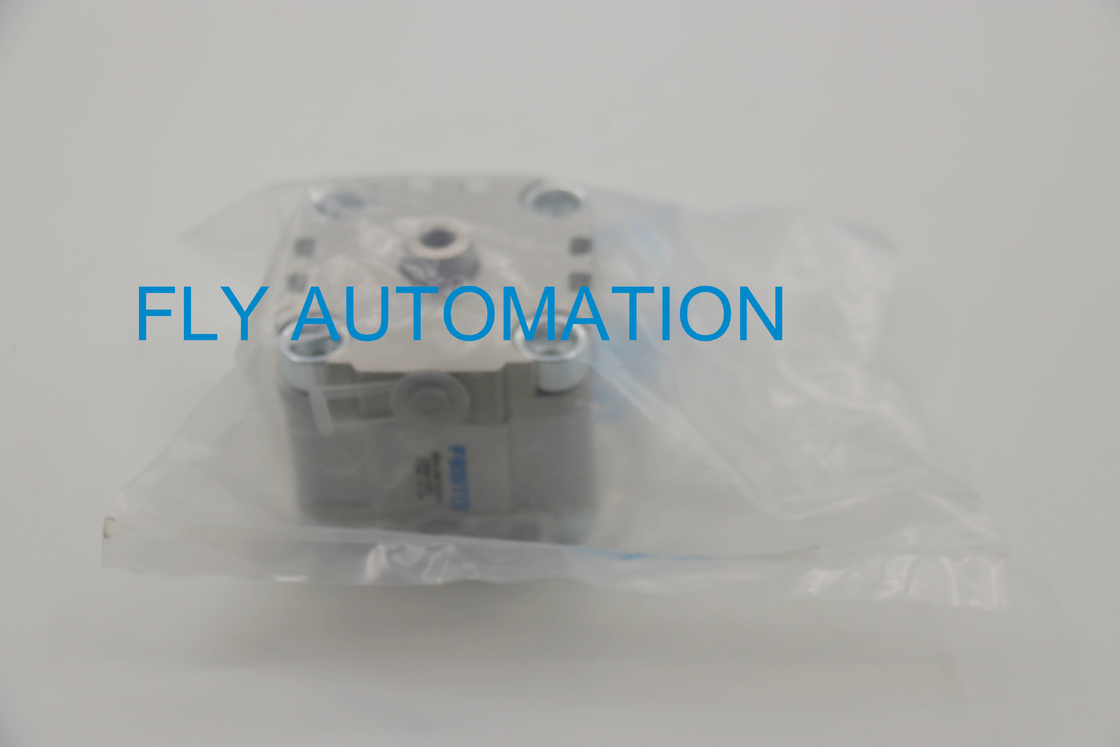

FESTO Compact Cylinder AEVU-50-20-P-A 156962 Pneumatic Air Cylinders Female Thread

FESTO Compact Cylinder AEVU-50-20-P-A 156962 Pneumatic Air Cylinders Female Thread

  • FESTO Compact Cylinder AEVU-50-20-P-A 156962 Pneumatic Air Cylinders Female Thread
  • FESTO Compact Cylinder AEVU-50-20-P-A 156962 Pneumatic Air Cylinders Female Thread
  • FESTO Compact Cylinder AEVU-50-20-P-A 156962 Pneumatic Air Cylinders Female Thread
FESTO Compact Cylinder AEVU-50-20-P-A 156962 Pneumatic Air Cylinders Female Thread
Product Details:
Brand Name: FESTO
Model Number: AEVU-50-20-P-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 80-100
Packaging Details: Plastic bags,Boxes, Cartons
Delivery Time: 7-10 working days
Payment Terms: T/T , Western Union
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
Model Code: AEVU-50-20-P-A Color: Silvery
Part No: 156962 Material Cylinder Barrel: Wrought Aluminium Alloy
Piston-rod End: Female Thread LABS (PWIS) Conformity: VDMA24364-B1/B2-L
Highlight:

Female Thread Pneumatic Air Cylinders

,

156962 Pneumatic Air Cylinders

,

FESTO Pneumatic Compact Cylinder

FESTO Compact cylinder AEVU-50-20-P-A 156962 Pneumatic Air Cylinders



About Product

Piston rod at one end Pushing

Cushioning:Elastic cushioning rings/plates at both ends

Mode of operation:Single-acting Pushing

Design:Piston Piston rod

Symbol:'00991729



Technical data

Stroke 20 mm
Piston diameter 50 mm
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Mode of operation Single-acting Pushing
Piston-rod end Female thread
Design Piston Piston rod
Position detection Via proximity switch
Symbol 00991729
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Basic weight for 0 mm stroke 560 g
Pneumatic connection G1/8
Material collar screws Galvanised steel
Material cover Wrought aluminium alloy
Material dynamic seals NBR TPE-U(PU)
Material piston rod High-alloy steel
Material cylinder barrel Wrought aluminium alloy



Type codes

FESTO Compact Cylinder AEVU-50-20-P-A 156962 Pneumatic Air Cylinders Female Thread



There are so many models,please contact with me.
