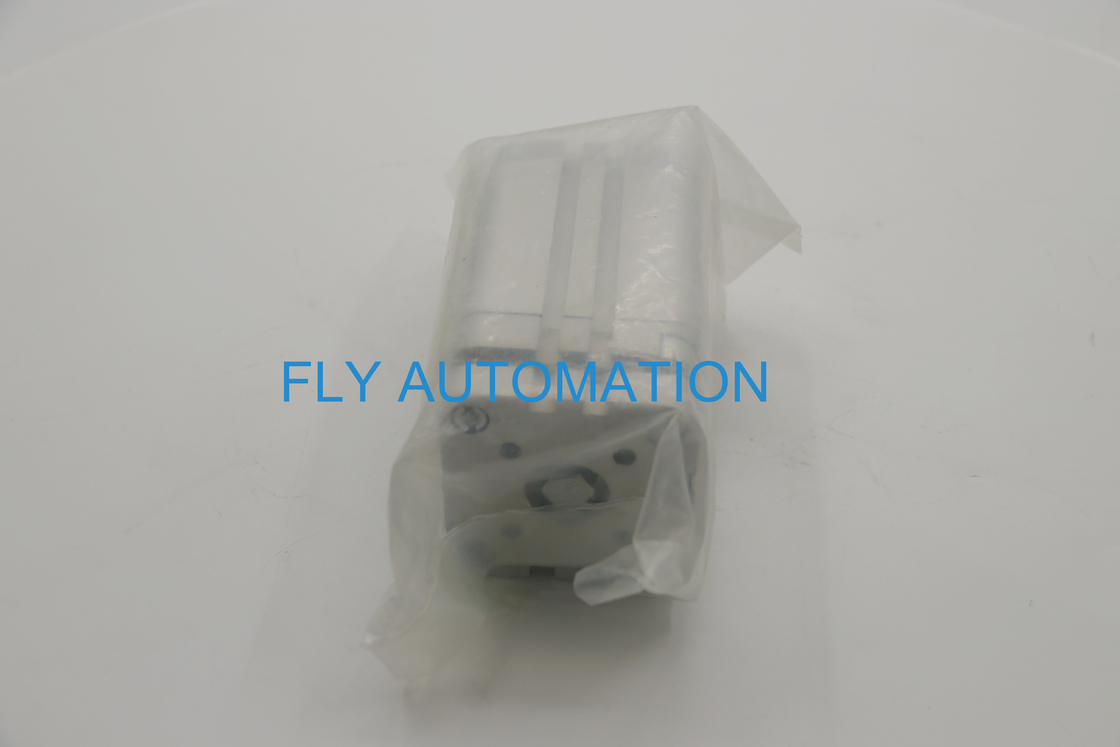

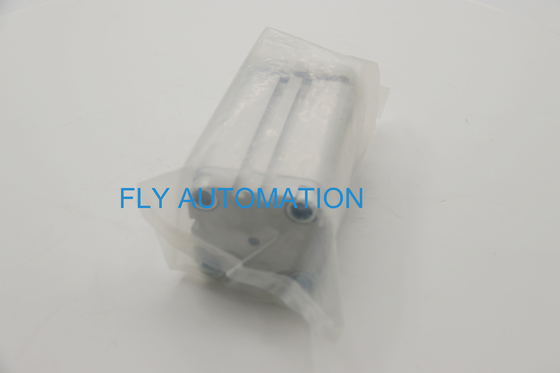

FESTO Compact cylinder ADVUL-50-80-P-A 156902 Pneumatic Air Cylinders

FESTO Compact cylinder ADVUL-50-80-P-A 156902 Pneumatic Air Cylinders

  • FESTO Compact cylinder ADVUL-50-80-P-A 156902   Pneumatic Air Cylinders
  • FESTO Compact cylinder ADVUL-50-80-P-A 156902   Pneumatic Air Cylinders
FESTO Compact cylinder ADVUL-50-80-P-A 156902   Pneumatic Air Cylinders
Product Details:
Brand Name: FESTO
Model Number: ADVUL-50-80-P-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD100-120
Packaging Details: plastic bag, carton,OPP bag
Delivery Time: 8-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Type: ADVUL-50-80-P-A Part No: 156902
Brand: FESTO Mode Of Operation: Double-acting
Material Cylinder Barrel: Wrought Aluminium Alloy Pneumatic Connection: G1/8

FESTO Compact cylinder ADVUL-50-80-P-A 156902 Pneumatic Air Cylinders



About product

Pneumatic connection:G1/8
Material collar screws:Galvanised steel
Material cover:Wrought aluminium alloy
Material piston rod:High-alloy steel
Color:Silver



Technical Data

Stroke 80 mm
Piston diameter 50 mm
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Design Piston Piston rod
Position detection Via proximity switch
Symbol 00991737
Variants Piston rod at one end
Protection against torque/guide Guide rod with yoke
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Pneumatic connection G1/8
Material collar screws Galvanised steel
Material cover Wrought aluminium alloy
Material dynamic seals NBR TPE-U(PU)
Material piston rod High-alloy steel
Material cylinder barrel Wrought aluminium alloy



Materials

FESTO Compact cylinder ADVUL-50-80-P-A 156902   Pneumatic Air Cylinders
