Place of Origin: | China |
Brand Name: | FESTO |
Model Number: | ADNGF-16-40-P-A |
Minimum Order Quantity: | 1pc |
---|---|
Price: | EXW USD35-45 |
Packaging Details: | plastic bag, carton,OPP bag |
Delivery Time: | 10-15working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 50 pcs per month |
Type: | ADNGF-16-40-P-A | Part No: | 554218 |
---|---|---|---|
Brand: | FESTO | GTIN: | 4052568198466 |
Highlight: | 554218 Pneumatic Air Cylinders,GTIN4052568198466 Pneumatic Air Cylinders |
About product
1.ISO 21287
2.Piston rod secured against rotation by a guide rod and yoke plate.
3.Plain bearing.
4.Cushioning types:Cushioning P .
Technical Data
Stroke | 40 mm |
Piston diameter | 16 mm |
Based on standard | ISO 21287 |
Cushioning | Elastic cushioning rings/plates at both ends |
Mounting position | optional |
Design | Piston Piston rod Profile barrel |
Position detection | Via proximity switch |
Protection against torque/guide | Guide rod with yoke |
Mode of operation | Double-acting |
Corrosion resistance class CRC | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C-80°C |
Basic weight for 0 mm stroke | 93 g |
Additional weight per 10 mm stroke | 16 g |
Pneumatic connection | M5 |
Note on materials | RoHS-compliant |
Material cover | Aluminium Anodised |
Material seals | TPE-U(PUR) |
Material piston rod | High-alloy steel |
Material cylinder barrel | Wrought aluminium alloy Smooth anodised |
Other size as below
Type | Order no | Weight(g) | Price |
ADNGF-16-5-P-A | 554212 | 101 | USD35-45 |
ADNGF-16-10-P-A | 554213 | 109 | USD35-45 |
ADNGF-16-15-P-A | 554214 | 117 | USD35-45 |
ADNGF-16-20-P-A | 554215 | 125 | USD35-45 |
ADNGF-16-25-P-A | 554216 | 133 | USD35-45 |
ADNGF-16-30-P-A | 554217 | 141 | USD35-45 |
ADNGF-16-40-P-A | 554218 | 157 | USD35-45 |
ADNGF-16-50-P-A | 554219 | 173 | USD35-45 |
At a glance

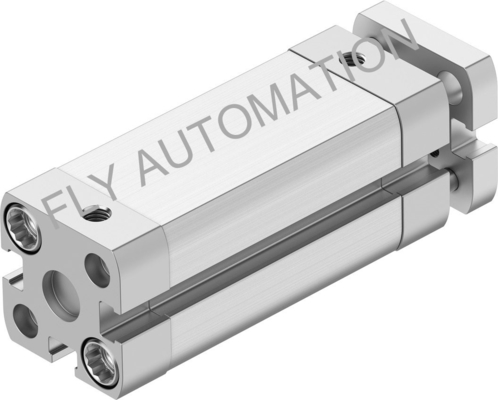

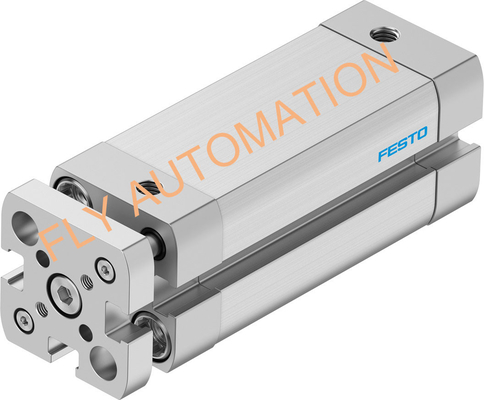

With guide rod and yoke plate
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.
There are so many kinds. Hurry to call me!
