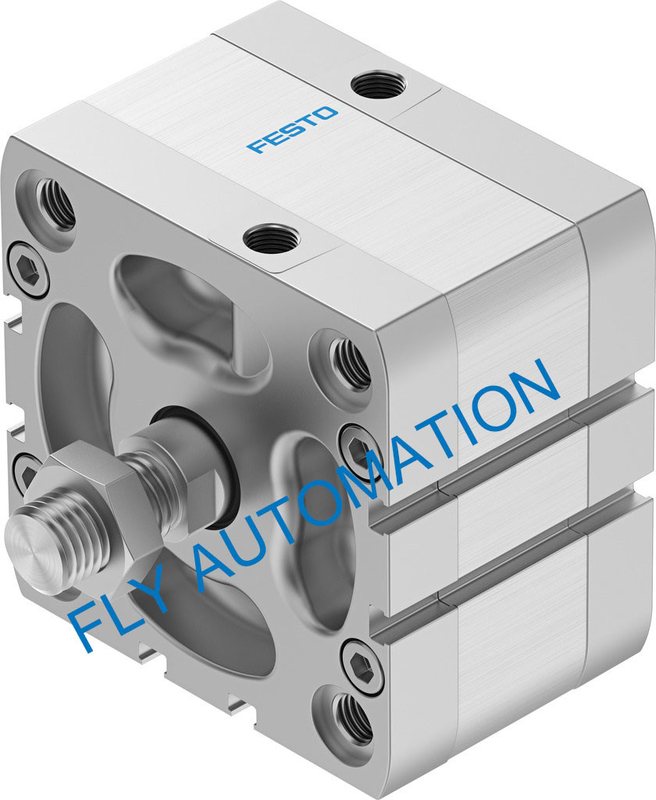

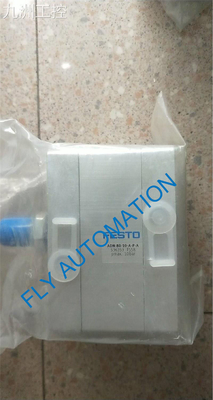

FESTO Compact Cylinder ADN-80-10-A-P-A 536353 Pneumatic Air Cylinders

FESTO Compact Cylinder ADN-80-10-A-P-A 536353 Pneumatic Air Cylinders

  • FESTO Compact Cylinder ADN-80-10-A-P-A 536353 Pneumatic Air Cylinders
  • FESTO Compact Cylinder ADN-80-10-A-P-A 536353 Pneumatic Air Cylinders
FESTO Compact Cylinder ADN-80-10-A-P-A 536353 Pneumatic Air Cylinders
Product Details:
Brand Name: FESTO
Model Number: ADN-80-10-A-P-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 80-100
Packaging Details: Plastic bags,Boxes, Cartons
Delivery Time: 7-10 working days
Payment Terms: T/T , Western Union
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
Model Code: ADN-80-10-A-P-A Part No: 536353
Brand: FESTO Stroke: 10 Mm
Piston Diameter: 80 Mm Piston Rod Thread: M16x1.5
Highlight:

ADN-80-10-A-P-A

,

FESTO Double Acting Pneumatic Cylinder

,

536353

FESTO Compact cylinder ADN-80-10-A-P-A 536353 Pneumatic Air Cylinders



About Product

Integrated cushioning for absorbing residual energy.

Long service life thanks to exceptional cushioning characteristics and low friction values.



Technical data

Stroke 10 mm
Piston diameter 80 mm
Piston rod thread M16x1.5
Cushioning Elastic cushioning rings/plates at both ends
Conforms to standard ISO 21287
Piston-rod end Male thread
Symbol 00991217
Variants Piston rod at one end
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Basic weight for 0 mm stroke 1121 g
Additional weight per 10 mm stroke 79 g
Pneumatic connection G1/8
Note on materials RoHS-compliant
Material cover Die-cast aluminium, coated
Material seals TPE-U(PUR)
Material piston rod High-alloy steel
Material cylinder barrel Smooth-anodised wrought aluminium alloy



There are so many models ,please contact with me.



Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.
