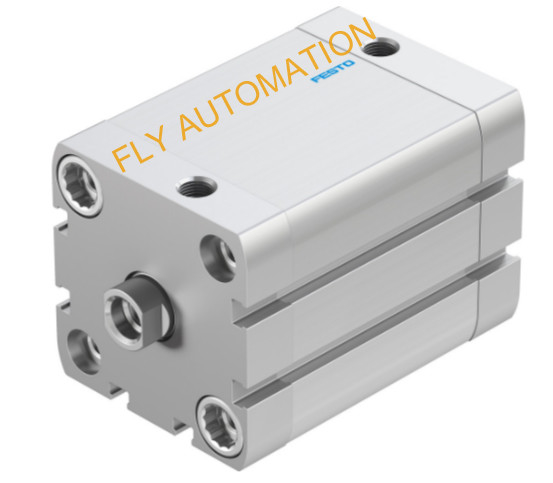

FESTO Compact cylinder ADN-50-50-I-P-A 536327 GTIN4052568171278 Pneumatic Air Cylinders

Product Details:

Place of Origin:	China
Brand Name:	FESTO
Model Number:	ADN-50-50-I-P-A

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	EXW USD60-70
Packaging Details:	plastic bag, carton，OPP bag
Delivery Time:	7-10 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	100 pcs per month

Contact Now

Detailed Product Description

Brand:	FESTO	Part No:	536327
GTIN:	4052568171278	Type:	ADN-50-50-I-P-A
Corrosion Resistance Class CRC:	2 - Moderate Corrosion Stress	LABS (PWIS) Conformity:	VDMA24364-B1/B2-L
Highlight:	GTIN4052568171278 Pneumatic Air Cylinders , 536327 Pneumatic Air Cylinders , Compact cylinder Pneumatic Air Cylinders

FESTO Compact cylinder ADN-50-50-I-P-A 536327 GTIN4052568171278 Pneumatic Air Cylinders

Name: FESTO Compact cylinder ADN-50-50-I-P-A 536327 GTIN4052568171278 Pneumatic Air Cylinders
Brand: FLY AUTOMATION
SKU: ADN-50-50-I-P-A
Price: 65.00 USD
Availability: InStock

About product

1.Stable performance.

2.High quality material selection.

3.Seiko forging.

Technical Data

Stroke	50mm
Piston diameter	50mm
Piston rod thread	M10
Cushioning	Elastic cushioning rings/plates at both ends
Mounting position	optional
Conforms to standard	ISO 21287
Piston-rod end	Female thread
Position detection	Via proximity switch
Symbol	00991217
Variants	Piston rod at one end
Mode of operation	Double-acting
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C-80°C
Basic weight for 0 mm stroke	540g
Additional weight per 10 mm stroke	51g
Pneumatic connection	G1/8
Note on materials	RoHS-compliant
Material cover	Aluminium Anodised
Material seals	TPE-U(PUR)
Material piston rod	High-alloy steel
Material cylinder barrel	Wrought aluminium alloy Smooth anodised

Another stroke as below

Type	Order no	GTIN	Price
ADN-50-5-I-P-A	536320	4052568171216	USD60-70
ADN-50-10-I-P-A	536321	4052568171223	USD60-70
ADN-50-15-I-P-A	536322	4052568171230	USD60-70
ADN-50-20-I-P-A	536323	4052568005580	USD60-70
ADN-50-25-I-P-A	536324	4052568171247	USD60-70
ADN-50-30-I-P-A	536325	4052568171254	USD60-70
ADN-50-40-I-P-A	536326	4052568171261	USD60-70
ADN-50-50-I-P-A	536327	4052568171278	USD60-70
ADN-50-60-I-P-A	536328	4052568171285	USD60-70
ADN-50-80-I-P-A	536329	4052568171292	USD60-70

Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.

Dimensions – Basic version

There are so many kinds. Hurry to call me!
