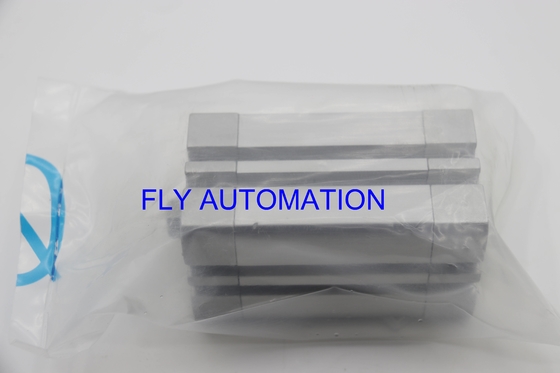

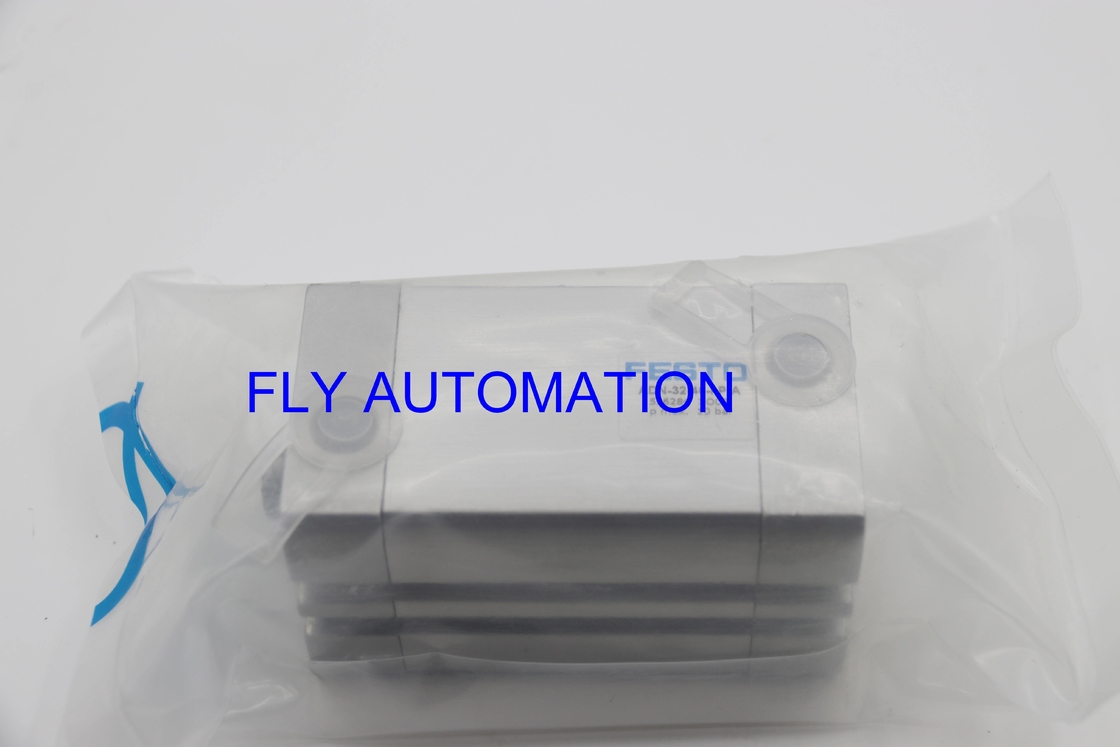

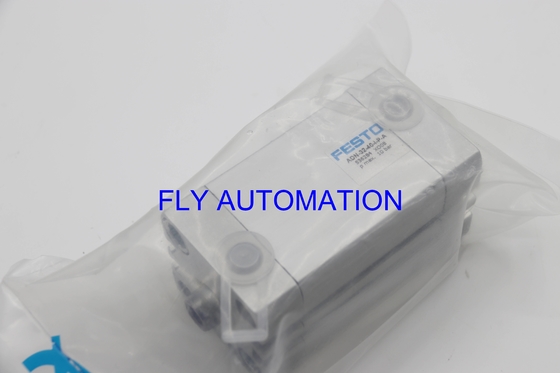

FESTO Compact Cylinder ADN-32-40-I-P-A 536284 GTIN4052568087814

FESTO Compact Cylinder ADN-32-40-I-P-A 536284 GTIN4052568087814

  • FESTO Compact Cylinder ADN-32-40-I-P-A 536284 GTIN4052568087814
  • FESTO Compact Cylinder ADN-32-40-I-P-A 536284 GTIN4052568087814
  • FESTO Compact Cylinder ADN-32-40-I-P-A 536284 GTIN4052568087814
FESTO Compact Cylinder ADN-32-40-I-P-A 536284 GTIN4052568087814
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: ADN-32-40-I-P-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD30-50
Packaging Details: Plastic bag, Carton
Delivery Time: 7-10working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Part No: 536284 Type: ADN-32-40-I-P-A
Brand: FESTO Stroke: 40 Mm
Piston Diameter: 32 Mm Color: Silver
Highlight:

Pneumatic Compact Cylinder

,

ADN-32-40-I-P-A Compact Cylinder

,

536284 Pneumatic Air Cylinders

FESTO Compact cylinder ADN-32-40-I-P-A 536284 GTIN4052568087814

About product

1.Easy to mount with a comprehensive range of mounting accessories for just about every type of installation.

2.Highly flexible thanks to the wide range of variants.

3.Contactless position sensing using proximity switches.

4.Optimised manufacturing methods, patented technology and more than 40 years of experience in the field of cylinders make Festo and ADN/AEN a great partner.

5.Integrated cushioning for absorbing residual energy.

6.Long service life thanks to exceptional cushioning characteristics and low friction values.



Technical Data

Stroke 40 mm
Piston diameter 32 mm
Piston rod thread M8
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Conforms to standard ISO 21287
Piston-rod end Female thread
Position detection Via proximity switch
Symbol 00991217
Variants Piston rod at one end
Operating pressure 0.06 MPa ... 1 MPa
Operating pressure 0.6 bar ... 10 bar
Mode of operation Double-acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cleanroom class Class 6 according to ISO 14644-1
Ambient temperature -20°C-80°C
Basic weight for 0 mm stroke 265 g
Pneumatic connection G1/8
Note on materials RoHS-compliant
Material collar screws Steel
Material cover Anodised wrought aluminium alloy
Material seals TPE-U(PUR)
Material piston rod High-alloy steel
Material cylinder barrel Smooth-anodised wrought aluminium alloy



General technical data

FESTO Compact Cylinder ADN-32-40-I-P-A 536284 GTIN4052568087814



A wide range of products with excellent prices. Please contact me!
