| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | ADN-32-30-I-P-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD40-50 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100 pcs per month |
| Part No: | 536283 | Brand: | FESTO |
|---|---|---|---|
| Type: | ADN-32-30-I-P-A | GTIN: | 4052568005511 |
| Stroke: | 30 Mm | Piston Diameter: | 32 Mm |
About product

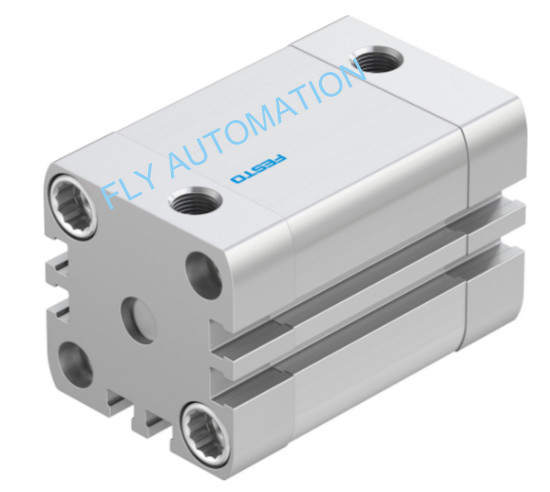

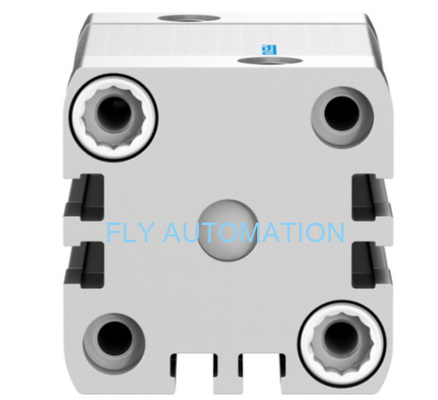

1.The compact cylinder is a cylinder with a very compact installation length relative to the working stroke, which is used in the case of extremely limited space and low transverse load requirements.
2.It belongs to the directly installed cylinder group and can be installed without any specific installation accessories.
3.Compact cylinders require up to 50% less space than standard cylinders.
Technical Data
| Stroke | 30 mm |
| Piston diameter | 32 mm |
| Piston rod thread | M8 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 21287 |
| Piston-rod end | Female thread |
| Position detection | Via proximity switch |
| Symbol | 00991217 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Basic weight for 0 mm stroke | 265g |
| Additional weight per 10 mm stroke | 30g |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Aluminium Anodised |
| Material seals | TPE-U(PUR) |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | Wrought aluminium alloy Smooth anodised |
Another stroke as below
| Type | Order no | GTIN | Price |
| ADN-32-5-I-P-A | 536278 | 4052568087791 | USD40-50 |
| ADN-32-10-I-P-A | 536279 | 4052568005481 | USD40-50 |
| ADN-32-15-I-P-A | 536280 | 4052568005498 | USD40-50 |
| ADN-32-20-I-P-A | 536281 | 4052568005504 | USD40-50 |
| ADN-32-25-I-P-A | 536282 | 4052568087807 | USD40-50 |
| ADN-32-30-I-P-A | 536283 | 4052568005511 | USD40-50 |
| ADN-32-40-I-P-A | 536284 | 4052568087814 | USD40-50 |
| ADN-32-50-I-P-A | 536285 | 4052568087821 | USD40-50 |
| ADN-32-60-I-P-A | 536286 | 4052568170950 | USD40-50 |
| ADN-32-80-I-P-A | 536287 | 4052568170967 | USD40-50 |
Optimised manufacturing methods,patented technology and more than 40 years of experience in the field of cylinders make Festo and ADN/AEN a great team
Peripherals overview
There are so many kinds. Hurry to call me!
