| Brand Name: | FESTO |
| Model Number: | ADN-32- 250-A-P-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD80-100 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 10-12working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500 pcs per month |
| Type: | ADN-32- 250-A-P-A | Brand: | FESTO |
|---|---|---|---|
| Part No: | 536267 | Piston Diameter: | 32 Mm |
| Stroke: | 250 Mm | Ambient Temperature: | -40°C-120°C |
| High Light: | Compact Cylinder ADN-32- 250-A-P-A,536267 Pneumatic Air Cylinders,Smooth Anodised Aluminium Alloy Compact Cylinder |
||

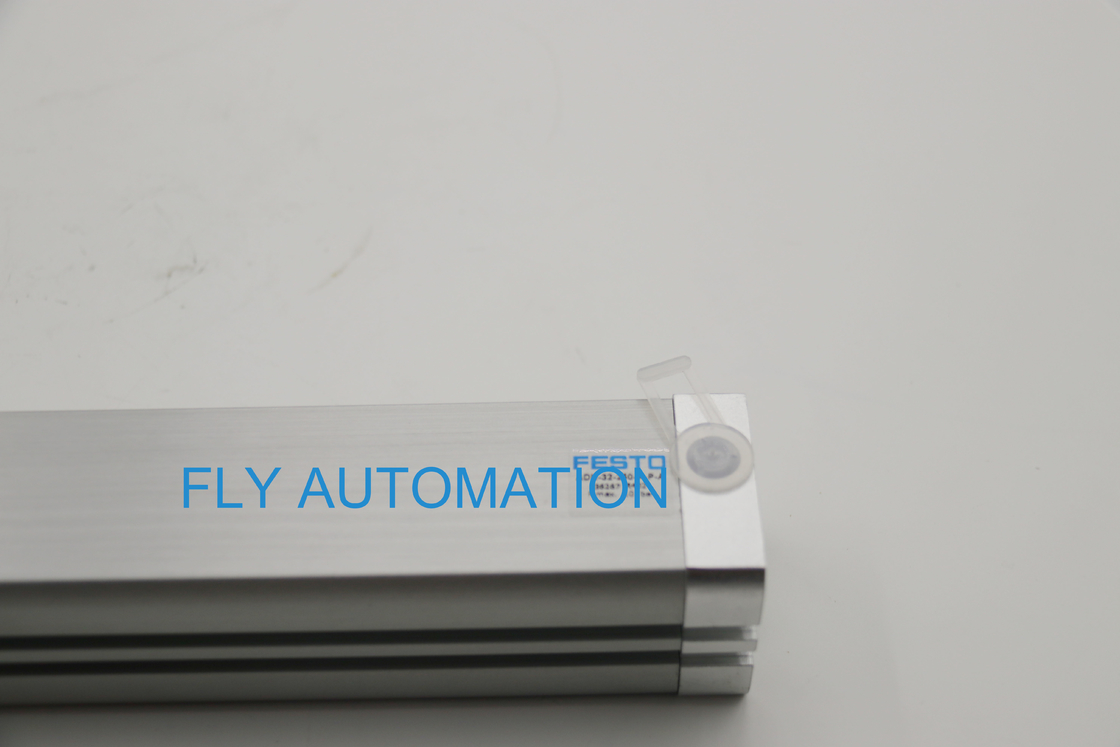

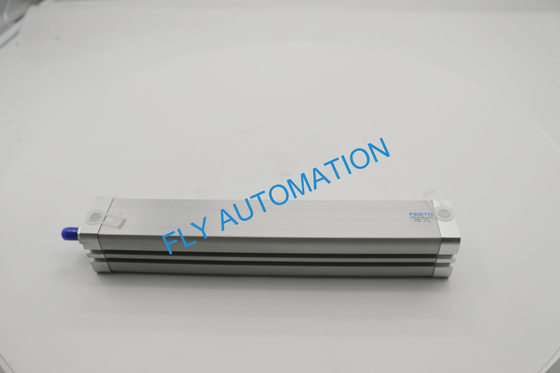

About product
The variants can be configured using a modular product system
The compact cylinders comply with or are based on the ISO 21287 standard, depending on the piston diameter
The ADN/AEN is characterised by its compact design and wide range of application thanks to the large number of variants
Technical Data
| Stroke | 250mm |
| Piston diameter | 32 mm |
| Mounting position | optional |
| Conforms to standard | ISO 21287 |
| Design | Piston Piston rod Profile barrel |
| Position detection | Via proximity switch |
| Mode of operation | Double-acting |
| CE mark (see declaration of conformity) | To EU Explosion Protection Directive (ATEX) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L VDMA24364 zone III |
| Ambient temperature | -40°C-120°C |
| Basic weight for 0 mm stroke | 265 g |
| Additional weight per 10 mm stroke | 30 g |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material collar screws | Steel |
| Material cover | Anodised wrought aluminium alloy |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
There are so many kinds. Please contact with me!
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
