| Brand Name: | FESTO |
| Model Number: | ADVUL-32-50-P-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD50-80 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 7-12working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 800 pcs per month |
| Brand: | FESTO | Type: | ADVUL-32-50-P-A |
|---|---|---|---|
| Part No: | 156881 | Symbol: | '00991497 |
| Mode Of Operation: | Double-acting | Material Dynamic Seals: | NBR TPE-U(PU) |
| High Light: | 156881 Pneumatic Air Cylinders,Compact Pneumatic Double Acting Air Cylinder |
||

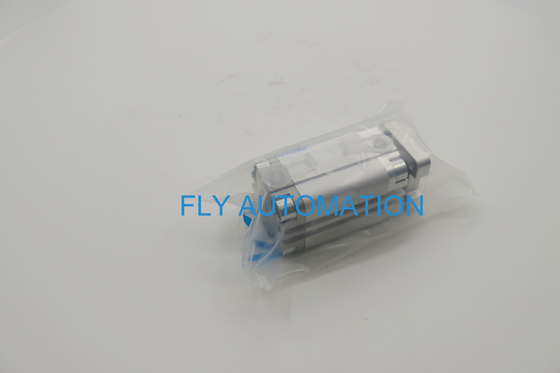

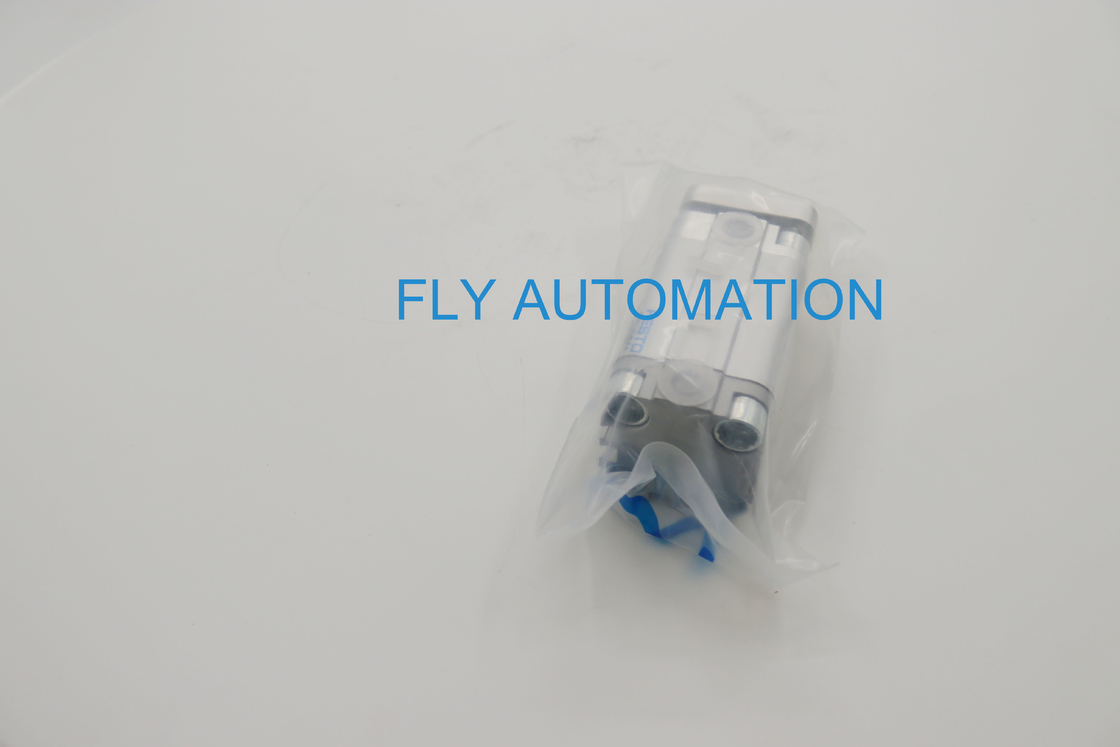

About product
Stroke:50 mm
Piston diameter:32mm
Mode of operation:Double-acting
Technical Data
| Stroke | 50mm |
| Piston diameter | 32 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Design | Piston Piston rod |
| Position detection | Via proximity switch |
| Symbol | 00991737 |
| Variants | Piston rod at one end |
| Protection against torque/guide | Guide rod with yoke |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Pneumatic connection | G1/8 |
| Material collar screws | Galvanised steel |
| Material cover | Wrought aluminium alloy |
| Material dynamic seals | NBR TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | Wrought aluminium alloy |
Data sheet
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.
There are so many kinds. Please contact with me!
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
