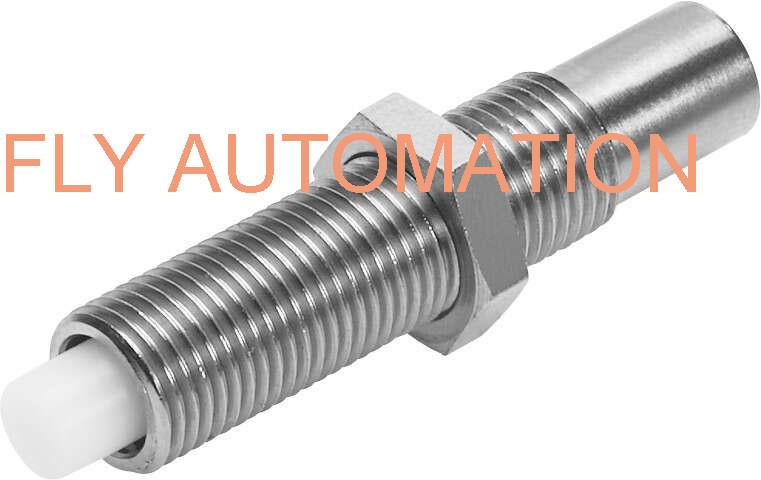

DYSC-7-5-Y1F 548012 Pneumatic Air Cylinders Shock Absorber GTIN4052568005986

DYSC-7-5-Y1F 548012 Pneumatic Air Cylinders Shock Absorber GTIN4052568005986

  • DYSC-7-5-Y1F 548012 Pneumatic Air Cylinders Shock Absorber GTIN4052568005986
  • DYSC-7-5-Y1F 548012 Pneumatic Air Cylinders Shock Absorber GTIN4052568005986
  • DYSC-7-5-Y1F 548012 Pneumatic Air Cylinders Shock Absorber GTIN4052568005986
DYSC-7-5-Y1F 548012 Pneumatic Air Cylinders Shock Absorber GTIN4052568005986
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DYSC-7-5-Y1F
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD60-70
Packaging Details: Plastic bag, Carton
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 pcs per month
Contact Now
Detailed Product Description
Part No: 548012 Type: DYSC-7-5-Y1F
GTIN: 4052568005986 Brand: FESTO
Stroke: 5 Mm Material Seals: NBR
Highlight:

Pneumatic Cylinder Shock Absorber

,

NBR Seals Shock Absorber

,

5mm Air Shock Absorber

FESTO Shock absorber DYSC-7-5-Y1F 548012 GTIN4052568005986 Pneumatic Air Cylinders

Shock absorber DYSC

1.Universal screw-in hydraulic shock absorber.

2.Rapidly increasing cushioning force path thanks to path-controlled flow control function.

3.Short cushioning stroke.
4.Hydraulic shock absorber with path-controlled flow control function.

5.Suitable for rotary drives.

6.With metal fixed stop.

7.Hydraulic shock absorber with path-controlled flow control function.



Technical Data

Size 7
Stroke 5 mm
Cushioning Self-adjusting
Mounting position optional
Position detection Without
Symbol 00991497
Max. impact speed 3 m/s
Reset time at room temperature 0.2 s
Reset time at min. ambient temperature1 1s
Mode of operation Single-acting Pushing
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B2-L
Ambient temperature -10°C-80°C
Cushioning length 5 mm
Max. stop force 300 N
Max. energy consumption per stroke 2 J
Max. energy consumption per hour 12000 J
Max. residual energy 0.01 J
Reset force 1.2 N
Product weight 17 g
Type of mounting Via lock nut
Note on materials RoHS-compliant
Material seals NBR
Material housing High-alloy steel
Material piston rod High-alloy steel



Another type as follow

Type Order no GTIN Weihght Price
DYSC-5-5-Y1F 548011 4052568093181 9 USD60-70
DYSC-7-5-Y1F 548012 4052568005986 17 USD60-70
DYSC-8-8-Y1F 548013 4052568189297 36 USD90-100
DYSC-12-12-Y1F 548014 4052568189303 81 USD90-100
DYSC-16-18-Y1F 553593 4052568197698 210 USD150-200



Data sheet

Dimensions

DYSC-7-5-Y1F 548012 Pneumatic Air Cylinders Shock Absorber GTIN4052568005986



The specifications are complete. I have everything you want,please call me immediately!
