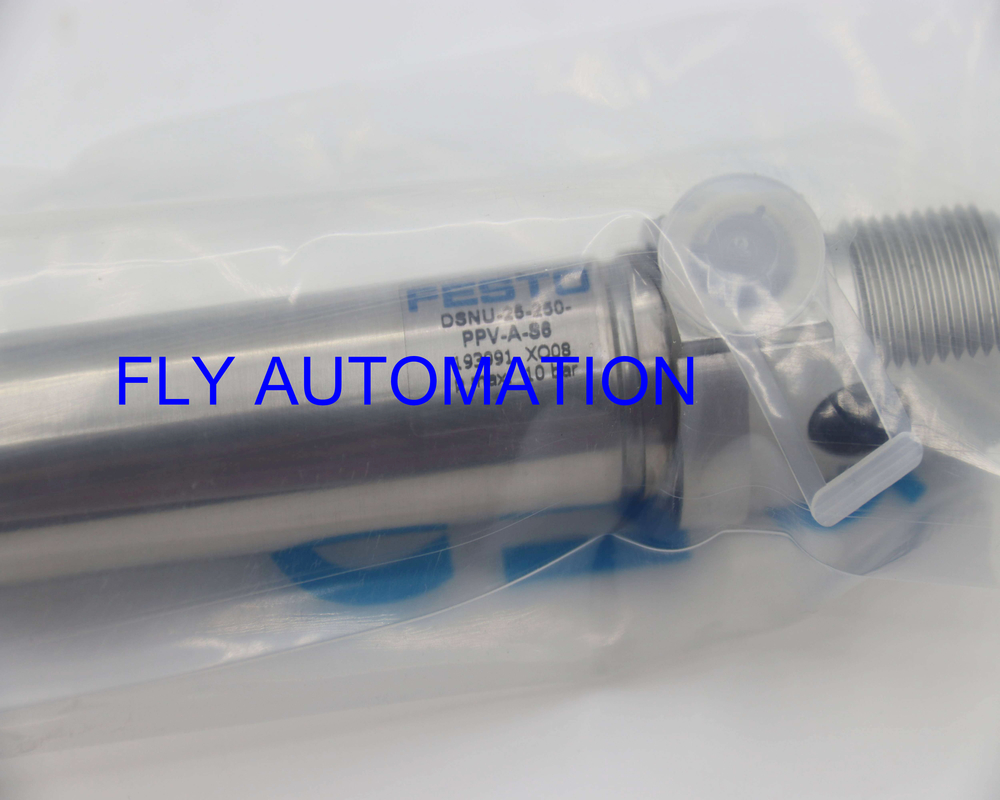

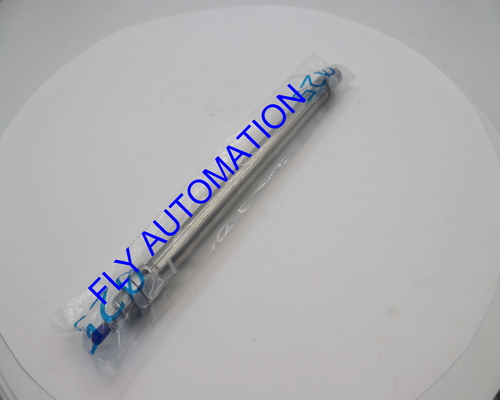

DSNU-25-250-PPV- A-S6 Pneumatic Air Cylinders FESTO ISO Cylinder 193991

DSNU-25-250-PPV- A-S6 Pneumatic Air Cylinders FESTO ISO Cylinder 193991

  • DSNU-25-250-PPV- A-S6 Pneumatic Air Cylinders FESTO ISO Cylinder 193991
  • DSNU-25-250-PPV- A-S6 Pneumatic Air Cylinders FESTO ISO Cylinder 193991
  • DSNU-25-250-PPV- A-S6 Pneumatic Air Cylinders FESTO ISO Cylinder 193991
DSNU-25-250-PPV- A-S6 Pneumatic Air Cylinders FESTO ISO Cylinder 193991
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DSNU-25-250-PPV- A-S6
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD50-60
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Type: DSNU-25-250-PPV- A-S6 Brand: FESTO
Part No: 193991 Stroke: 250 Mm
Piston Diameter: 25 Mm Color: Silver
Highlight:

DSNU-25-250-PPV- A-S6

,

Alloy Stainless Steel ISO Cylinder

,

ISO Cylinder 193991

FESTO ISO cylinder DSNU-25-250-PPV- A-S6 193991 Pneumatic Air Cylinders

About product

Stroke:250 mm

Piston diameter:25 mm

Conforms to standard:CETOP RP 52 P ISO 6432

Position detection:Via proximity switch

Pneumatic connection:G1/8

Note on materials: RoHS-compliant



Technical Data

Stroke 250 mm
Piston diameter 25 mm
Mounting positionoptional optional
Conforms to standard CETOP RP 52 P ISO 6432
Design Piston Piston rod Cylinder barrel
Position detection Via proximity switch
Protection against torque/guide Square piston rod
Mode of operation Double-acting
Type of mounting With accessories
Pneumatic connection G1/8
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy
Material seals NBR TPE-U(PU)
Material piston rod High-alloy stainless steel
Material cylinder barrel High-alloy stainless steel



There are so many kinds. Hurry to call me!
