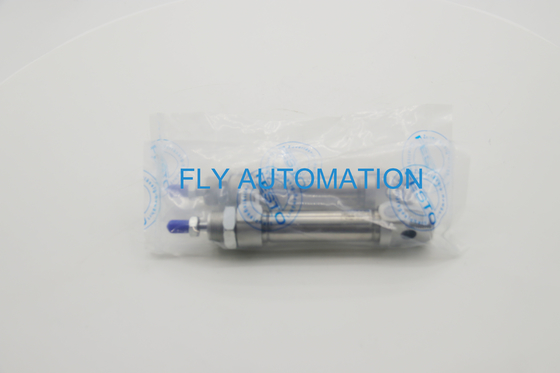

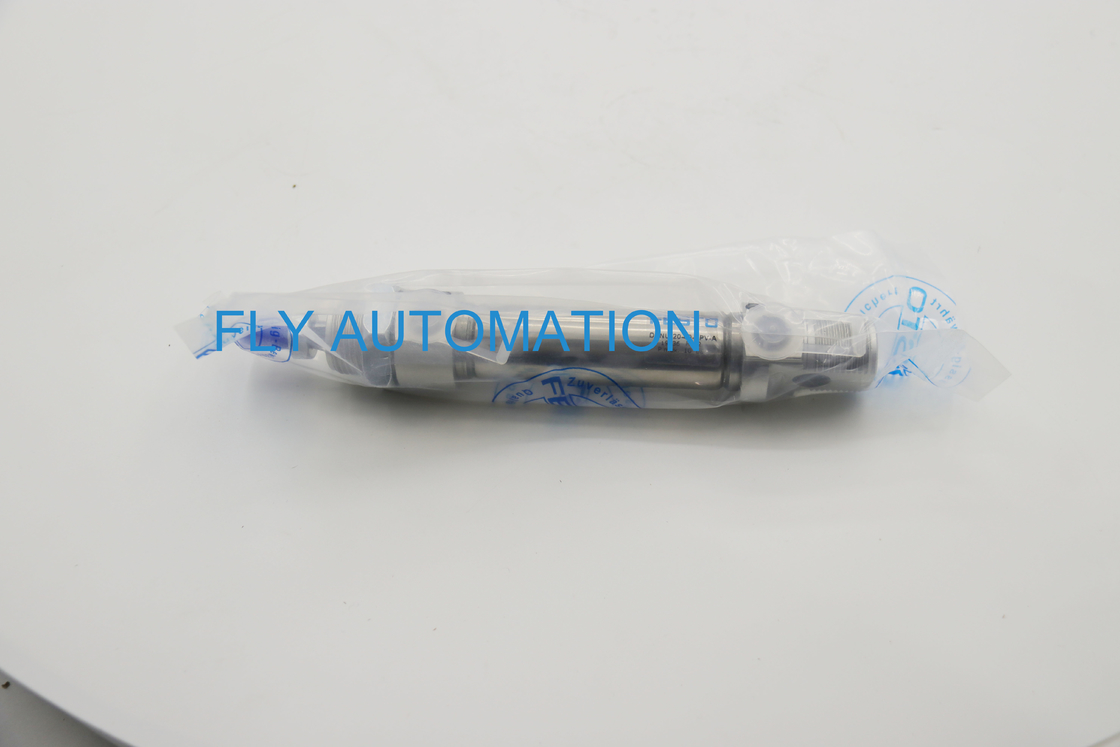

DSNU-20-80-PPV-A ISO Cylinder 19238 FESTO Pneumatic Air Cylinders

DSNU-20-80-PPV-A ISO Cylinder 19238 FESTO Pneumatic Air Cylinders

  • DSNU-20-80-PPV-A ISO Cylinder 19238 FESTO Pneumatic Air Cylinders
  • DSNU-20-80-PPV-A ISO Cylinder 19238 FESTO Pneumatic Air Cylinders
DSNU-20-80-PPV-A ISO Cylinder 19238 FESTO Pneumatic Air Cylinders
Product Details:
Brand Name: FESTO
Model Number: DSNU-20-80-PPV-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD25-35
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1200 pcs per month
Contact Now
Detailed Product Description
Type: DSNU-20-80-PPV-A Brand: FESTO
Part No: 19238 Stroke: 80 Mm
Corrosion Resistance Class CRC: 2 - Moderate Corrosion Stress Ambient Temperature: -20°C-80°C
Highlight:

DSNU-20-80-PPV-A

,

ISO Cylinder 19238

,

80mm Stroke Pneumatic Air Cylinders

ISO cylinder DSNU-20-80-PPV-A 19238 FESTO Pneumatic Air Cylinders



About product

Piston rod thread:M8
Cushioning:Pneumatic cushioning, adjustable at both ends
Cushioning length:15 mm
Material piston rod:High-alloy stainless steel
Ambient temperature: -20°C-80°C



Technical Data

Stroke 80 mm
Piston diameter 20 mm
Piston rod thread M8
Cushioning Pneumatic cushioning, adjustable at both ends
Mounting position optional
Piston-rod end Male thread
Design Piston Piston rod Cylinder barrel
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
Cleanroom class Class 6 according to ISO 14644-1
Ambient temperature -20°C-80°C
Cushioning length 15 mm
Basic weight for 0 mm stroke 186.8 g
Additional weight per 10 mm stroke 7.2 g
Pneumatic connection G1/8
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy Colourless anodised
Material seals NBR TPE-U(PU)
Material piston rod High-alloy stainless steel
Material cylinder barrel High-alloy stainless steel



Competitive Advantage

Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging, 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment
5) Loading inspection, and send loading photos before shipment.


There are so many models ,please contact with me.
