DSNU-20-100-P-A 19212 Pneumatic Air Cylinders ISO GTIN4052568009427

Product Details:

Place of Origin:	China
Brand Name:	FESTO
Model Number:	DSNU-20-100-P-A

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	EXW USD40-50
Packaging Details:	plastic bag, carton，OPP bag
Delivery Time:	7-10 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	100 pcs per month

Contact Now

Detailed Product Description

Type:	DSNU-20-100-P-A	Part No:	19212
Brand:	FESTO	GTIN:	4052568009427
Ambient Temperature:	-20°C-80°C	Material Piston Rod:	High-alloy Stainless Steel
High Light:	20mm Pneumatic Air Cylinders , 19212 Pneumatic Air Cylinders , Double Acting Compact Air Cylinder

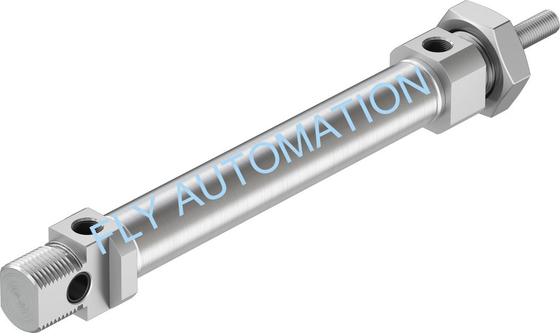

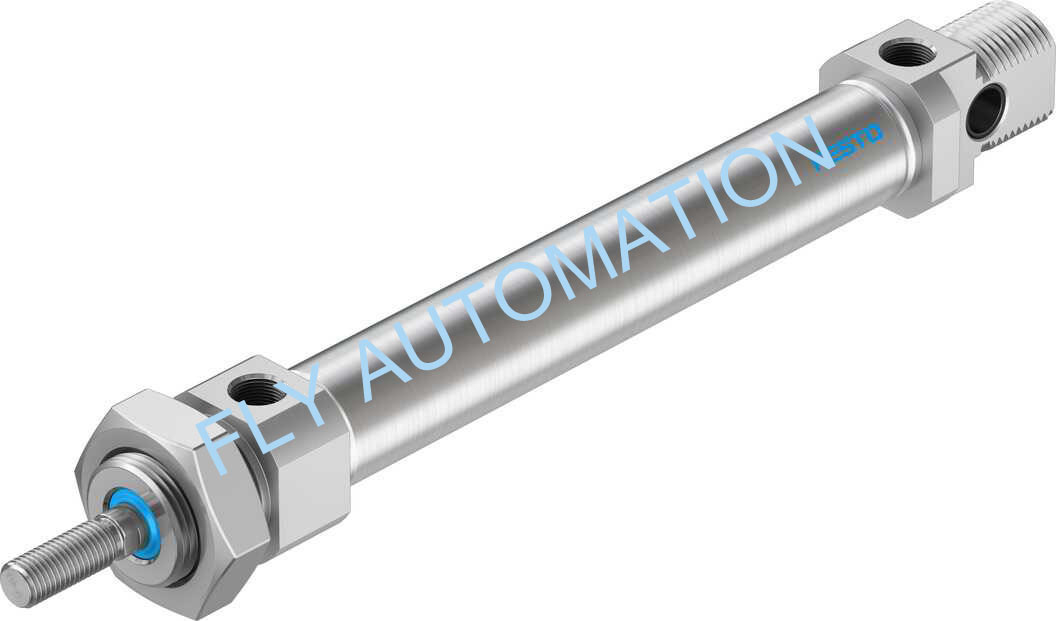

FESTO ISO cylinder DSNU-20-100-P-A 19212 GTIN4052568009427 Pneumatic Air Cylinders

Name: DSNU-20-100-P-A 19212 Pneumatic Air Cylinders ISO GTIN4052568009427
Brand: FESTO
SKU: DSNU-20-100-P-A
Price: 40 USD
Availability: InStock
Rating: 4.7 (161 reviews)

About product

1.Stainless steel piston rod.

2.Good running performance and long service life.

3.Extensive range of accessories makes it possible to install the cylinder virtually anywhere.

4.Piston rod with male thread.

5.Cylinder barrel made of stainless steel.

6.Bearing and end caps made of wrought aluminium alloy.

Technical Data

Stroke	100 mm
Piston diameter	20 mm
Piston rod thread	M8
Cushioning	Elastic cushioning rings/plates at both ends
Mounting position	optional
Conforms to standard	CETOP RP 52 P ISO 6432
Piston-rod end	Male thread
Design	Piston Piston rod Cylinder barrel
Position detection	Via proximity switch
Symbol	00991217
Variants	Piston rod at one end
Mode of operation	Double-acting
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 6 according to ISO 14644-1
Ambient temperature	-20°C-80°C
Impact energy in end positions	0.2 J
Basic weight for 0 mm stroke	186.8 g
Additional weight per 10 mm stroke	7.2 g
Type of mounting	With accessories
Pneumatic connection	G1/8
Note on materials	RoHS-compliant
Material cover	Wrought aluminium alloy Colourless anodised
Material seals	NBR TPE-U(PU)
Material piston rod	High-alloy stainless steel
Material cylinder barrel	High-alloy stainless steel

Other stroke as Below

Type	Order no	GTIN	Price
DSNU-20-10-P-A	19207	4052568003166	USD40-50
DSNU-20-15-P-A	1908282	4052568108632	USD40-50
DSNU-20-20-P-A	1908283	4052568108649	USD40-50
DSNU-20-25-P-A	19208	4052568003173	USD40-50
DSNU-20-30-P-A	1908284	4052568108656	USD40-50
DSNU-20-35-P-A	1908285	4052568108663	USD40-50
DSNU-20-40-P-A	19209	4052568003180	USD40-50
DSNU-20-50-P-A	19210	4052568003197	USD40-50
DSNU-20-60-P-A	1908286	4052568108670	USD40-50
DSNU-20-70-P-A	1908287	4052568108687	USD40-50
DSNU-20-80-P-A	19211	4052568003203	USD40-50
DSNU-20-100-P-A	19212	4052568009427	USD40-50
DSNU-20-125-P-A	19213	4052568003210	USD40-50
DSNU-20-150-P-A	1908288	4052568108694	USD40-50
DSNU-20-160-P-A	19214	4052568067038	USD40-50
DSNU-20-200-P-A	19215	4052568067045	USD40-50
DSNU-20-250-P-A	19216	4052568009434	USD40-50
DSNU-20-300-P-A	19217	4052568003227	USD40-50
DSNU-20-320-P-A	34718	4052568068066	USD40-50

Product detail

Cushioning types	Cushioning P
Mode of operation	The drive has elastic polymer flexible end-position cushioning
Application	Small loads
	Low speeds
	Low impact energies
Advantages	No adjustment required
Advantages	Saves tim
