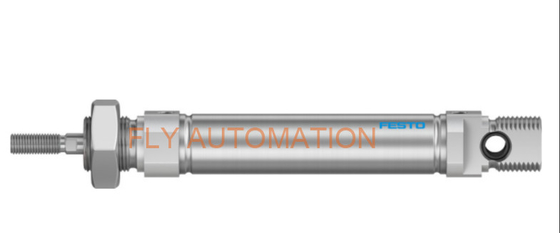

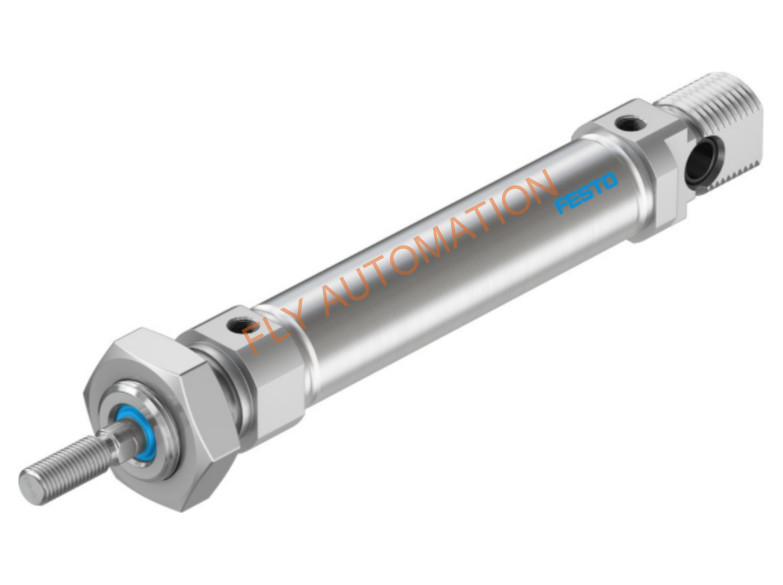

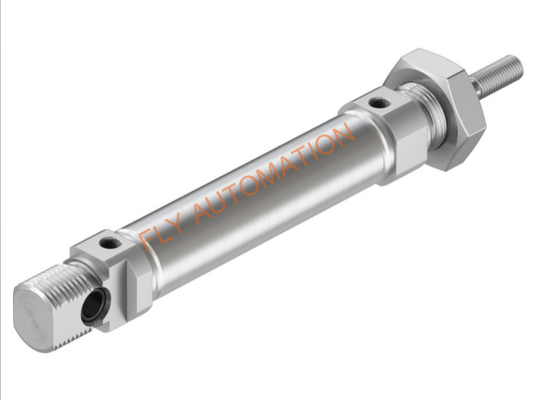

DSNU-16-40-PPS-A Cushioning PPS Pneumatic Air Cylinders 559264 GTIN4052568097158

DSNU-16-40-PPS-A Cushioning PPS Pneumatic Air Cylinders 559264 GTIN4052568097158

  • DSNU-16-40-PPS-A Cushioning PPS Pneumatic Air Cylinders 559264 GTIN4052568097158
  • DSNU-16-40-PPS-A Cushioning PPS Pneumatic Air Cylinders 559264 GTIN4052568097158
  • DSNU-16-40-PPS-A Cushioning PPS Pneumatic Air Cylinders 559264 GTIN4052568097158
DSNU-16-40-PPS-A Cushioning PPS Pneumatic Air Cylinders 559264 GTIN4052568097158
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DSNU-16-40-PPS-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD40-50
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 pcs per month
Contact Now
Detailed Product Description
Brand: FESTO Type: DSNU-16-40-PPS-A
Part No: 559264 GTIN: 4052568097158
Highlight:

Cushioning PPS Pneumatic Air Cylinders

,

559264 Compact Air Cylinder

,

M6 Pneumatic Cylinder

FESTO ISO cylinder DSNU-16-40-PPS-A 559264 GTIN4052568097158 Pneumatic Air Cylinders

About product

1.Thanks to PPS buffering, perfect buffering can be achieved at any time without adjustment.

2.Extremely durable due to low wear materials.

3.Easy to identify and re order with FESTO accessories.



Product detail

Cushioning types Cushioning PPS
Mode of operation The drive has self-adjusting end-position cushioning
Application Small to medium loads
Low to medium speeds
Medium impact energies
Advantages No adjustment required
Saves time
Powerful



Technical Data

Stroke 40 mm
Piston diameter 16 mm
Piston rod thread M6
Cushioning Self-adjusting pneumatic end-position cushioning
Mounting position optional
Conforms to standard CETOP RP 52 P ISO 6432
Piston-rod end Male thread
Design Piston Piston rod Cylinder barrel
Position detection Via proximity switch
Symbol 00992970
Variants Piston rod at one end
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cleanroom class Class 6 according to ISO 14644-1
Ambient temperature -20°C-80°C
Cushioning length 12 mm
Basic weight for 0 mm stroke 89.9 g
Additional weight per 10 mm stroke 4.6 g
Type of mounting With accessories
Pneumatic connection M5
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy Colourless anodised
Material seals NBR TPE-U(PU)
Material piston rod High-alloy stainless steel
Material cylinder barrel High-alloy stainless steel


Another stroke as follow

Type Order no GTIN Price
DSNU-16-10-PPS-A 1908274 4052568108557 USD40-50
DSNU-16-15-PPS-A 1908275 4052568108564 USD40-50
DSNU-16-20-PPS-A 1908276 4052568108571 USD40-50
DSNU-16-25-PPS-A 559263 4052568097141 USD40-50
DSNU-16-30-PPS-A 1908277 4052568108588 USD40-50
DSNU-16-35-PPS-A 1908278 4052568108694 USD40-50
DSNU-16-40-PPS-A 559264 4052568097158 USD40-50
DSNU-16-50-PPS-A 559265 4052568097165 USD40-50
DSNU-16-60-PPS-A 1908279 4052568108601 USD40-50
DSNU-16-70-PPS-A 1908280 4052568108618 USD40-50
DSNU-16-80-PPS-A 559266 4052568097172 USD40-50
DSNU-16-100-PPS-A 559267 4052568097189 USD40-50
DSNU-16-125-PPS-A 559268 4052568097196 USD40-50
DSNU-16-150-PPS-A 1908281 4052568108625 USD40-50
DSNU-16-160-PPS-A 559269 4052568097202 USD40-50
DSNU-16-200-PPS-A 559270 4052568097219 USD40-50



Cushioning PPS

DSNU-16-40-PPS-A Cushioning PPS Pneumatic Air Cylinders 559264 GTIN4052568097158

After-sale Service

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.



There are so many kinds. Hurry to call me!
