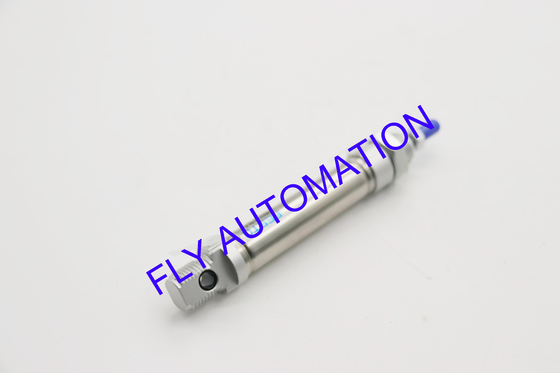

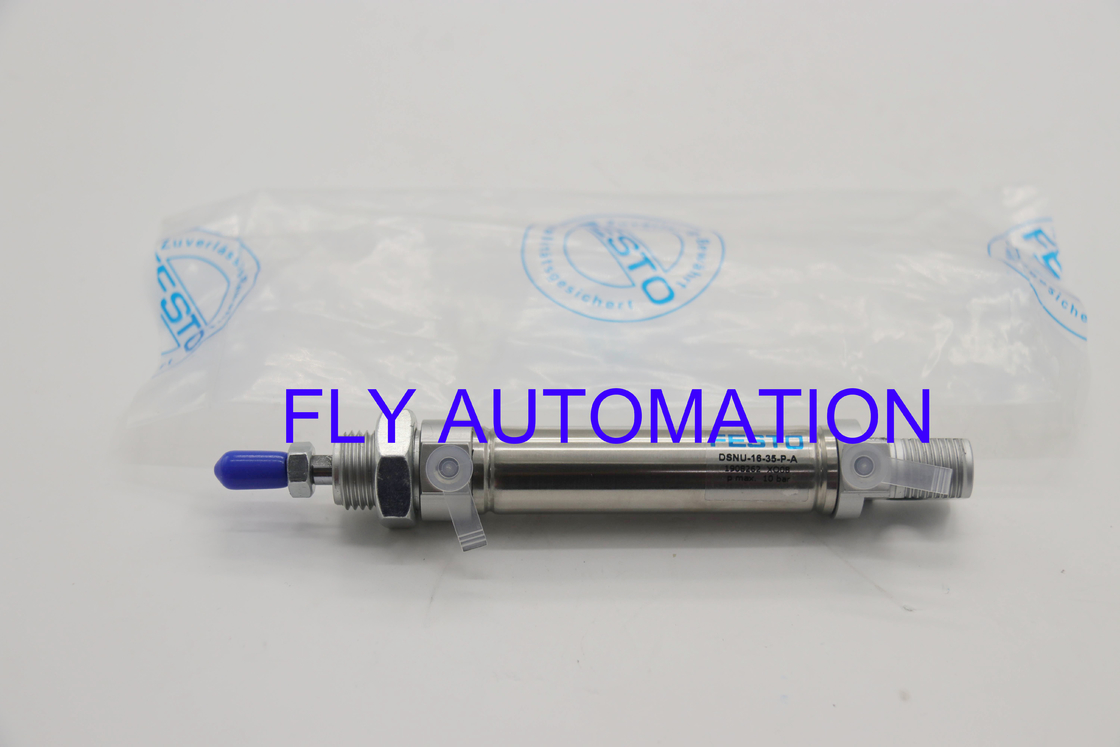

DSNU-16-35-P-A 1908262 Pneumatic Air Cylinders FESTO ISO Cylinder

DSNU-16-35-P-A 1908262 Pneumatic Air Cylinders FESTO ISO Cylinder

  • DSNU-16-35-P-A 1908262 Pneumatic Air Cylinders FESTO ISO Cylinder
  • DSNU-16-35-P-A 1908262 Pneumatic Air Cylinders FESTO ISO Cylinder
  • DSNU-16-35-P-A 1908262 Pneumatic Air Cylinders FESTO ISO Cylinder
DSNU-16-35-P-A 1908262 Pneumatic Air Cylinders FESTO ISO Cylinder
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DSNU-16-35-P-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD25-30
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 pcs per month
Contact Now
Detailed Product Description
Part No: 1908262 Type: DSNU-16-35-P-A
Brand: FESTO Material Piston Rod: High-alloy Stainless Steel
Stroke: 35 Mm Corrosion Resistance Class CRC: 2 - Moderate Corrosion Stress
Highlight:

FESTO ISO Pneumatic Air Cylinders

,

1908262 Pneumatic Air Cylinders

,

ISO Cylinder DSNU-16-35-P-A



FESTO ISO cylinder DSNU-16-35-P-A 1908262 Pneumatic Air Cylinders

About product

1.Cylinder barrel made of stainless steel.

2.Bearing and end caps made of wrought aluminium alloy.

3.Extensive range of accessories makes it possible to install the cylinder virtually anywhere.



Technical Data

Stroke 35 mm
Piston diameter 16 mm
Piston rod thread M6
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cleanroom class Class 6 according to ISO 14644-1
Ambient temperature -20°C-80°C
Basic weight for 0 mm stroke 89.9 g
Additional weight per 10 mm stroke 4.6 g
Type of mounting With accessories
Pneumatic connection M5
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy Colourless anodised
Material seals NBR TPE-U(PU)
Material piston rod High-alloy stainless steel



Datasheet

DSNU-16-35-P-A 1908262 Pneumatic Air Cylinders FESTO ISO Cylinder



FESTO's profile cylinder and pull rod cylinder are standard cylinders conforming to ISO15552 With self-adjusting throttle terminal position buffer.



There are so many type ,please call me immediately!
