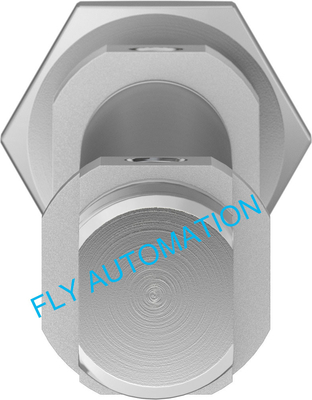

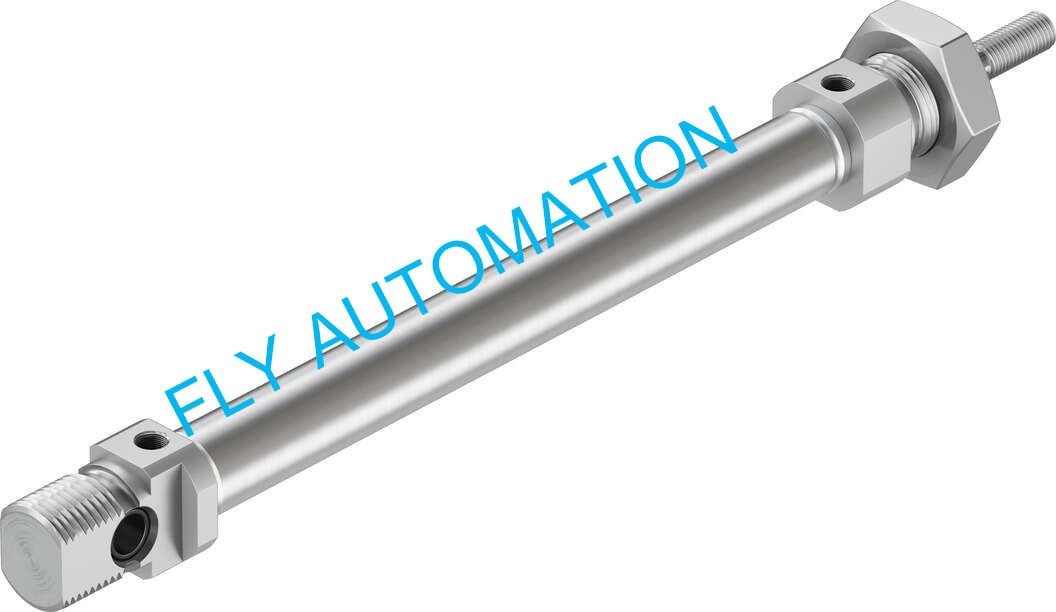

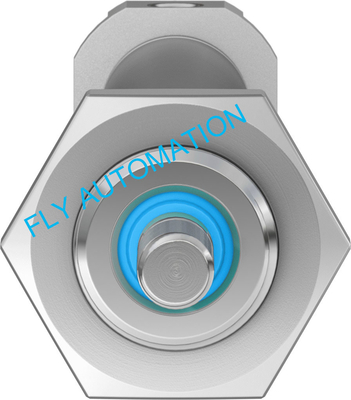

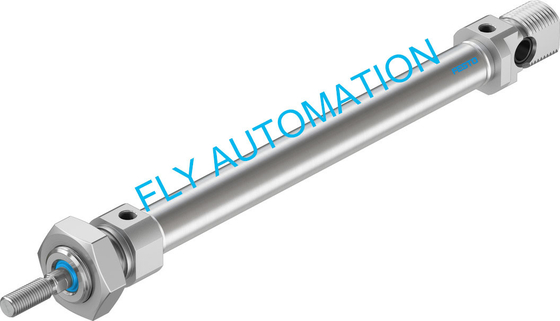

Double Acting Pneumatic Air Cylinders DSNU-12-100-P-A 19194 GTIN4052568003098

Double Acting Pneumatic Air Cylinders DSNU-12-100-P-A 19194 GTIN4052568003098

  • Double Acting Pneumatic Air Cylinders DSNU-12-100-P-A 19194 GTIN4052568003098
  • Double Acting Pneumatic Air Cylinders DSNU-12-100-P-A 19194 GTIN4052568003098
  • Double Acting Pneumatic Air Cylinders DSNU-12-100-P-A 19194 GTIN4052568003098
  • Double Acting Pneumatic Air Cylinders DSNU-12-100-P-A 19194 GTIN4052568003098
  • Double Acting Pneumatic Air Cylinders DSNU-12-100-P-A 19194 GTIN4052568003098
Double Acting Pneumatic Air Cylinders DSNU-12-100-P-A 19194 GTIN4052568003098
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DSNU-12-100-P-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD25-35
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 pcs per month
Contact Now
Detailed Product Description
Part No: 19194 Type: DSNU-12-100-P-A
GTIN: 4052568003098 Brand: FESTO
Material Piston Rod: High-alloy Stainless Steel Mode Of Operation: Double-acting
Highlight:

Male Thread Pneumatic Cylinder

,

Double Acting Air Cylinder

,

M6 Compact Air Cylinder

FESTO ISO cylinder DSNU-12-100-P-A 19194 GTIN4052568003098 Pneumatic Air Cylinders

About product

1.The debugging time is saved, and the buffer can best adapt to load and speed changes.

2.It has the same installation interface and the same technical data,The installation method of the cylinder sensor is different.

3.DSNU series is super durable and stable in performance.

4.The common points of all round cylinders are excellent working performance, long service life and quick and convenient.



Technical Data

Stroke 100 mm
Piston diameter 12 mm
Piston rod thread M6
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Conforms to standard CETOP RP 52 P ISO 6432
Piston-rod end Male thread
Design Piston Piston rod Cylinder barrel
Position detection Via proximity switch
Symbol 00991217
Variants Piston rod at one end
Mode of operation Double-acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cleanroom class Class 6 according to ISO 14644-1
Impact energy in end positions 0.07 J
Moving mass for 0 mm stroke 18.5 g
Additional moving mass per 10 mm stroke 2 g
Basic weight for 0 mm stroke 75 g
Additional weight per 10 mm stroke 4 g
Type of mounting With accessories
Pneumatic connection M5
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy Colourless anodised
Material seals NBR TPE-U(PU)
Material piston rod High-alloy stainless steel
Material cylinder barrel High-alloy stainless steel



Other stroke as follow

Type Order no GTIN Price
DSNU-12-10-P-A 19189 4052568003067 USD25-35
DSNU-12-15-P-A 1908255 4052568108366 USD25-35
DSNU-12-20-P-A 1908256 4052568108373 USD25-35
DSNU-12-25-P-A 19190 4052568003074 USD25-35
DSNU-12-30-P-A 1908257 4052568108380 USD25-35
DSNU-12-40-P-A 19191 4052568003081 USD25-35
DSNU-12-50-P-A 19192 4052568066963 USD25-35
DSNU-12-60-P-A 1908258 4052568108397 USD25-35
DSNU-12-80-P-A 19193 4052568066963 USD25-35
DSNU-12-100-P-A 19194 4052568003098 USD25-35
DSNU-12-125-P-A 19195 4052568066987 USD25-35
DSNU-12-160-P-A 19196 4052568066994 USD25-35
DSNU-12-200-P-A 19197 4052568009410 USD25-35



Sectional view

Double Acting Pneumatic Air Cylinders DSNU-12-100-P-A 19194 GTIN4052568003098



Dimensions

Double Acting Pneumatic Air Cylinders DSNU-12-100-P-A 19194 GTIN4052568003098




After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.



FESTO's profile cylinder and pull rod cylinder are standard cylinders conforming to ISO15552 With self-adjusting throttle terminal position buffer.



There are so many type ,please call me immediately!
