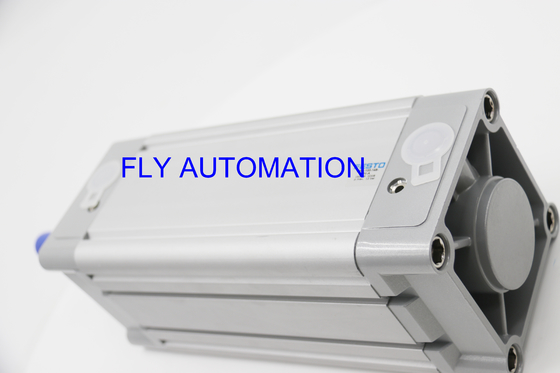

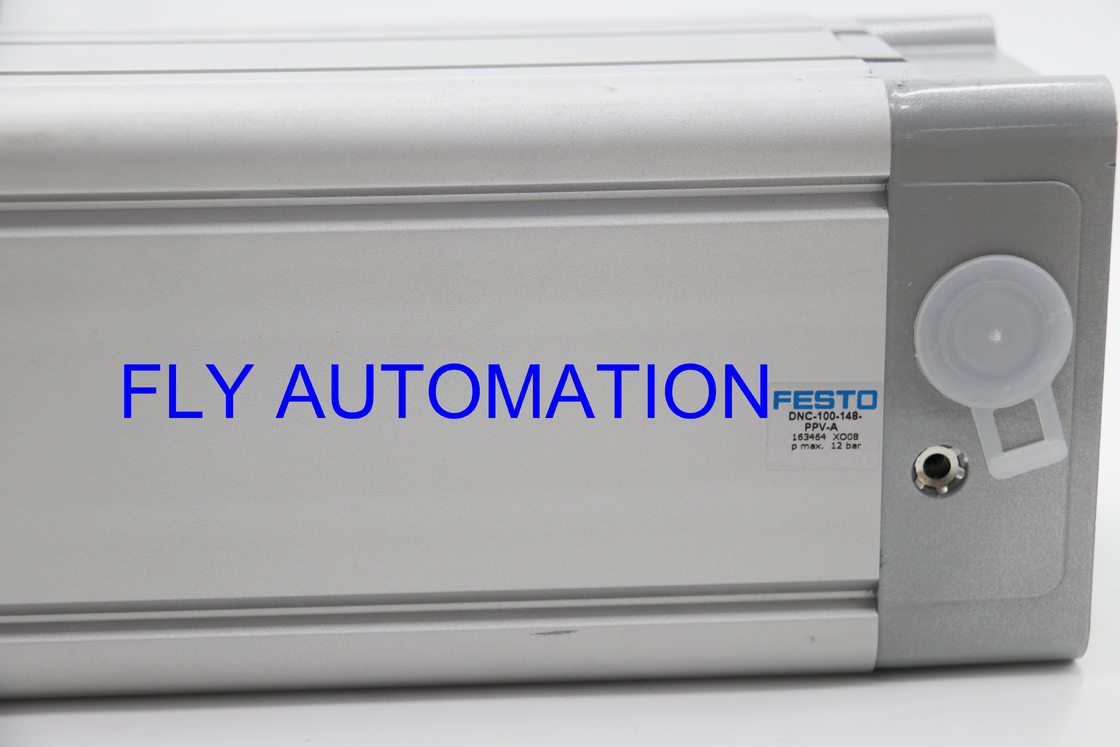

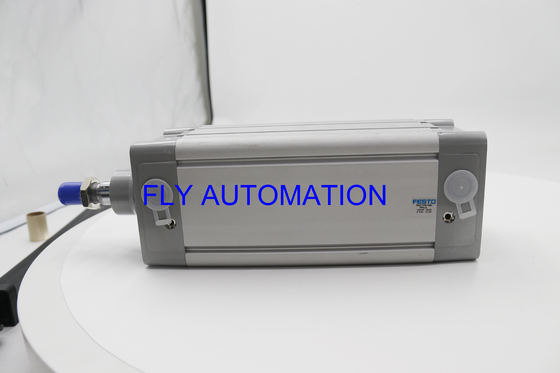

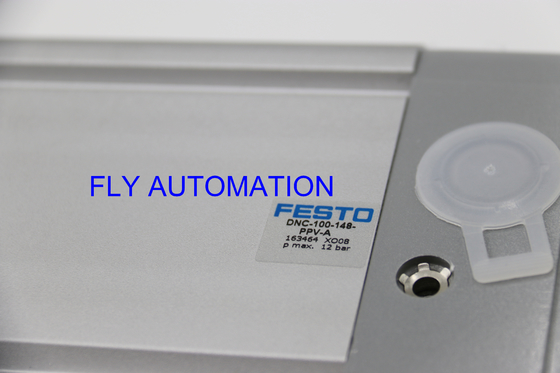

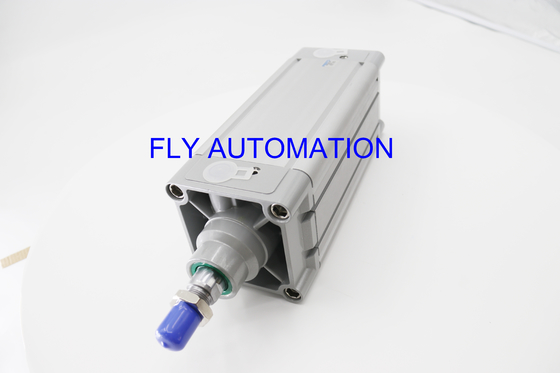

Double Acting FESTO ISO Pneumatic Air Cylinders DNC-100-148 -PPV-A 163464

Double Acting FESTO ISO Pneumatic Air Cylinders DNC-100-148 -PPV-A 163464

  • Double Acting FESTO ISO Pneumatic Air Cylinders DNC-100-148 -PPV-A 163464
  • Double Acting FESTO ISO Pneumatic Air Cylinders DNC-100-148 -PPV-A 163464
  • Double Acting FESTO ISO Pneumatic Air Cylinders DNC-100-148 -PPV-A 163464
  • Double Acting FESTO ISO Pneumatic Air Cylinders DNC-100-148 -PPV-A 163464
  • Double Acting FESTO ISO Pneumatic Air Cylinders DNC-100-148 -PPV-A 163464
Double Acting FESTO ISO Pneumatic Air Cylinders DNC-100-148 -PPV-A 163464
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DNC-100-148 -PPV-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD300-350
Packaging Details: Plastic bag, Carton
Delivery Time: 5-7working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 pcs per month
Contact Now
Detailed Product Description
Type: DNC-100-148 -PPV-A Part No: 163464
Brand: FESTO Weight: 5113 G
Mode Of Operation: Double-acting Material Cylinder Barrel: Wrought Aluminium Alloy Smooth Anodised
Highlight:

FESTO ISO Cylinder

,

163464 Pneumatic Air Cylinders

,

Aluminium Alloy Double Acting Pneumatic Cylinder

FESTO ISO cylinder DNC-100-148 -PPV-A 163464

About product

1.The modern, consistent design saves up to 11% more space compared to ordinary standards-based cylinders, providing a significantly more compact system structure.

2.An extensive range of accessories enables the cylinder to be installed virtually anywhere.

3.The widest range of variants on the market offers the ideal cylinder DNC for any application.



Technical Data

Stroke 3 mm ... 2000 mm
Piston diameter 100 mm
Piston rod thread M20x1.5
Cushioning Pneumatic cushioning, adjustable at both ends
Mounting position optional
Conforms to standard ISO 15552
Piston-rod end Male thread
Design Piston Piston rod Profile barrel
Position detection Via proximity switch
Symbol 00991235
Variants Piston rod at one end
Operating pressure 0.06 MPa ... 1.2 MPa
Operating pressure 0.6 bar ... 12 bar
Mode of operation Double-acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Cushioning length 32 mm
Basic weight for 0 mm stroke 4653 g
Additional weight per 10 mm stroke 115 g
Type of mounting Via female thread With accessories
Pneumatic connection G1/2
Note on materials RoHS-compliant
Material cover Die-cast aluminium Coated
Material seals TPE-U(PU)
Material piston rod High-alloy steel
Material cylinder barrel Wrought aluminium alloy Smooth anodised



General technical data

Double Acting FESTO ISO Pneumatic Air Cylinders DNC-100-148 -PPV-A 163464

There are many models. Please hurry to me!
